3. Press the “DISPLAY” button on the remote control while aiming at the “PRIMARY” monitor. The Information OSD will be shown at
top left side of the screen.
Monitor ID: Displays the ID number of the current monitor within the daisy chain.
Target ID: Displays the ID number of the monitor that to be controlled via daisy chain from the current monitor.
Press the “+” or “-” buttons to change the “Target ID” to show the ID number of the monitor to be controlled. To control the entire daisy chained
monitors simultaneously, select “ALL” as the “Target ID.”
4. Use the wireless remote controller to control the “SECONDARY” monitor while aiming at the “PRIMARY” monitor.
The “MENU OSD” will appear on the selected target monitor.
NOTE: If the “ID No.” mode select OSD is showing, press the “DISPLAY” button on the remote control while pointing at the “PRIMARY”
monitor to clear this OSD.
HINT: If you lost control due to the incorrect setting of “IR CONTROL”, pressing the “DISPLAY” button on the remote control for 5 or
more seconds will reset the “IR CONTROL” menu to “NORMAL” function.
WIRED REMOTE CONTROL FUNCTION

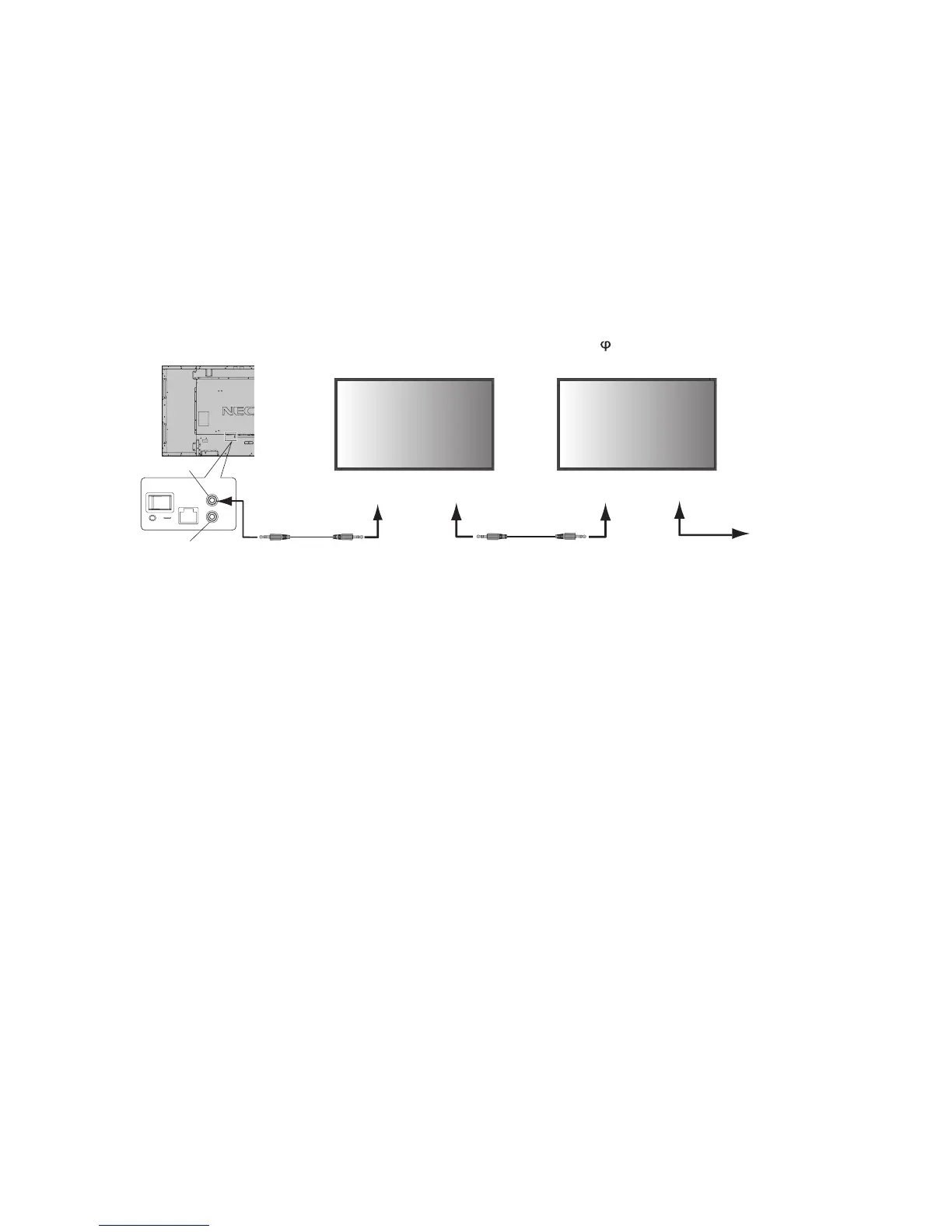

You can control this monitor by connecting REMOTE IN/OUT with Stereo Mini plug cable (3.5 ).
Remote control cable
Remote IN
IN
OUT
MultiSync
MultiSync
Remote control cable
Remote OUT Remote IN Remote OUT
MultiSync
NOTE: Turn off the main power switch before connect/disconnect Stereo Mini plug cable.
NOTE: Do not use this connector unless specifi ed.

NEC MultiSync V422 Specifications

General

Pixel pitch	0.48 x 0.48 mm
Response time	10 ms
Display diagonal	42 \
Display brightness	370 cd/m²
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1300:1
Display number of colors	16.78 million colors
Supported graphics resolutions	720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
3D	No
Separate H/V sync	Yes
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Viewable size, vertical	523.3 mm
Viewable size, horizontal	930.2 mm
DVI-D ports quantity	2
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	44 mm
Bezel width (bottom)	43 mm
Panel mounting interface	300 x 300 mm
RMS rated power	10 W
Cables included	VGA
Remote control type	IR
Power consumption (standby)	2 W
Power consumption (typical)	155 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	206 mm
Package width	1142 mm
Package height	703 mm
Package weight	27000 g

Weight and Dimensions

Depth	105.6 mm
Width	1022.9 mm
Height	613.5 mm
Weight	22000 g
Depth (with stand)	330 mm
Height (with stand)	651.2 mm
Weight (with stand)	23800 g
