- 13 -

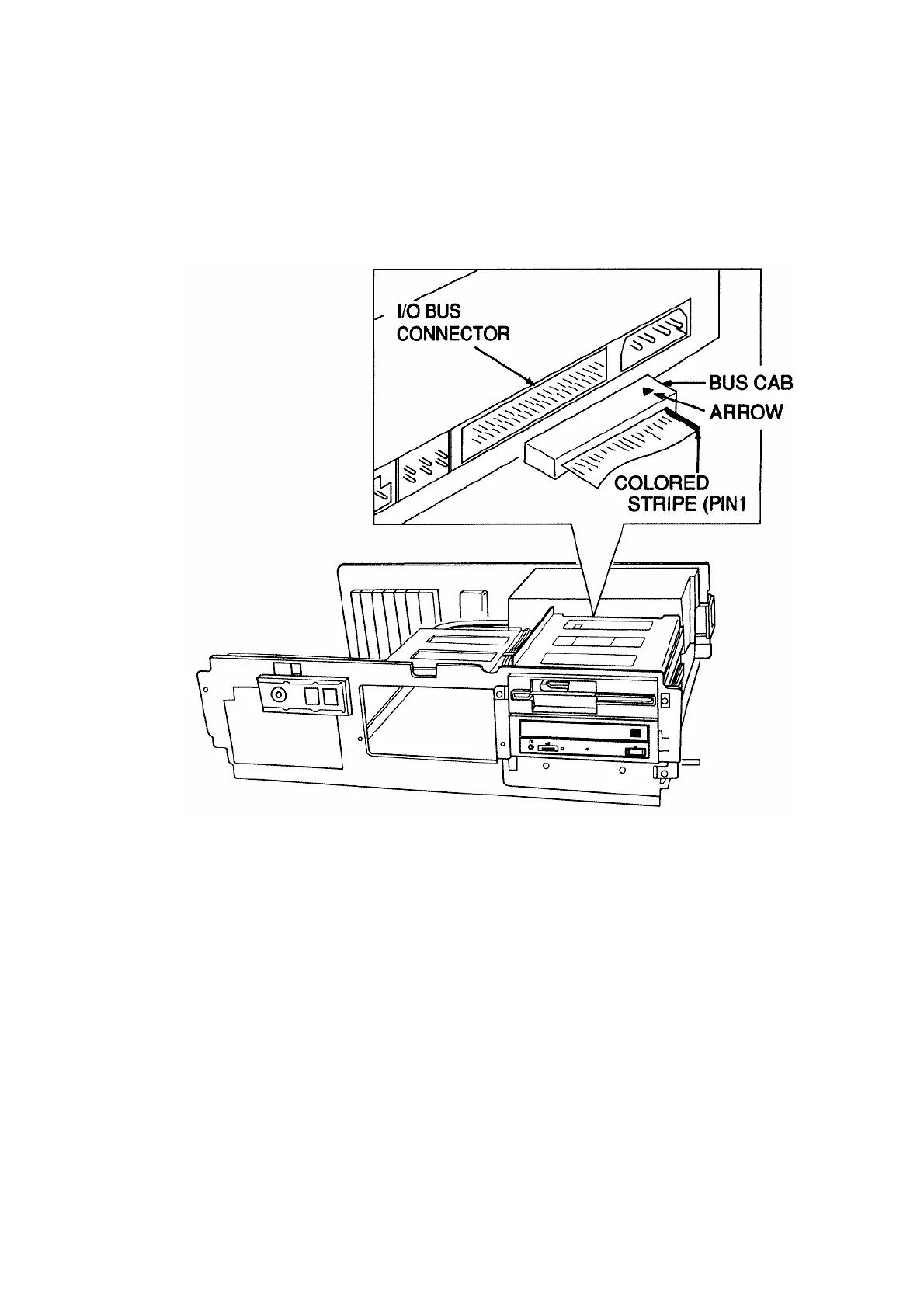

7. Connect the I/O BUS connector on the DVD R/RW drive and the IDE
connector.
Connect the colored stripe side of the cable to the side marked with the
arrow .
8. Slide the disc drive and DVD R/RW drive into the computer.
9. Replace the mounting clips, keeper bracket, and computer cover.
