NEC Display Solutions of America, Inc.
U310W Installation Guide
Desktop and Ceiling Mount v1.1
www.necdisplay.com U310W Page 7 of 8

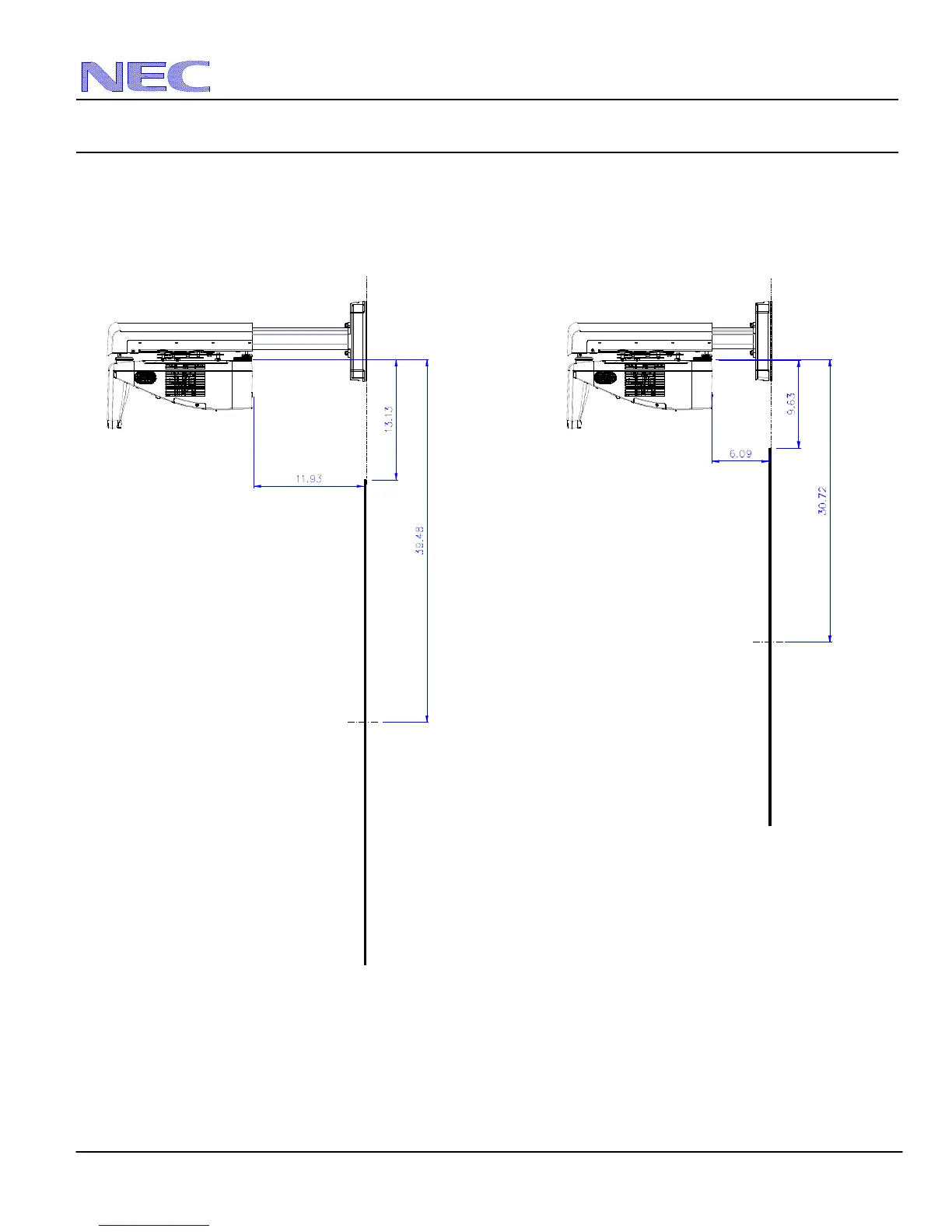

Optional Wall Mount Dimensions (Model #: NP01WK1)
Note: The NP01WK1 wall mount can accommodate screen sizes of 77” – 100” diagonally based on the minimum and maximum
throw distances shown below.
Maximum Throw Capability
Minimum Throw Capability
Note: The drawings above refer to the throw capability (projector distance “A” from screen) and their respective dimensions “B” and
“D”. The screen positions are not drawn to scale.
