NEC OPS-DRD - External Connections

OPS-DRD USERS MANUAL
v2014-11-21
12 | P a g e
External Connections
Bottom of Card (BOC)
The OPS-DRD media player provides a single BOC connector for the purpose of mating with an
OPS compatible display or docking station. This 80-pin connector provides connectivity for the
following interfaces:
a. HDMI Video
b. Analog Stereo Audio
c. UART
d. 3 x USB 2.0

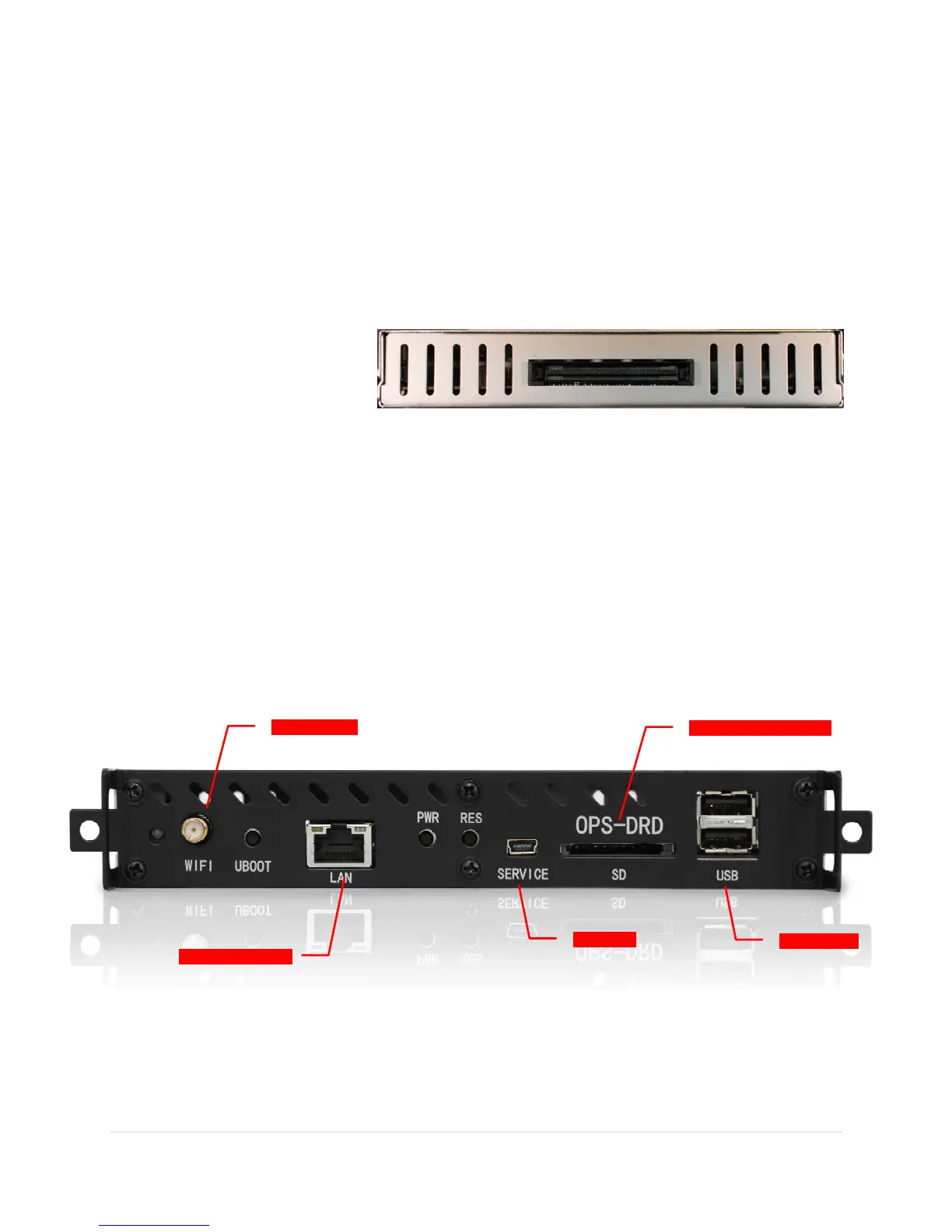

OPS-DRD BOC Connector
Top of Card (TOC)
The OPS-DRD media player provides several TOC connectors for the purpose of extending the
capabilities of the unit. The front face location of these connectors is shown below:
WiFi
1000BT SD
USB
RESET
SERVICE
802.11 WLAN
ETHERNET PORT
MINI-USB
USB PORTS
SD/SDHC CARD SLOT
