9

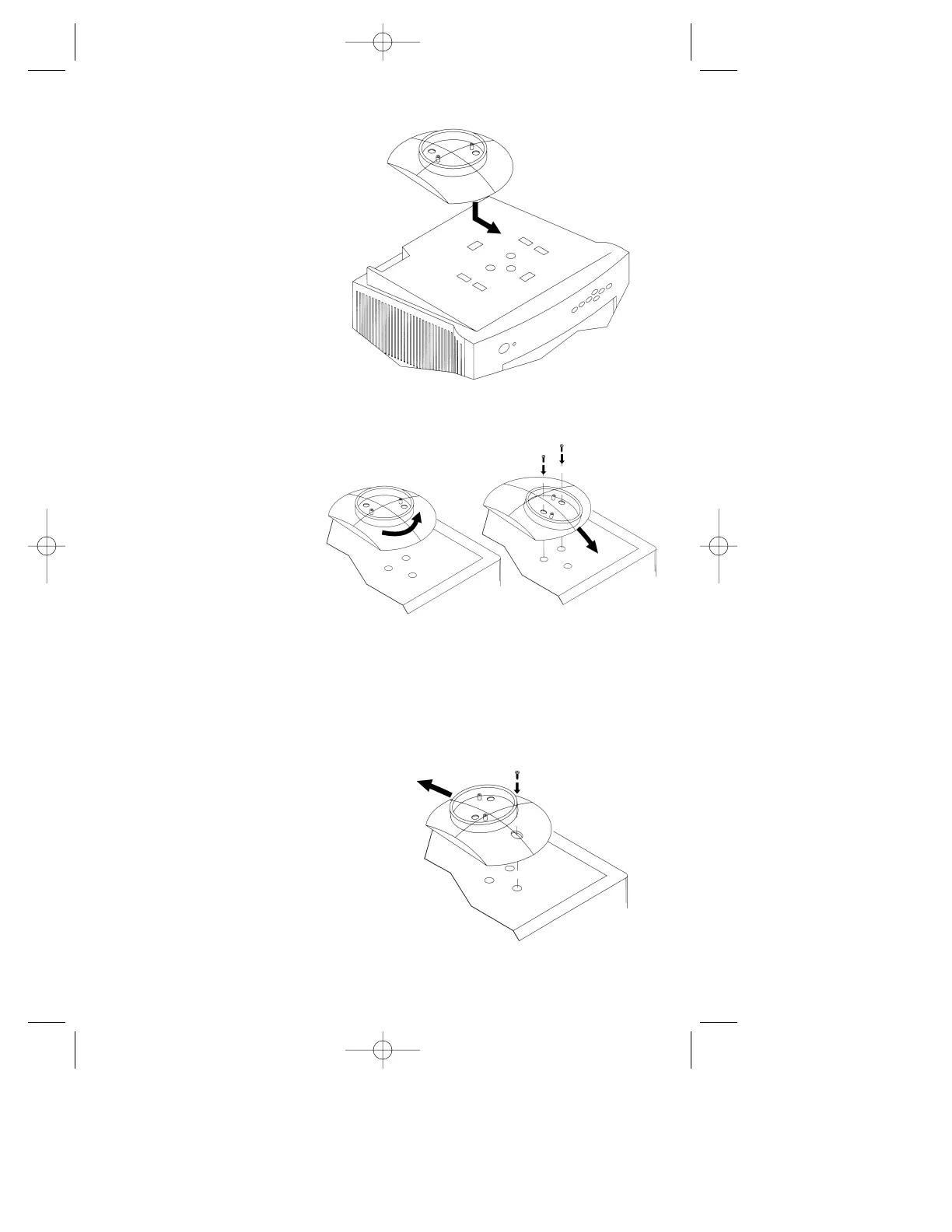

Step 5 After the adapter plate
has been attached to
the base, snap the base
assembly to the monitor.
To accomplish this, position
all the locking tabs on
the base so they mate
with the holes in the
monitor. Slide the base
assembly in place as
shown in Figure 4D.
Figure 4D
Step 6 Using two of the
screws that were
removed in Step 2,
attach the adapter
plate assembly to
the monitor. To
accomplish this, it
will be necessary
to turn the adapter
plate fully counter-
clockwise while sliding it
forward as shown in Figure 4E. This will allow you to install the
two rear screws.
Figure 4E
Step 7 Using the remaining screw
that was removed in Step 2,
complete attachment of the
adapter plate assembly. To
accomplish this, it will
be necessary to slide
the adapter plate backwards
as shown in Figure 4F.
Figure 4F
203 Eng Fr Cndn manual 12/21/98 11:20 AM Page 13
