Step 2 Connect one end of the supplied USB cable to the USB input jack
on the rear of the IntelliBase
™
(Detail B) and the other end to the
USB output jack of your computer system (Detail A) as shown in
Figure 6.

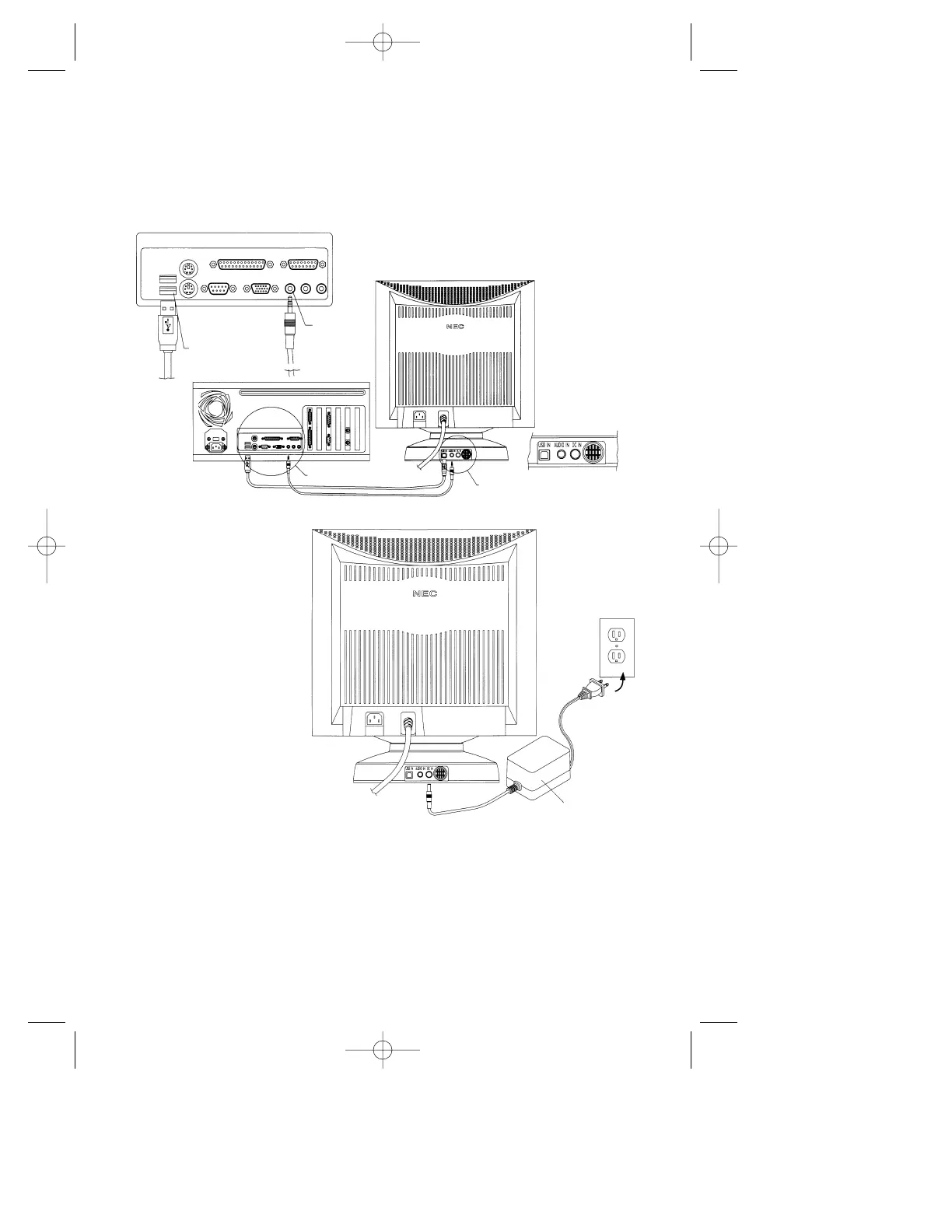

Figure 6 – REAR VIEW
Step 3 Connect one
end of the
supplied
AC adapter
to the DC
input jack
on the rear
of the
IntelliBase
and the other
end into any
110-120V
AC wall outlet as
shown in Figure 7.
NOTE: The Intellibase front green LED power indicator should be on
after this step.
Step 4 Reconnect your MultiSync
®
monitor to your computer system as
shown in the monitor user’s manual.
Figure 7
USB SERIES B
CONNECTOR
AUDIO
LINE
OUTPUT
SEE DETAIL A
DETAIL A
DETAIL B
SEE DETAIL B
AC ADAPTER
