1. Tension dial (page 18)
2. Take-up lever
3. Reverse sewing lever (page 25)
4. Thread cutter (page 24)
5. Sewing table and accessory box
(page 6)
6. Stitch width dial (page 20)
7. Bobbin winder stopper (page 8)
8. Three needle position dial
(page 21)
9. Stitch length dial (page 20)
10. Pattern selector dial (page 20)
11. Buttonhole lever (page 33)
12. Needle threader
(depends on models) (page 13)
13. Needle plate (page 49)
14. Needle clamp screw (page 14)
15. Presser foot (page 16)
16. Horizontal spool pin (page 11)
17. Bobbin winder spindle (page 8)
18. Second spool pin hole (page 47)
19. Handwheel
20. Buttonhole balance control dial
(page 35)
21. Power switch (page 4)
22. Power cord (page 4)
23. Bobbin thread guide (page 8)
24. Adjust presser foot
pressure(page 7)
25. Upper thread guide (page 11)
26. Handle
27. Presser foot lifter (page 6)
28. Drop feed lever

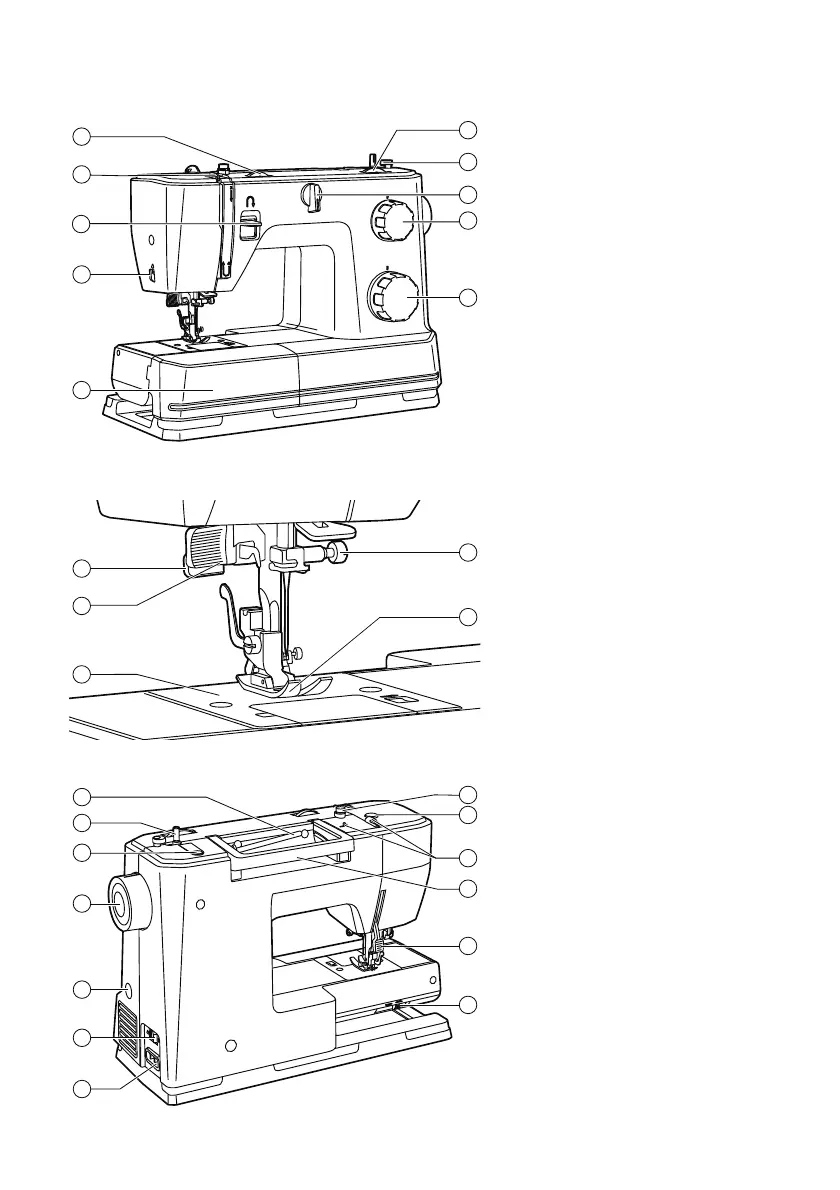

Principal parts of the machine
