Introduction:
Infrared extender for control of equipment. Ideal for control of equipment in a closed closet. Complete with
3 infrared sensors to control 3 devices such as DVD, VCR, STB, SAT, Home Cinema Receiver, etc. Extra
IRreceiverformoreexibility.

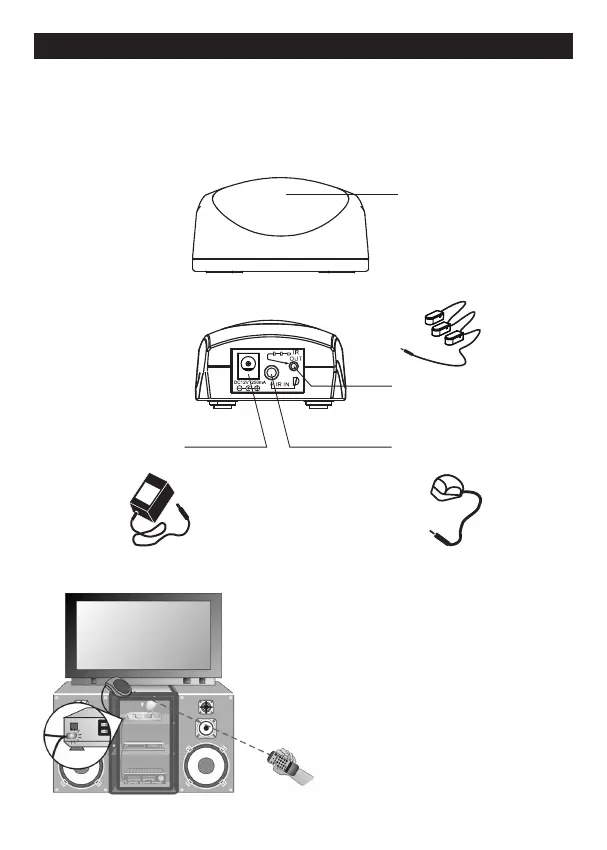

Description:
Front:
Infrared receiver
Back:
DC 12V,
PowerSupply
IRextensioncable
with3IReyes
IR receiving sensor
Application 1:
1. ConnecttheIRextensioncabletothe
infrared receiver as shown in the picture.
2. PlacetheIReyespreciselyinfrontoftheIR
sensors of the equipment.
3. Connectthepowersupply.
