en Rails
28

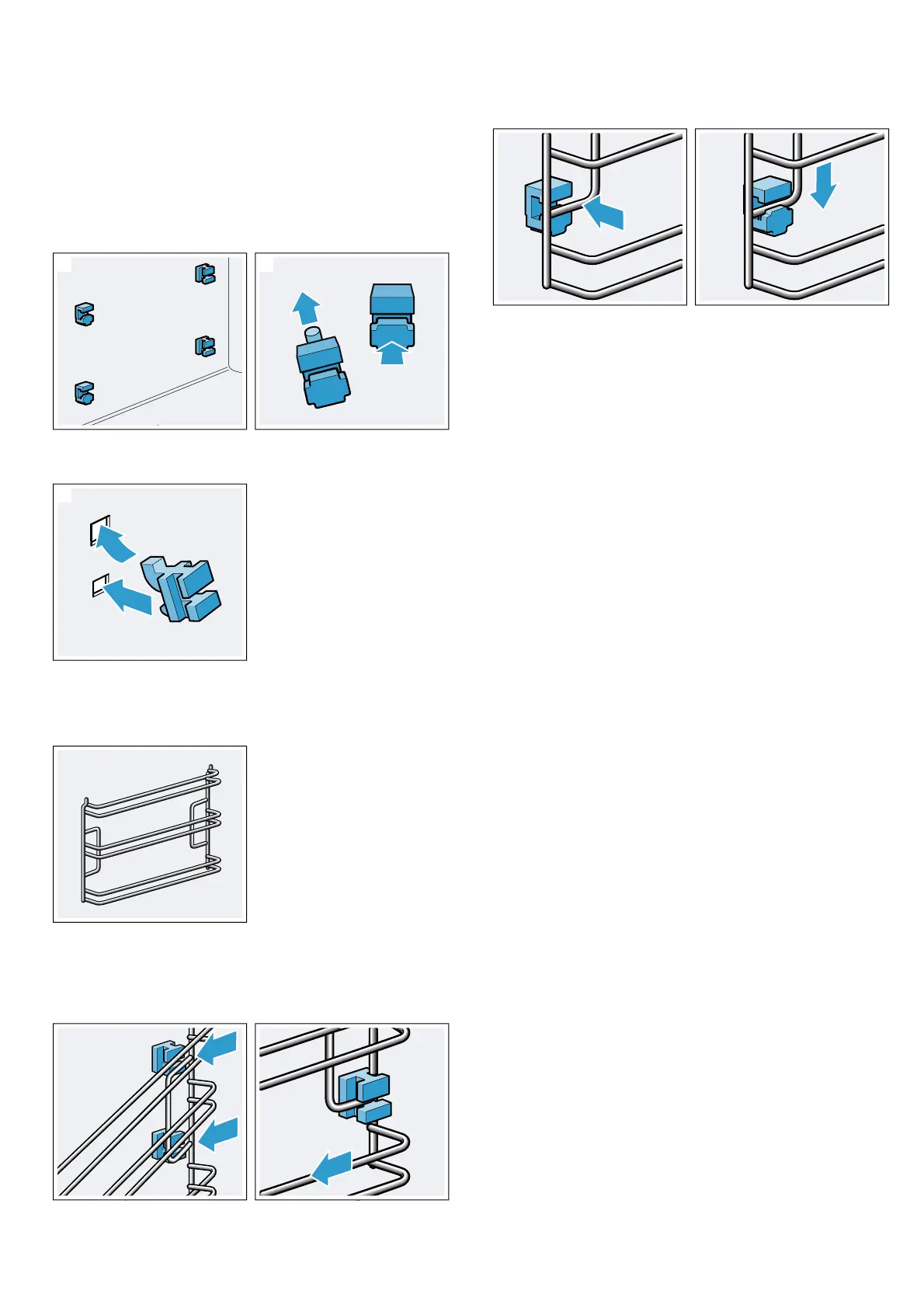

Inserting the holders
If the holders fall out when you remove the rails, these
must be re-inserted.
1. The holders at the front differ from those at the rear
(fig. !).
2. Use the hook to mount the front holder at the top
into the round hole ‚, set it at a slight incline, attach
it at the bottom, and straighten it ƒ (fig. ").
3. Use the hook to attach the rear holder into the upper
hole
‚ and push it into the lower hole ƒ (fig. #).
Attaching the rails
When hanging the rails, ensure that the sloping edge is
at the top of the rail.
The rails fit both the left and right sides.
1. Hold the rear of the frame at an angle, and mount it
at the top and bottom ‚ (fig. !).
2. Pull the rail forwards (fig. ").
3. Then fold it forwards and insert it (fig. #)
4. and push it downwards (fig. $).
D
E
21
D
E
2
D
D
1
