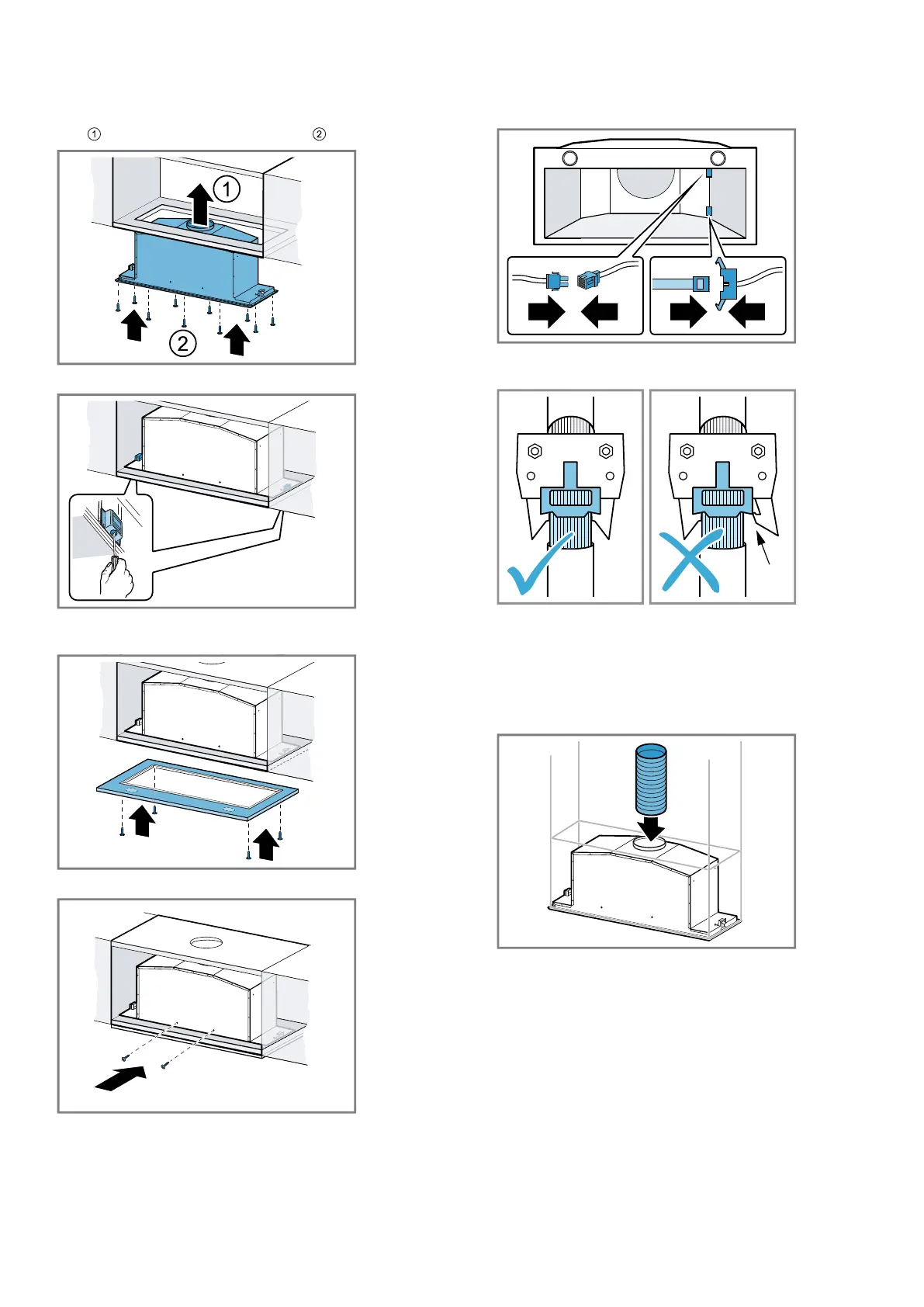

Installing the appliance
1.
Insert the appliance into the opening in the fitted
unit
and screw it to the fitted unit .
2.
Tighten the fastening screws.
3.
Attach the frame and screw it to the appliance from
below.
4.
Secure the frame and the appliance with screws.
If the screws are not accessible from the exterior,
the screws can also be fitted from the interior.
5.
Restore the control panel cabling and the cabling
for the lighting.
The plug can only be inserted into one position.
6.
Ensure that the connector has engaged correctly.
7.
Fit the grease filters.
To avoid causing damage, do not bend the grease
filters.
8.
Attach and close the filter cover.
Establishing the exhaust air connection
1.
Secure the exhaust pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
Establishing the connection for the circulated
air
The standard recirculation kit is available as an access-
ory.
1.
Secure the exhaust pipe to the air pipe connector.
