en Installation instructions
18

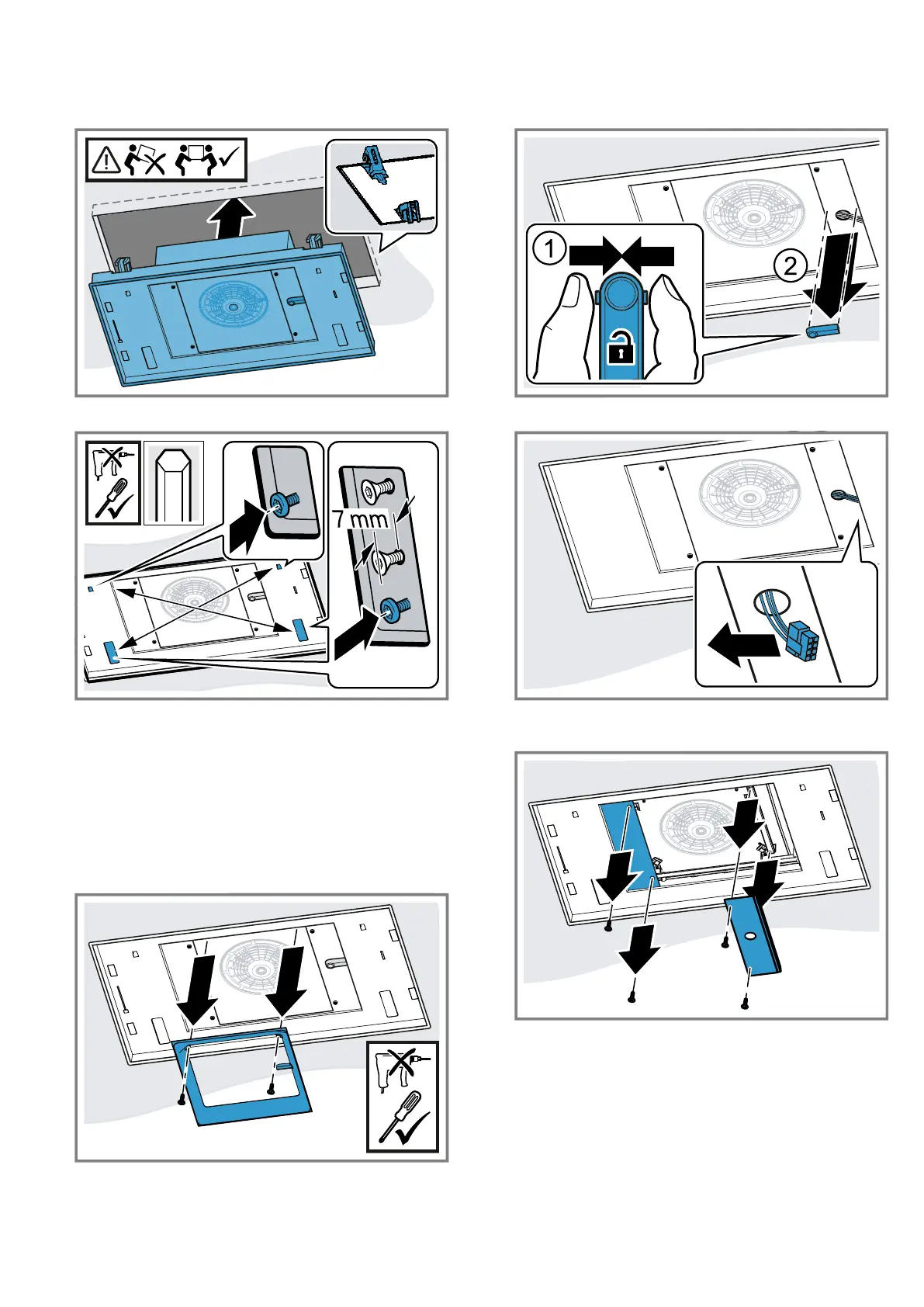

1. Insert the appliance into the cut-out until you hear
the mounting brackets engage.
2. Carefully screw in diagonally opposite screws.
Tighten the screws one at a time so that the appli-
ance is not wedged in the cut-out.
3. Note:To ensure that the appliance is not damaged,
do not overtighten the screws.
Carefully tighten screws in succession until the ap-
pliance is flush-mounted on the ceiling.
Connecting the appliance
1. Undo the screws on the top frame assembly using a
screwdriver and remove the top frame assembly.
2. Press together the cable duct at the sides and re-
move it.
3. Disconnect the cable at the appropriate point.
4. Loosen the screws on the side covers and remove
the covers.
