en Installation instructions
22

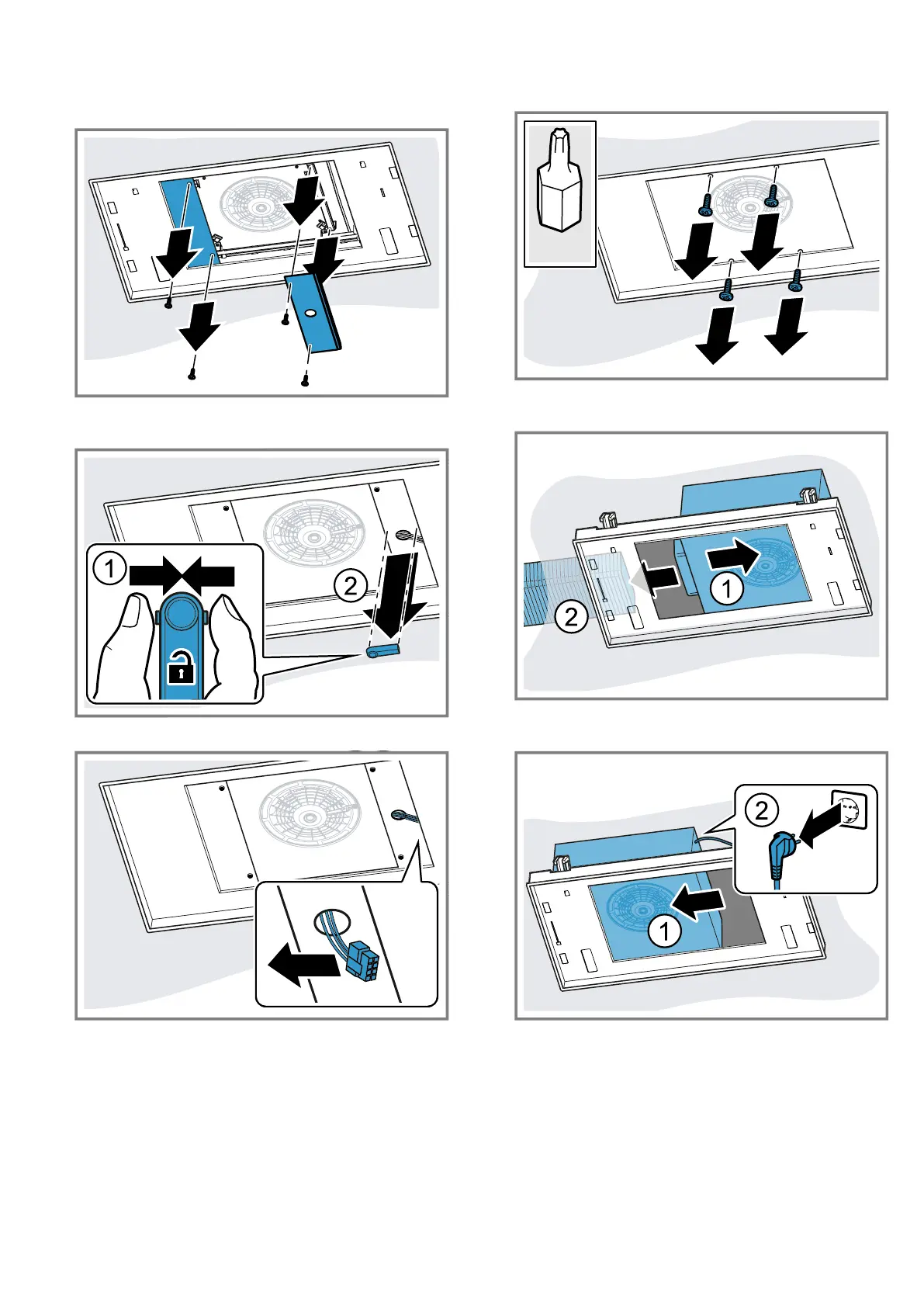

7. Loosen the screws on the side covers and remove
the covers.
8. Press together the cable duct at the sides and re-
move it.
9. Disconnect the cable at the appropriate point.
10. Undo the opposite screws to loosen the fan box.
11. Push the fan box to the side and release the pipe-
work.
12. Push the fan box to the other side and pull out the
mains plug.
