RISER STABILITY AND THRUST FORCE
2/05
These are for general guidelines only under normal operating conditions. The manufacturer assumes no liability for
specific purposes or damage. Normal product warranty and disclaimer applies.
24” DIA. X 18” DEPTH OF CONCRETE
26” DIA. X 14” DEPTH OF CONCRETE
28” DIA. X 12” DEPTH OF CONCRETE
30” DIA. X 10” DEPTH OF CONCRETE
32” DIA. X 8” DEPTH OF CONCRETE

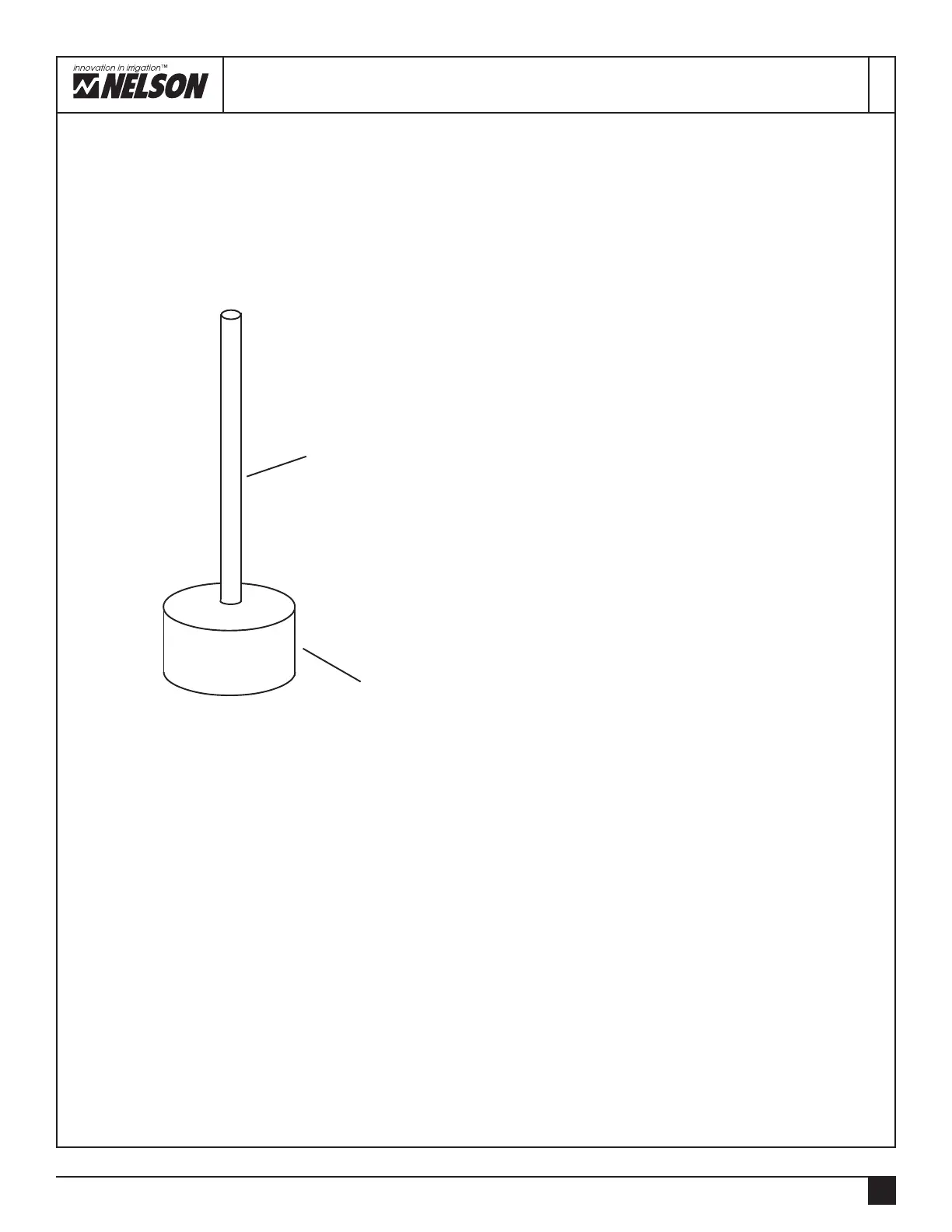

TYPICAL CONCRETE THRUST BLOCK
FOR 0.9” NOZZLE AT 60 PSI (69 LBS THRUST)
ON A 10 FT. HIGH RISER.
RISER CONFIGURATION
