Laser wavelength 630–670 nm
Laser power < 1 mW
Battery type 2 x AAA 1.5 V batteries
Available measurement units m/ft/in/ft+in
Dimensions 100 x 35 x 23 mm
Weight 58 g
*Measurement error may increase in unfavourable conditions, such as too strong sunlight,
measurement towards surface that poorly reects light (e.g. black, matt surfaces) or too high ambient
temperature. Error values specied in parentheses are for measurements in poor conditions.

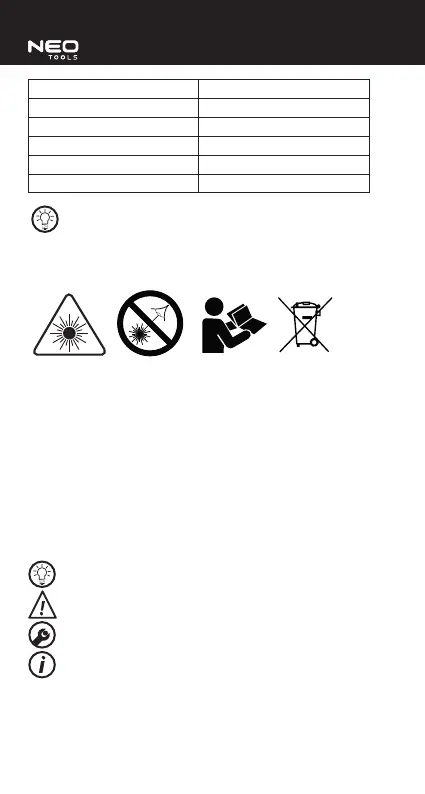

EXPLANATION OF USED SYMBOLS
1. Caution, laser radiation!
2. Caution, laser radiation – do not look in the laser beam
3. Read the instruction manual, observe warnings and safety conditions therein.
4. Segregated waste collection
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the drawing pages
of this manual:
1. Touch screen
2. Measurement button
3. Switch
4. Tripod mount thread
5. Battery lid
*Dierences may appear between the product and drawing
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
Battery replacement
• Press the lock catch to remove the battery lid (4).
• Insert 2 new AAA batteries, observe correct polarity.
• Close the battery lid (4).
4
Batteries may leak, set on re or explode when heated to high
temperature or short-circuited. Do not heat the device to temperature above
50°C, do not keep it in a car in hot and sunny days.
Store batteries beyond reach of children. Do not leave batteries
within reach of children to prevent from swallowing.
Guidelines for the device power source
• Replace batteries with new ones when batteries are empty.
• Remove batteries when the device will not be used for a long time.
• Do not use old and new batteries together. Mixing new and old batteries
may cause their damage or leakage and consequently damage of the device.
• Do not dispose of the batteries with household wastes, do not throw in re
or water. Damaged or worn out batteries should be properly recycled in
accordance with applicable directive for battery disposal.
OPERATING TOUCH SCREEN
Swiping left/right allows to change function:
• single measurement,
• indirect height measurement,
• indirect, three point height measurement,
• area measurement,
• volume measurement,
• automatic measurement of distance in horizontal plane,
• automatic height measurement.
