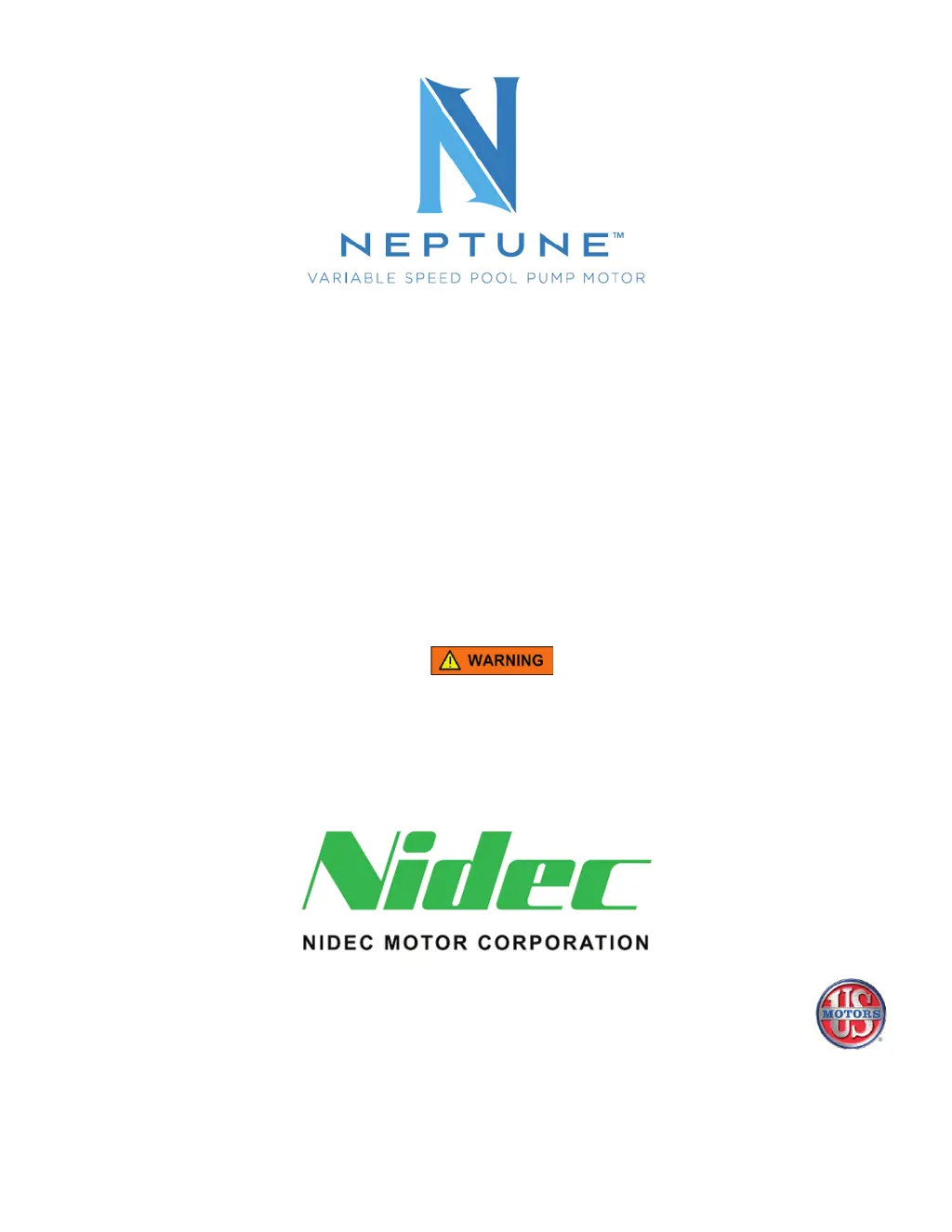

Installation and Operation Manual
Model: 1.25HP
Programmable Pool Pump Motor/Control
This product does NOT provide a Safety
Vacuum Release System (SVRS).
Save this instruction manual for future reference.
Part #: M018212890000 Rev Date: November 5, 2019

Table of Contents

Questions and Answers

  • R
    Ryan SimsAug 17, 2025
    What to do if my Neptune 1.25HP motor stalls during operation?
    • S
      Sandra EvansAug 17, 2025
      If your Neptune Swimming Pool Pump motor stalls, there could be several reasons: * An overloaded motor: Disconnect electrical power and check if the pump rotates freely. * Low voltage: Ensure the motor voltage under load matches the nameplate requirements at the conduit box connection terminals. * Breaker trip: A current overload might be tripping the breaker. A qualified electrician should verify that the breaker's rating is properly sized for the motor's current rating, according to the National Electrical Code.
  • S
    Susan MorganAug 19, 2025
    Why is my Neptune Swimming Pool Pump motor not starting?
    • C
      Christopher LoweAug 20, 2025
      If your Neptune Swimming Pool Pump motor isn't starting, it could be due to: * Incorrect voltage: Verify the motor voltage at the terminals matches the nameplate voltage requirements and select the correct voltage position on the Voltage Selection Switch. * Improper terminal connections: Turn OFF the power and double-check the connections, referring to the terminal connection section of this manual.
  • J
    Joseph AyalaAug 22, 2025
    Why is my Neptune 1.25HP Swimming Pool Pump motor vibrating or excessively noisy?
    • M
      Michael WalshAug 22, 2025
      Excessive noise or vibration in your Neptune Swimming Pool Pump motor can be caused by: * The pump itself: Ensure the electrical power is OFF before inspecting. Check that the pump is properly connected to the motor shaft, examine the pump impeller for damage, and clear any foreign objects from inside the pump. * The motor base: Make sure the motor base (if applicable) isn't cracked and that all four mounting bolts are tightened securely.
  • D
    Danielle HillAug 25, 2025
    What does E 16 – Motor Stalled error mean on my Neptune 1.25HP Swimming Pool Pump?
    • D
      Danielle GordonAug 26, 2025
      The E 16 – Motor Stalled error on your Neptune Swimming Pool Pump indicates that dirt or debris has accumulated in or around the motor, causing the impeller to jam. To solve this, press the Start/Pause button to clear the fault from the LCD display. The retry sequence will start over. Then, press any Speed button to restart the motor. If the fault continues to occur after a maintenance inspection, contact your pool professional or a qualified electrician for service.
  • K
    Katie SantiagoAug 28, 2025
    What to do if my Neptune 1.25HP shows E 0 – Overcurrent (HW) error?
    • J
      jonesshirleyAug 28, 2025
      If your Neptune Swimming Pool Pump displays an E 0 – Overcurrent (HW) error, press the Start/Pause button to clear the fault from the LCD display. Then, press any Speed button to restart the motor. If the fault continues to occur, contact your pool professional or a qualified electrician for service.
  • S
    Stephanie ReedAug 30, 2025
    What to do if my Neptune 1.25HP shows E 5 – Open Phase error?
    • M
      Melissa BurtonAug 30, 2025
      If your Neptune Swimming Pool Pump shows an E 5 – Open Phase error, press the Start/Pause button to clear the fault from the LCD display. The retry sequence will start over. Then, press any Speed button to restart the motor. If the fault continues to occur after verifying the wire connections, contact your pool professional or a qualified electrician for service.
  • F
    fhartSep 2, 2025
    What to do if my Neptune 1.25HP shows E 8 – MC EE Error?
    • A
      Ashley KentSep 2, 2025
      If your Neptune Swimming Pool Pump displays an E 8 – MC EE Error, press the Start/Pause button to clear the fault from the LCD display. The retry sequence will start over. Then, press any Speed button to restart the motor. If the fault continues to occur after verifying the wire connections, contact your pool professional or a qualified electrician for service.
  • V
    Veronica SimmonsSep 4, 2025
    What to do if my Neptune 1.25HP shows E 11 – MC Comm Lost error?
    • C
      Carrie ThomasSep 5, 2025
      If your Neptune Swimming Pool Pump shows an E 11 – MC Comm Lost error, press any Speed button to restart the motor. If the fault continues to occur after verifying the wire connections, contact your pool professional or a qualified electrician for service.
  • A
    ann10Sep 7, 2025
    Why Neptune 1.25HP Swimming Pool Pump motor does not come up to full speed?
    • A
      Abigail EstradaSep 7, 2025
      If your Neptune Swimming Pool Pump motor doesn't reach full speed, it might be due to low voltage. Verify that the motor voltage under load at the terminals matches the nameplate voltage requirements.
  • H
    Heather GonzalezSep 12, 2025
    What to do if my Neptune 1.25HP shows E 12 – UI Key Stuck error?
    • J
      johnwilliamsSep 12, 2025
      If your Neptune Swimming Pool Pump displays an E 12 – UI Key Stuck error, press the Start/Pause button to see if you can release it. If the fault continues to occur after verifying the wire connections, contact your pool professional or a qualified electrician for service.

Summary

Important Safety Information

About the Neptune 1.25 HP Pool Pump

Product Features

Lists the key technical specifications and capabilities of the pump.

Electrical Requirements

Input Line Voltage

Details the acceptable input voltage range and performance.

Input Line Current

Specifies the full load current for different voltage inputs.

Input Power Factor

Mentions the power factor range and absence of correction circuit.

Rated Output Specifications

States the motor's horsepower, speed, and torque ratings.

Agency Approvals and Standards

Safety Standards

Lists relevant safety standards and their descriptions.

Electromagnetic Compatibility (EMC)

Lists EMC standards applicable to the equipment.

Installation Instructions

Protecting Against Heat

Provides guidance on shading the motor and ensuring ventilation.

Protecting Against Dirt

Advises on keeping the motor and area clean to prevent issues.

Protecting Against Moisture

Details measures to protect the motor from water and moisture.

Preparing Motor for Operation

Outlines pre-operation checks and required tools.

Hardware Protection

Fuse Protection

Explains the unit's fuse protection and its non-serviceable nature.

Inrush Current Protection

Details the inverter's inrush current limiting capabilities.

Mechanical Requirements

Connection Specifications

Describes input power and control signal conduit connections.

Environmental Requirements

Environmental Operating Ranges

Specifies operating and storage temperature and humidity ranges.

Environmental Protection Rating

Mentions the IPX5 rating for water ingress protection.

Pump Control via User Interface

User Interface Navigation Overview

Explains the functions of UI buttons in different modes.

Quick Start Guide

Setting the Time of Day

Step-by-step instructions for setting the current time.

Configuring Daily Run Schedules

Guide for programming the pump's daily operational timers.

User Interface Button Navigation

Locking the Keypad

Instructions on how to lock the control panel to prevent accidental use.

Keypad Unlock Procedure

Operational States Explained

Describes the different operational states of the motor.

Menu Tree Overview

Standard Settings Menu Structure

Outlines the parameters configurable under Standard Settings.

Configuring Pool Pump Settings

Time of Day Configuration

Details how to set the pump's time of day.

Time Format Selection

Explains how to select between 24-hour and 12-hour time display.

Priming Duration Setup

How to set the duration for the pump's priming stage.

Priming Speed Setup

How to set the speed used during the priming stage.

Temperature Unit Selection

How to choose between Fahrenheit and Celsius for temperature display.

Low Temperature Monitor Setup

Configuration for the low temperature monitoring feature.

Remote Control Configuration

How to enable or disable external controller operation.

Node ID Configuration

Setting the Node ID for communication and controller priority.

Reset To Factory Defaults

Procedure to restore all settings to factory defaults.

Timer Programming (Timers 1-7)

Overriding Pump Timers

Timer Override in Run Mode

How to temporarily change speed while the pump is running.

Timer Override in Standby Mode

How to set a temporary speed override when the pump is idle.

Wiring a Remote Connection

Troubleshooting Guide

Basic Troubleshooting Steps

Initial checks for common motor issues like shaft not spinning.

General Troubleshooting

Fault Conditions Explained

Maintenance Procedures

Lowering Utility Costs

Tips and calculations for reducing energy consumption.

Energy Savings Example Calculations

Demonstrates how speed reduction impacts energy usage.

Factory Default Settings

Warranty Information

Neptune 1.25HP Specifications
