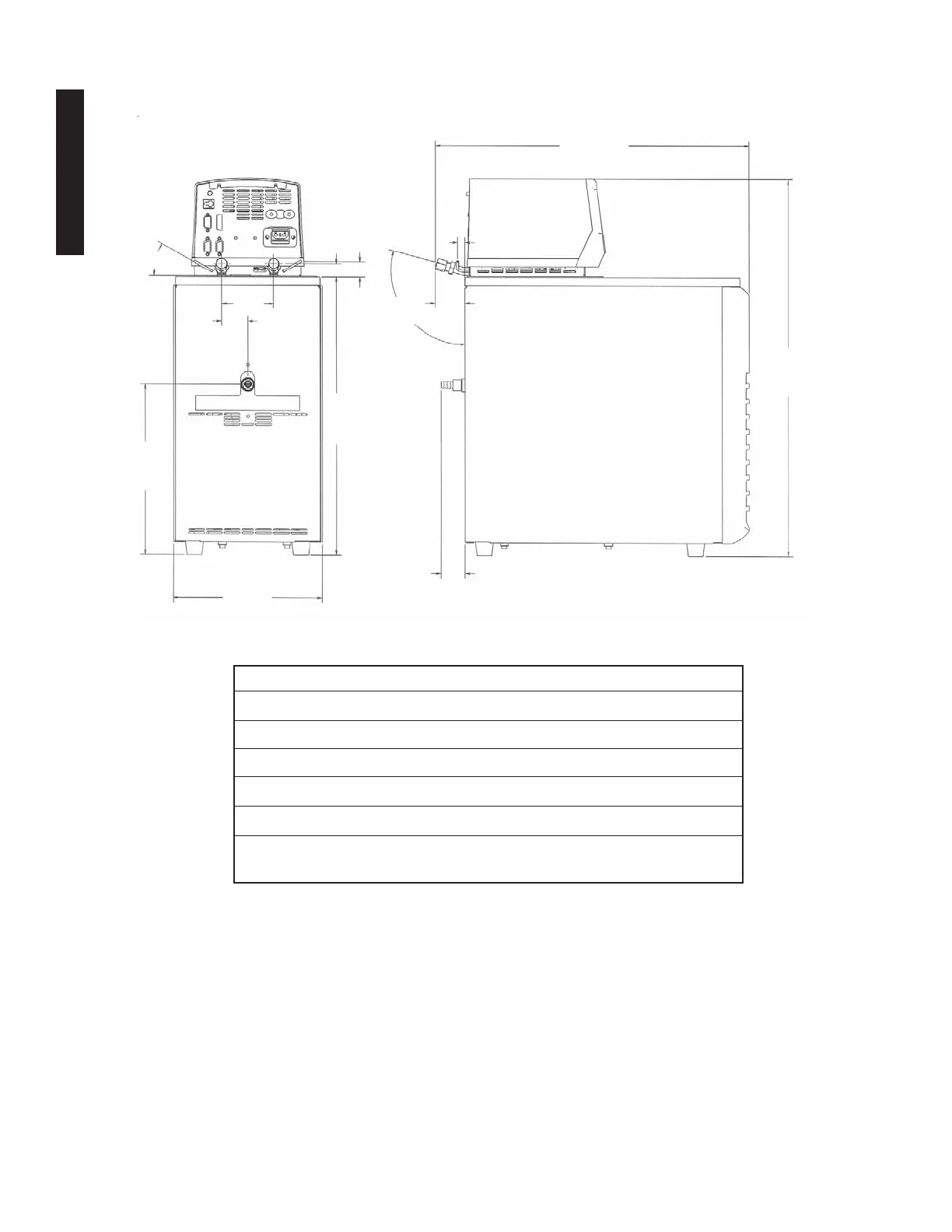

Unitl Dimensions (inches)
General Information
B
A
C
1½
E
D
F
30°
½
Rear View Side View
105°
1
7
/8
7
/8
1
3¼
1
5
/8
Unit Dimensions
Dimension A
Dimension B
Dimension C
Dimension D
Dimension E
Crate Dimensions
(D x W x H)
RTE 7 RTE 10 RTE 17 RTE 740
23 5/8 23 5/8 26 5/8 26 5/8
9 1/4 11 3/8 11 3/8 11 3/8
19 20 1/8 20 1/8 20 1/8
17 3/8 17 3/8 20 3/8 20 3/8
10 5/8 10 5/8 10 5/8 12 3/8
26½ x 18 x 33½
