Nespresso Gemini CS220 PRO - Operating Elements and Display Functions

ServicemanualEF702/705
10

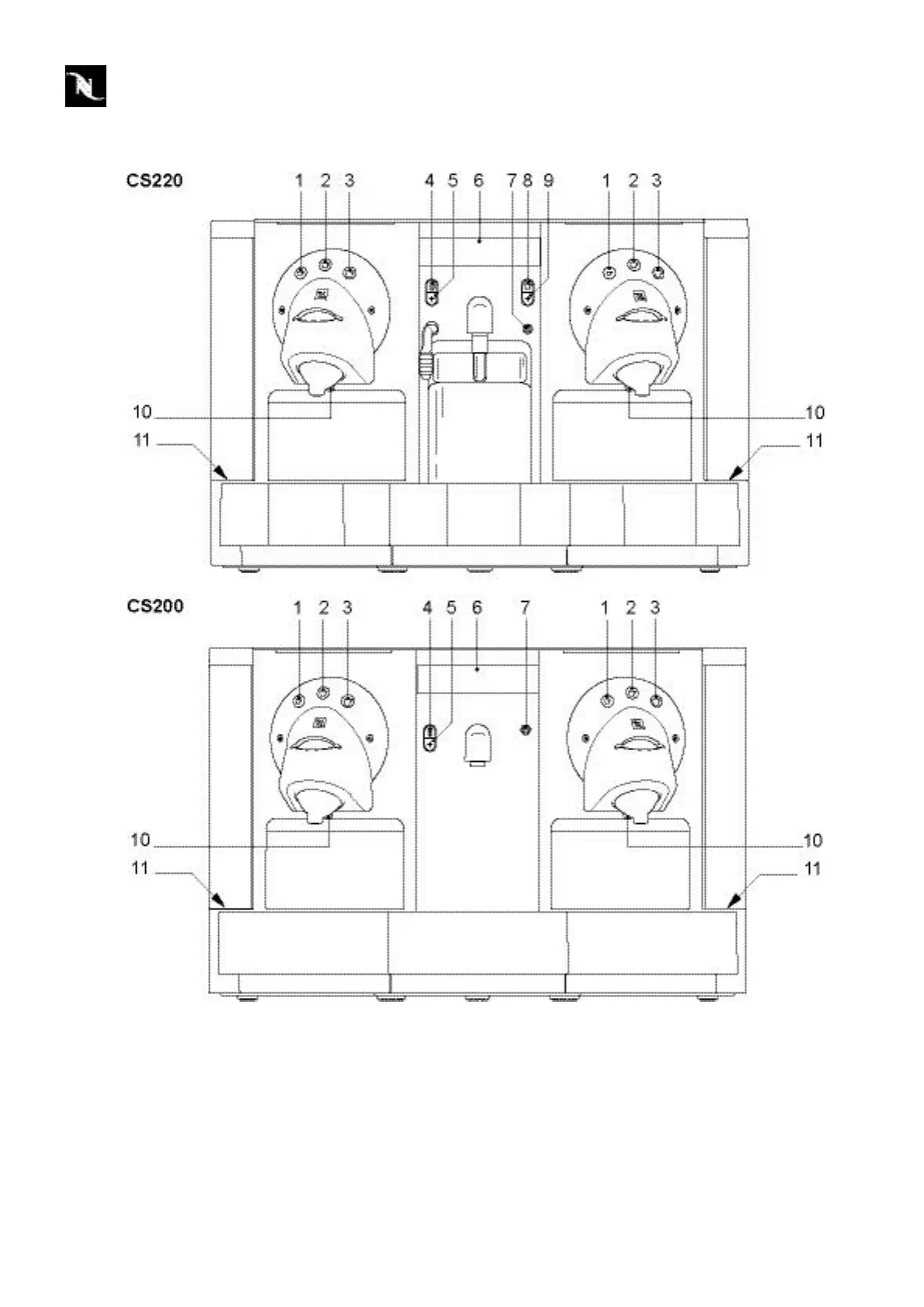

M A I N  C O M P O N E N T S
1) Coffeebutton"smallcup"(left,right,backlighted)
2) Coffeebutton"mediumcup"(left,right,back
lighted)
3) Coffeebutton"largecup"(left,right,backlighted)
4) Portionbuttonforhotwater(backlighted)
5) Fillupbuttonforhotwater(backlighted)
6) Passivedisplay(LCD,backlighted)
7) Standbybutton(backlighted)
8) Portionbuttonforhotmilk(CS220,backlighted)
9) Fillupbuttonforhotmilk(CS220,backlighted)
10)Cupillumination(left,right,white/yellow)
11)Watertankillumination(left,right,white)
1.5 Overview operatingelem entsanddisplay
