ServicemanualEF702/705
9

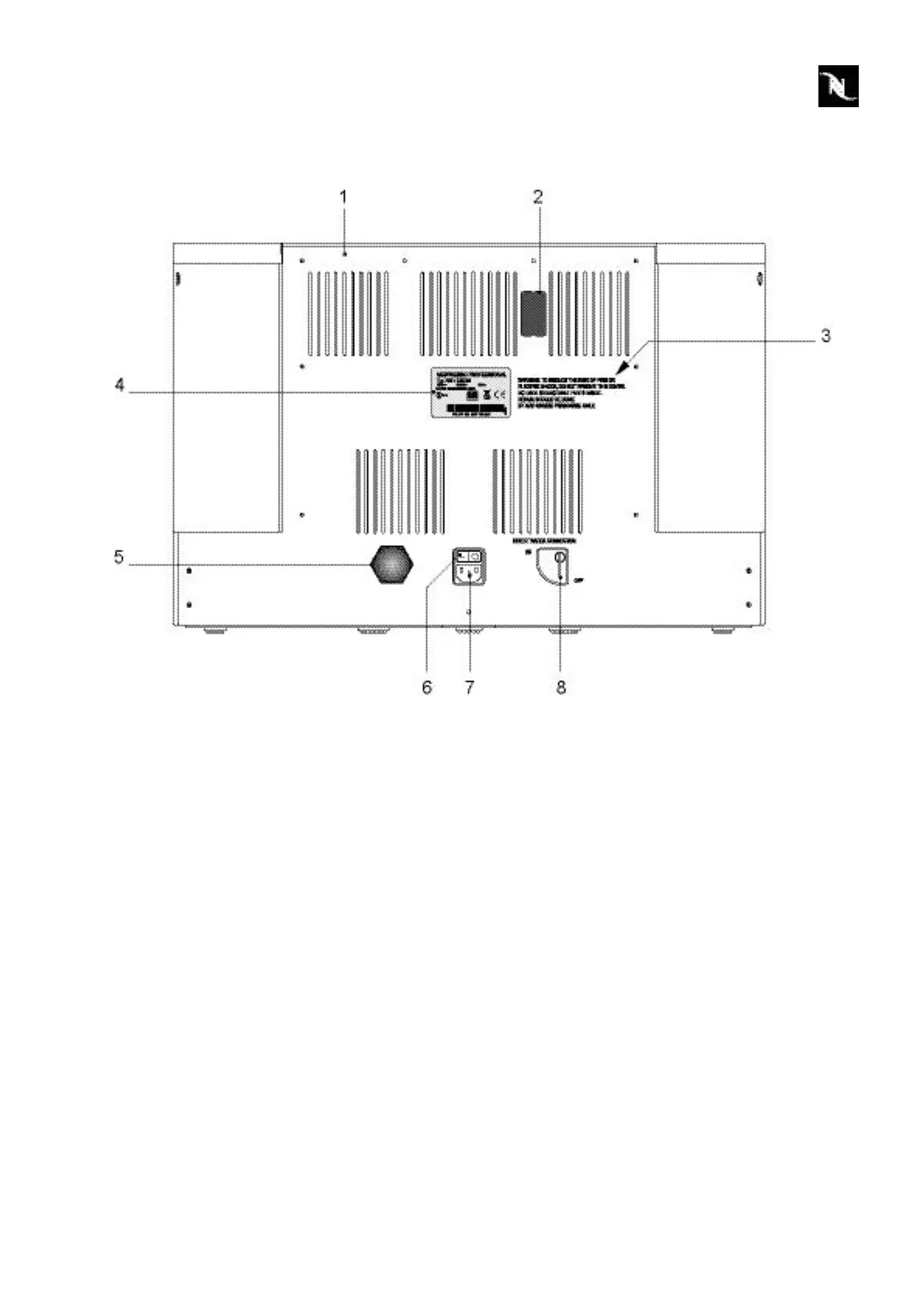

M A I N  C O M P O N E N T S
1) Backwall
2) ServiceStickconnector(cover)
3) Safetyinstructiontext
4) Typeplate
5) Directwaterconnection
6) Mainsswitch
7) Mainsconnection
8) Watertankconnectionvalve(directwaterON/OFF)
1.4 Overview rea rs ide
