M A I N  C O M P O N E N T S
1) Milkcontainer(thermos,2pcs.)
2) Waterfilter(optional,left,right)
3) Watertankcoverwithlock(left,right),
necessaryfordirectwaterconnection
4) Watertankcover(left,right)
5) Watertank(left,right)with
carryinghandle(hinged)
magneticfloaterlevelcontrol
watervalve
6) Capsulecontainer(left,right)
7) Dripgrid(middle,CS220)
8) Driptraywiththermossupport(middle,CS220)
9) Dripgrid(left,right)
10)Driptraywithwaterleveldetection(left,right)
11)Driptraywithwaterleveldetection(left,right,
necessaryfordirectwaterconnection)
12)Dripgrid(middle,CS200)
13)Driptray(middle,CS200)

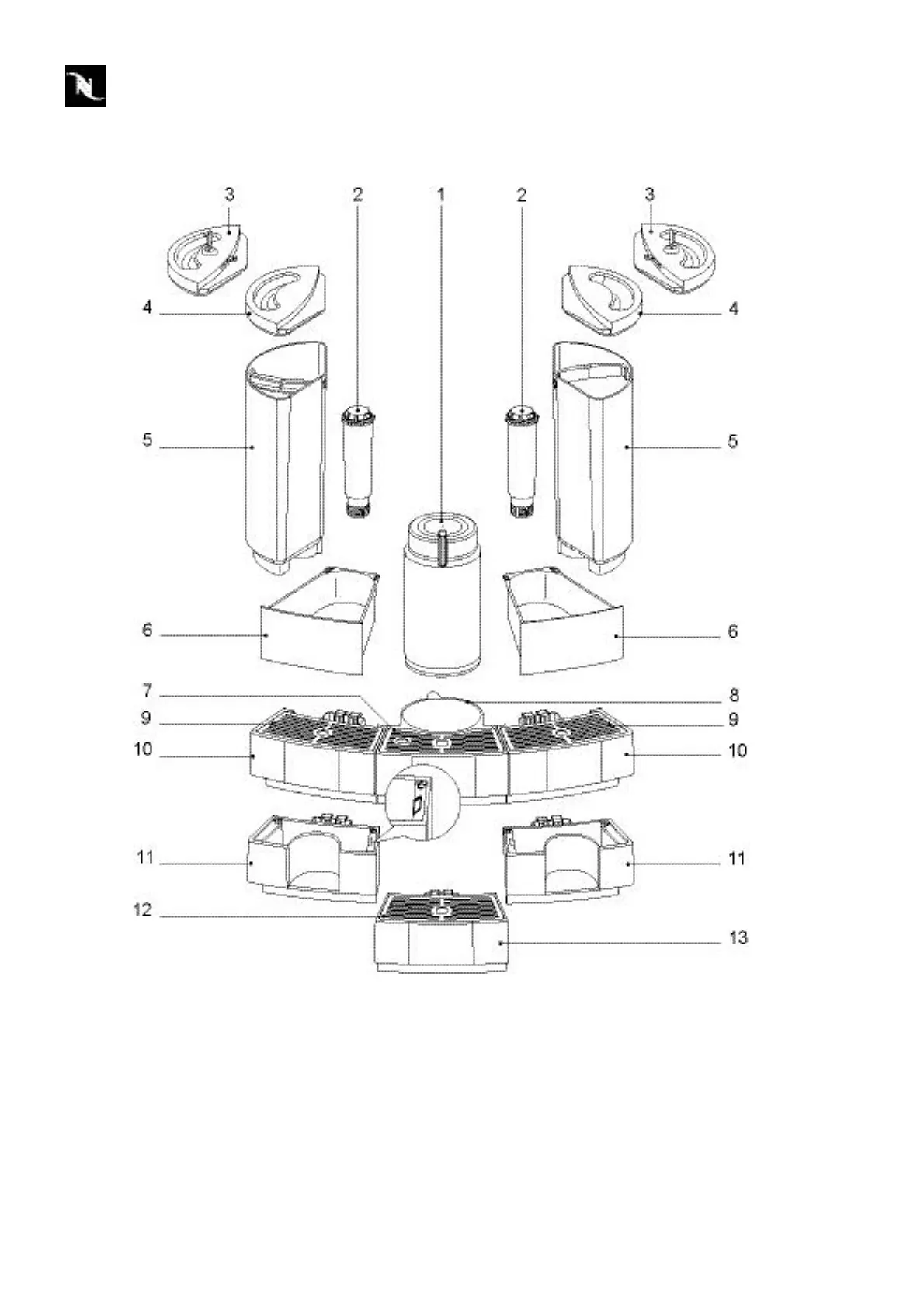

1.3 Overview rem ovableparts
