M A I N C O M P O N E N T S
1) Heatingplate
2) Safetylid(left,right)
3) Capsuleslot(left,right)
4) Coffeeoutlet(left,right)
5) Coverforcapsuleejectionhole(left,right)
6) Watertanksupport(left,right)
7) Openingforcapsulecontainer(left,right)
8) Driptraycontacts(left,right)
9) Driptraysupport(left,right)
10) Microswitchesforcapsulecontainerdetection
(left,right)
11) Supportformiddledriptray
12) Microswitchfordriptraydetection
13) Hotwatertube

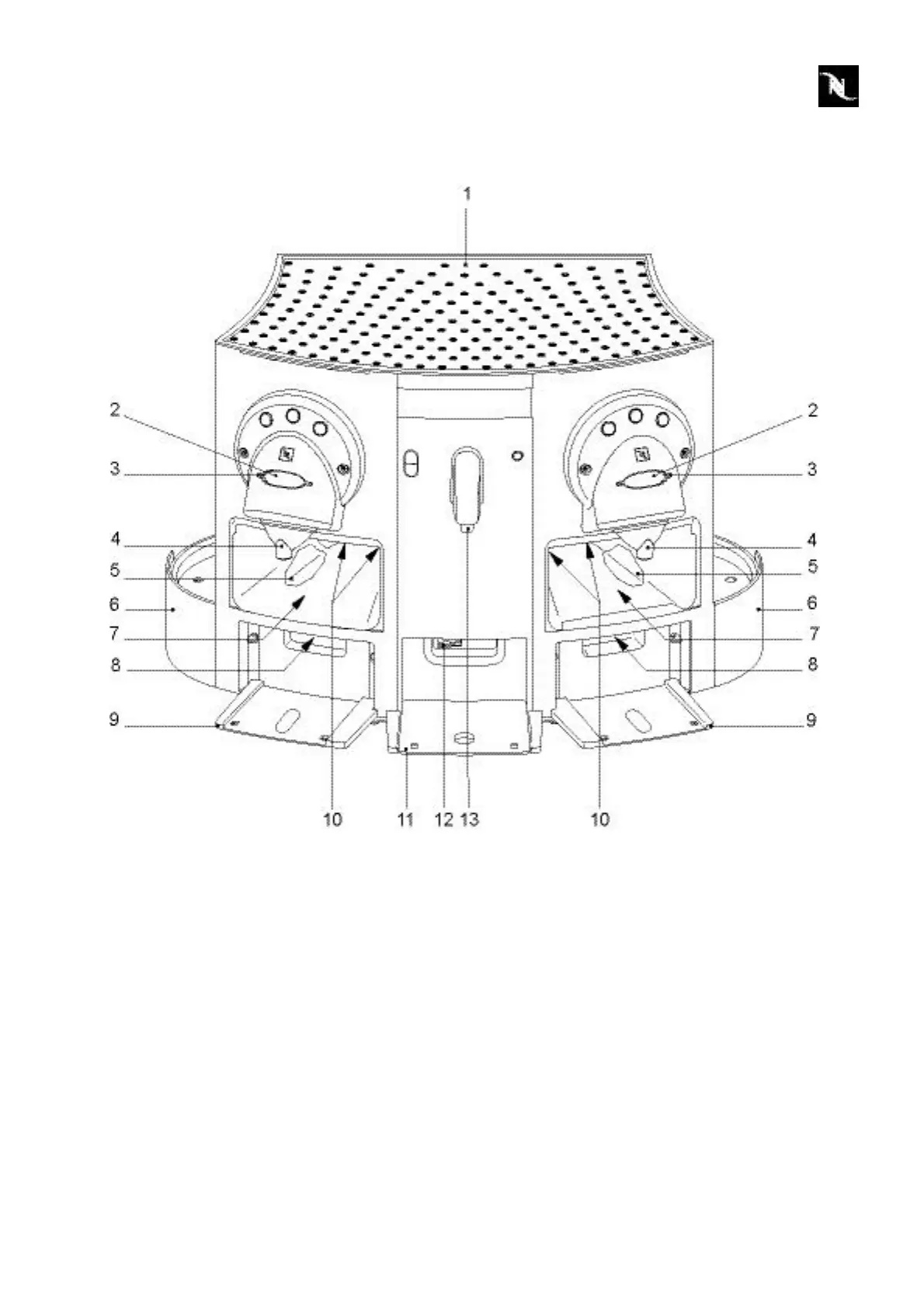

1.2 Overview frontside ofGeminiCS200
