Nespresso Gemini CS220 PRO - Main Components Overview

ServicemanualEF702/705
6
M A I N  C O M P O N E N T S
1) Heatingplate
2) Safetylid(left,right)
3) Capsuleslot(left,right)
4) Hotwatertube
5) Coffeeoutlet(left,right)
6) Coverforcapsuleejectionhole(left,right)
7) Watertanksupport(left,right)
8) Openingforcapsulecontainer(left,right)
9) Driptraycontacts(left,right)
10)Driptraysupport(left,right)
11)Microswitchesforcapsulecontainerdetection
(left,right)
12)Supportfordriptraywiththermos
13)Microswitchfordriptraydetection
14)Steamnozzle
15)Camswitchformilktankdetection
1 M A I N  C O M P O N E N T S

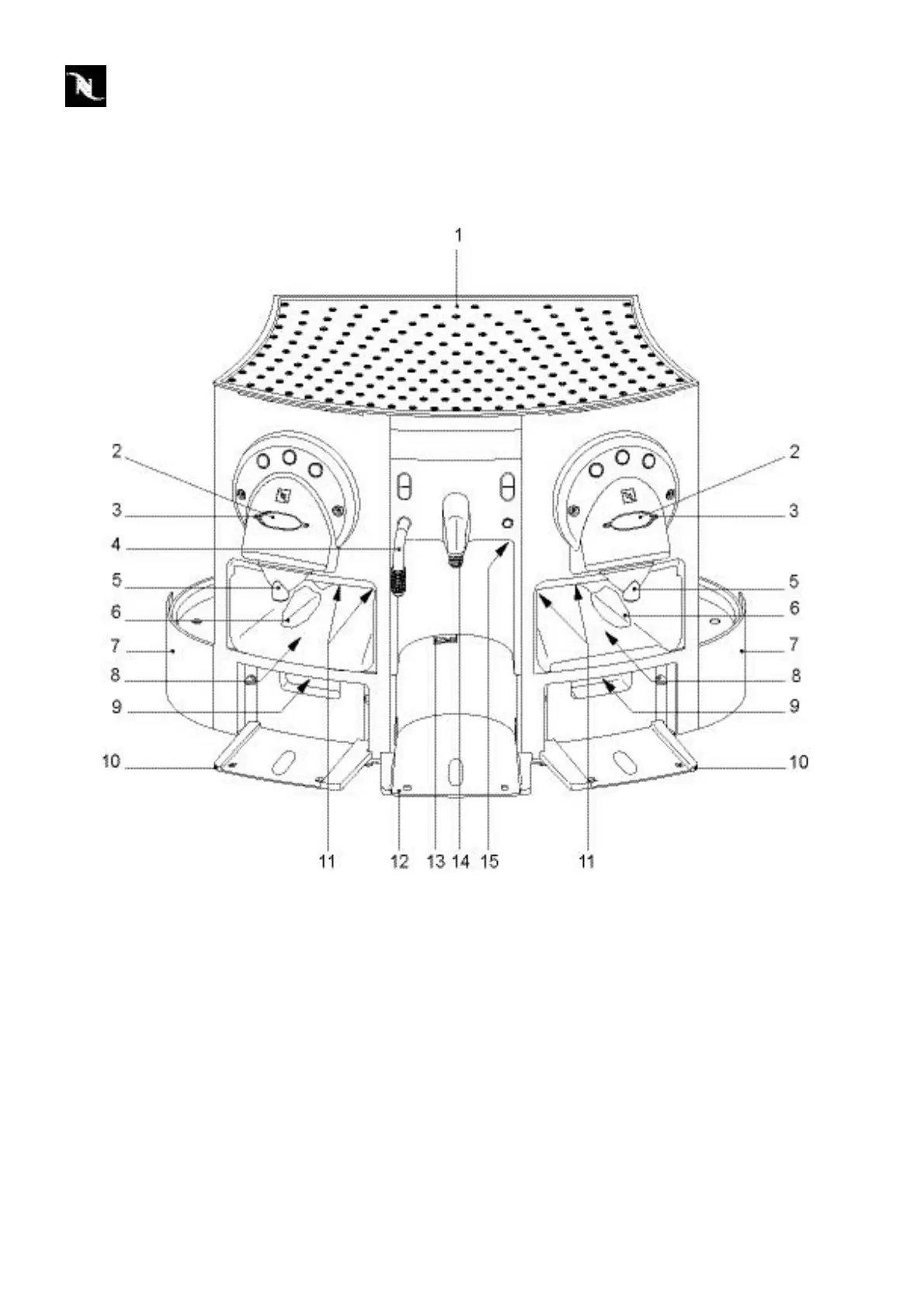

1.1 Overview frontsideofGeminiCS220
