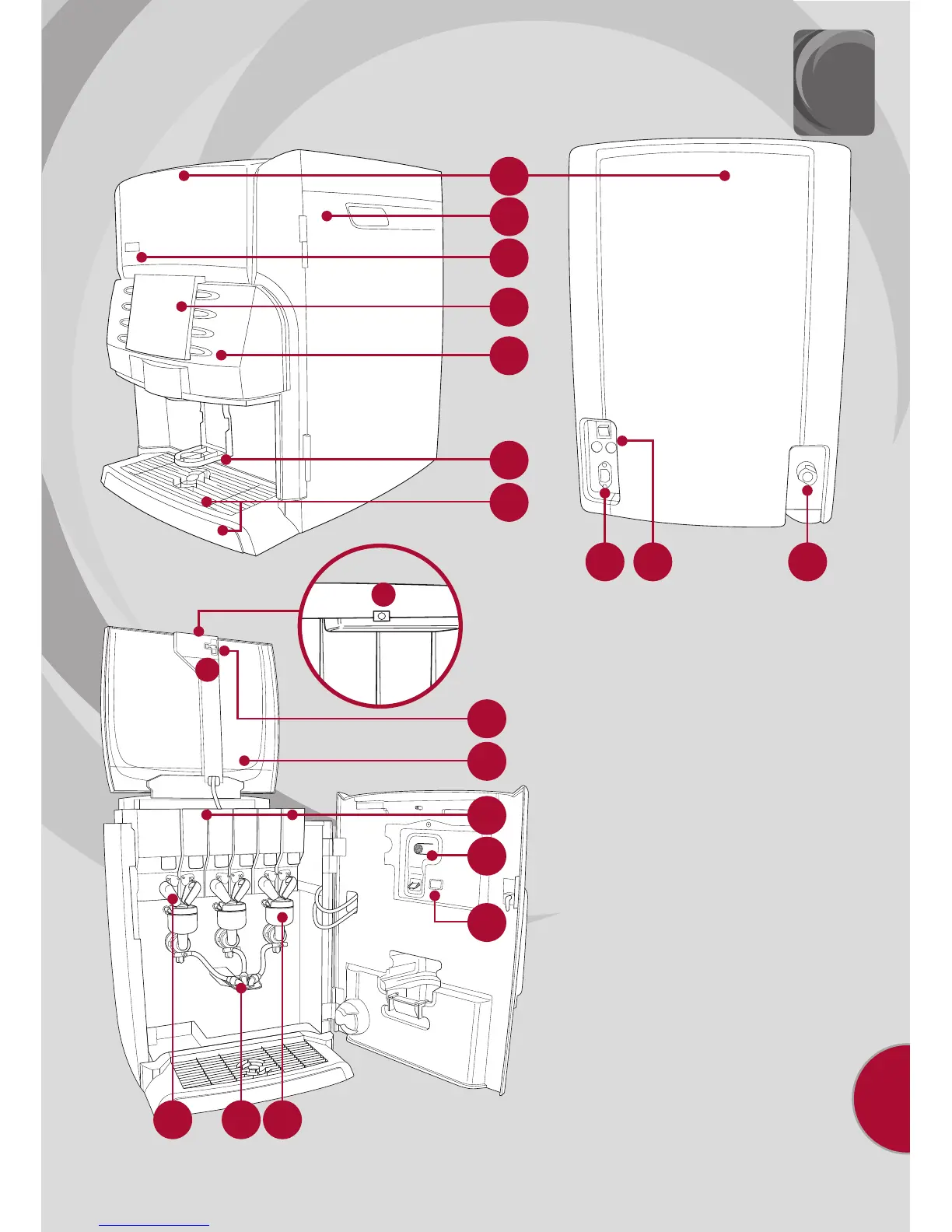

BASIC PARTS OF THE MACHINE
1
5
6
7
12
11
13
15
14
4
3
2
108 9
161718
1. Front and back panels
2. Side panel
3. Display
4. Selection panel/ buttons
5. Pre-selection button
(optional)
6. Espresso cup stand
7. Drip tray and grid
8. Electrical socket
9. Power switch
10. Water inlet
11. Key clip (A) and
locator (B)
12. Machine lid
13. Canister
14. Programming button
15. Programming key
connector
16. Mixing bowls
17. Dispense head bracket
18. Powder chute
B)
A)
