10/100/1000 Copper Port Aggregator Tap
4
• 1 / 2:.Main.and.Redundant.Power.If.the.Tap.is.deployed.with.both.power.
supplies,.both.LEDs.will.illuminate.when.the.Tap.is.plugged.in.If.an.LED.
is.off,.this.indicates.that.the.corresponding.power.supply.is.not.functioning
• Link Speed Indicator: Located.in.the.upper.left.corner.of.each.RJ45.con-
nector.It.illuminates.solid.amber.for.a.10Mbps.link,.yellow.for.a.100Mbps.
link,.and.green.for.a.1000Mbps.link
• Link/Activity Indicator: Located.in.the.upper.right.corner.of.each.RJ45.
connector.If.a.good.link.is.established,.the.LED.illuminates.a.steady.green.
If.there.is.current.activity.on.this.link,.the.LED.ashes
®
www.netoptics.com
1
2
Port Aggregator
1
Network Monitor
2
A B
10
100
1000
LINK
ACT
In-Line
Power LEDs
Monitor Ports
1 & 2
Network Ports
A & B

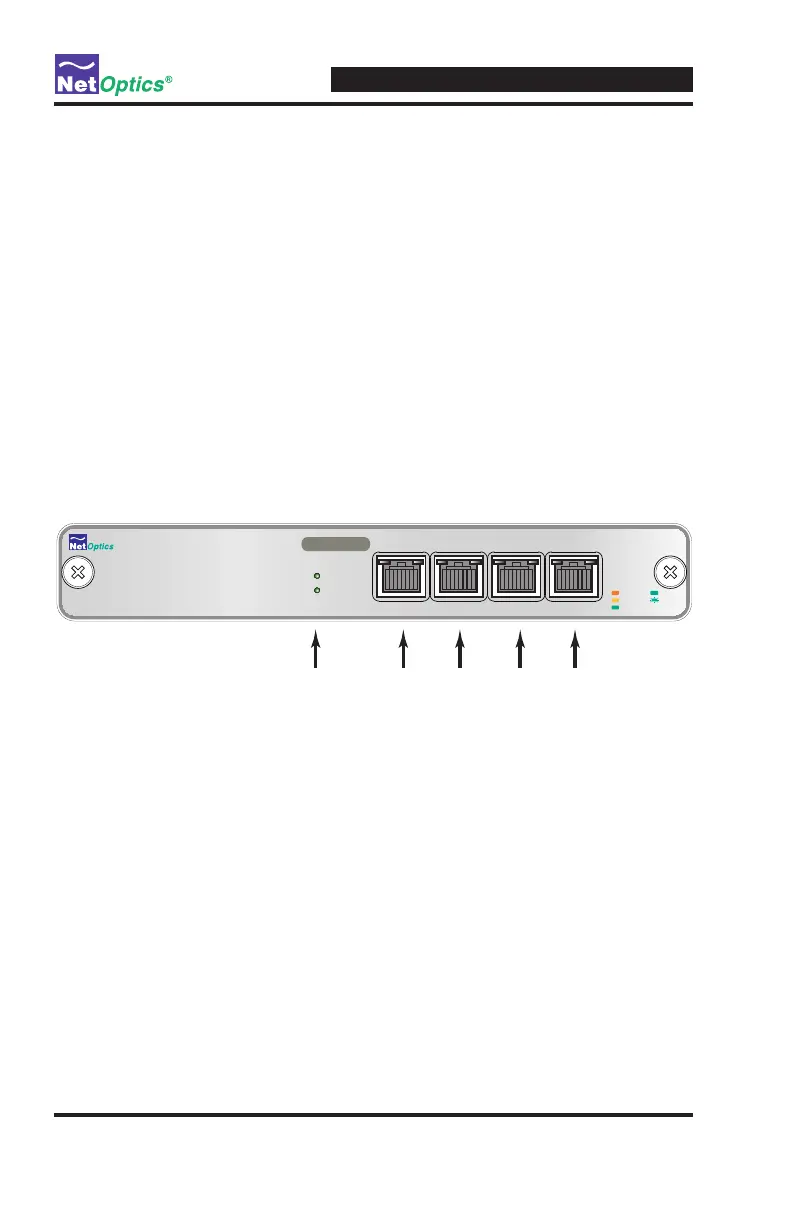

Front Panel View (TPA-CU3)
Carefully.unpack.the.10/100/1000.Copper.Port.Aggregator.and.check.for.
damaged.or.missing.parts.The.Port.Aggregator.ships.with.the.following:
•. 10/100/1000.Copper.Port.Aggregator.(TPA-CU3)
•. Two.power.supplies
•. Installation.Guide
•. CAT5e.cables
You.may.have.also.ordered.a.one-rack-unit.panel.for.mounting.two.Taps.and.
an.extended.warranty.Carefully.check.the.packing.slip.against.parts.received.
If.any.part.is.missing.or.damaged,.contact.Net.Optics.Customer.Service.
immediately
