Netafim Radionet User Manual

33
RadioNet
INSTALLATION MANUAL
Page: 3 of 7 pages Revision: 01 Doc. Name: RadioNet - User Manual
Crop Management Technologies
Connection - Host Unit to Control RS485
Communication to the GaliNet (Galileo) Controller and the Host is by a proprietary RS485 serial format.
 The RJ11 communication cable is connected between the GaliNet and the Host.
 The Jumpers LK2 and LK1 must in the UP position linking the center and top pins.
 The GaliNet controller needs to have the same input/output cards types that will be defined on
the Host

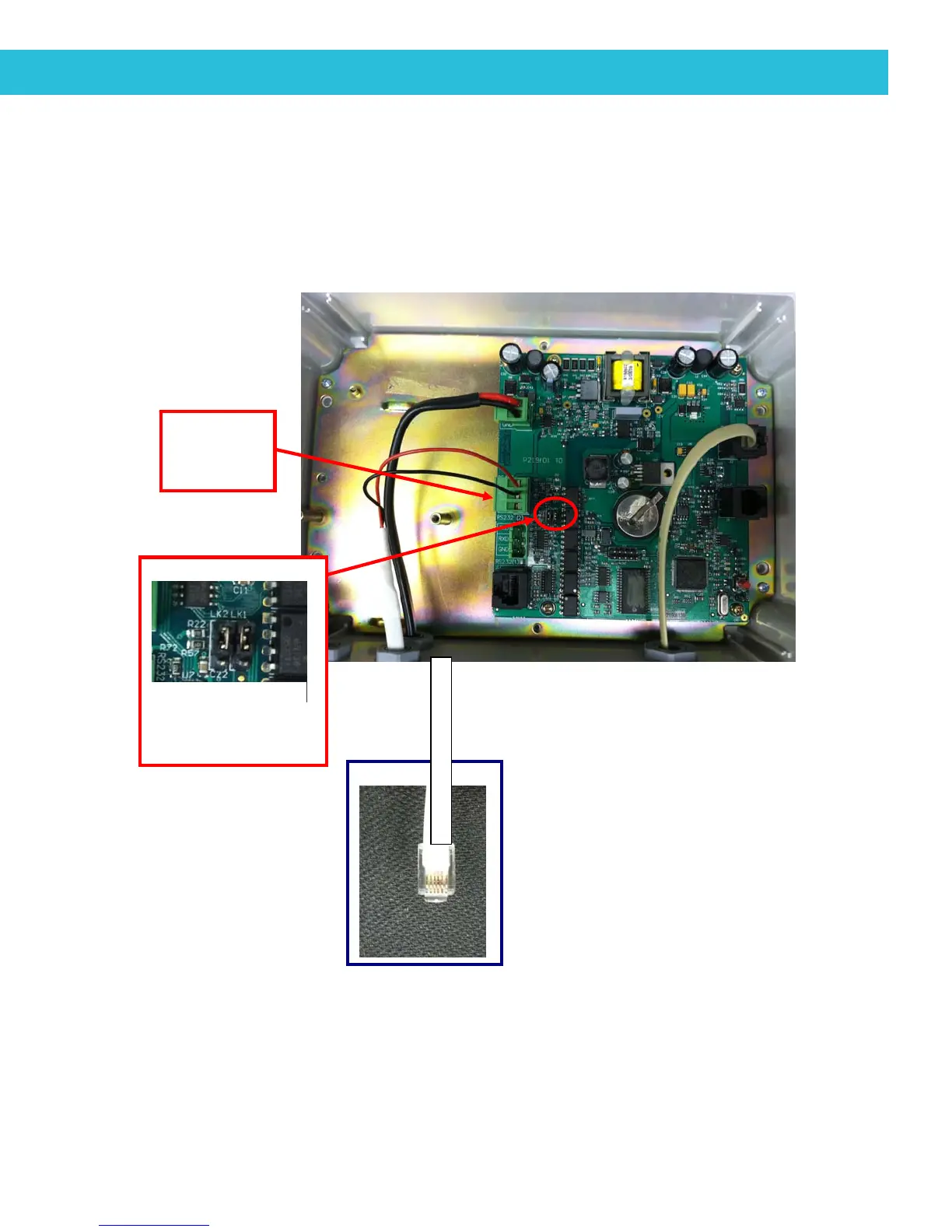

 Connection of wires:
Jumpers LK1 and
LK2
Plug RS485
A
a
n
d
B
RJ 11 Plug to be plugged
on GaliNet CPU Comm
Port RS 485
