Step Perform on each controller module
DO NOT plug in the power cords at this point.
2. To cable your storage, see
Step 4: Cable controllers to drive shelves

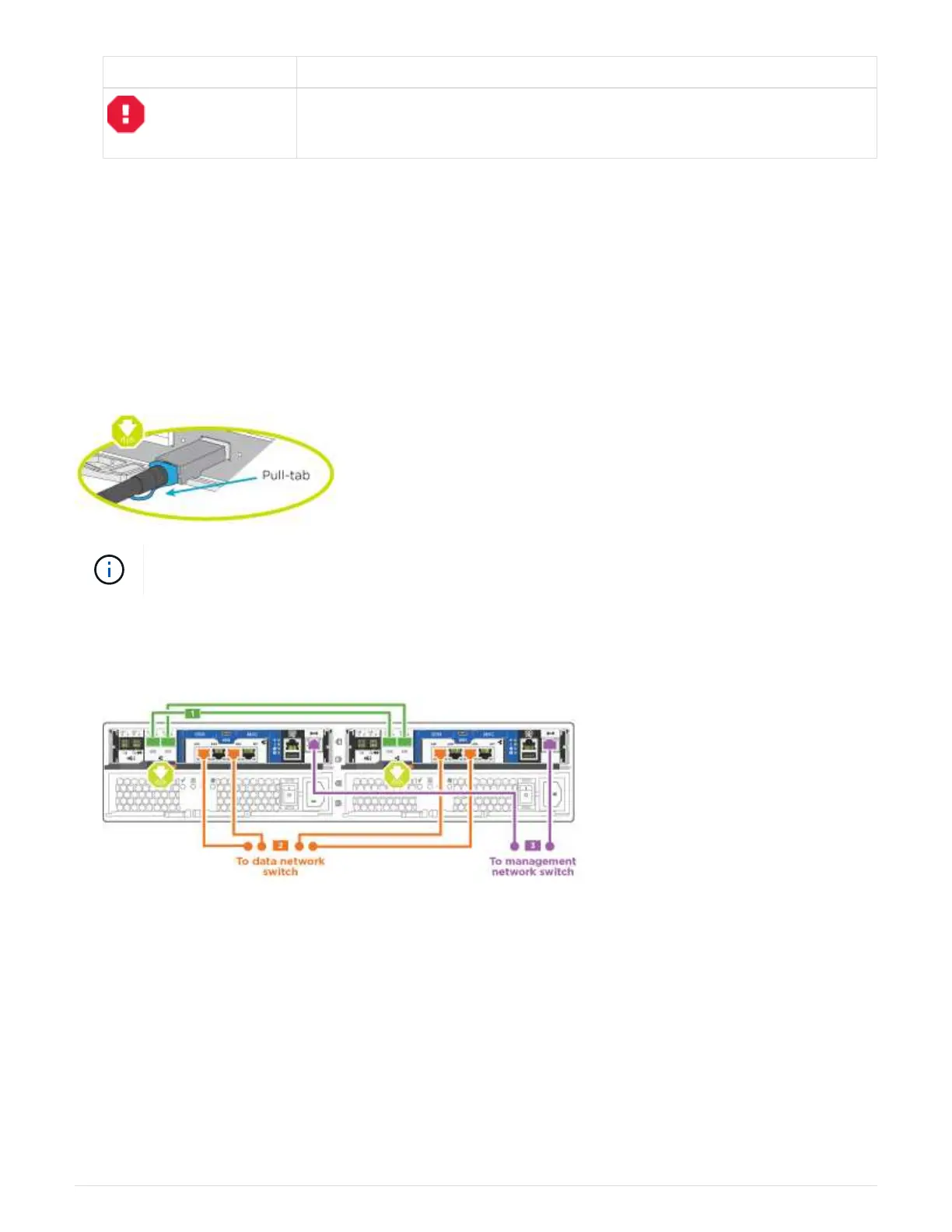

Option 3: Cable a two-node switchless cluster, Ethernet network configuration
Management network, Ethernet data network, and management ports on the controllers are connected to
switches. The cluster interconnect ports are cabled on both controllers.
You must have contacted your network administrator for information about connecting the system to the
switches.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps
1. You can use the graphic or the step-by step instructions to complete the cabling between the controllers
and to the switches:
120
