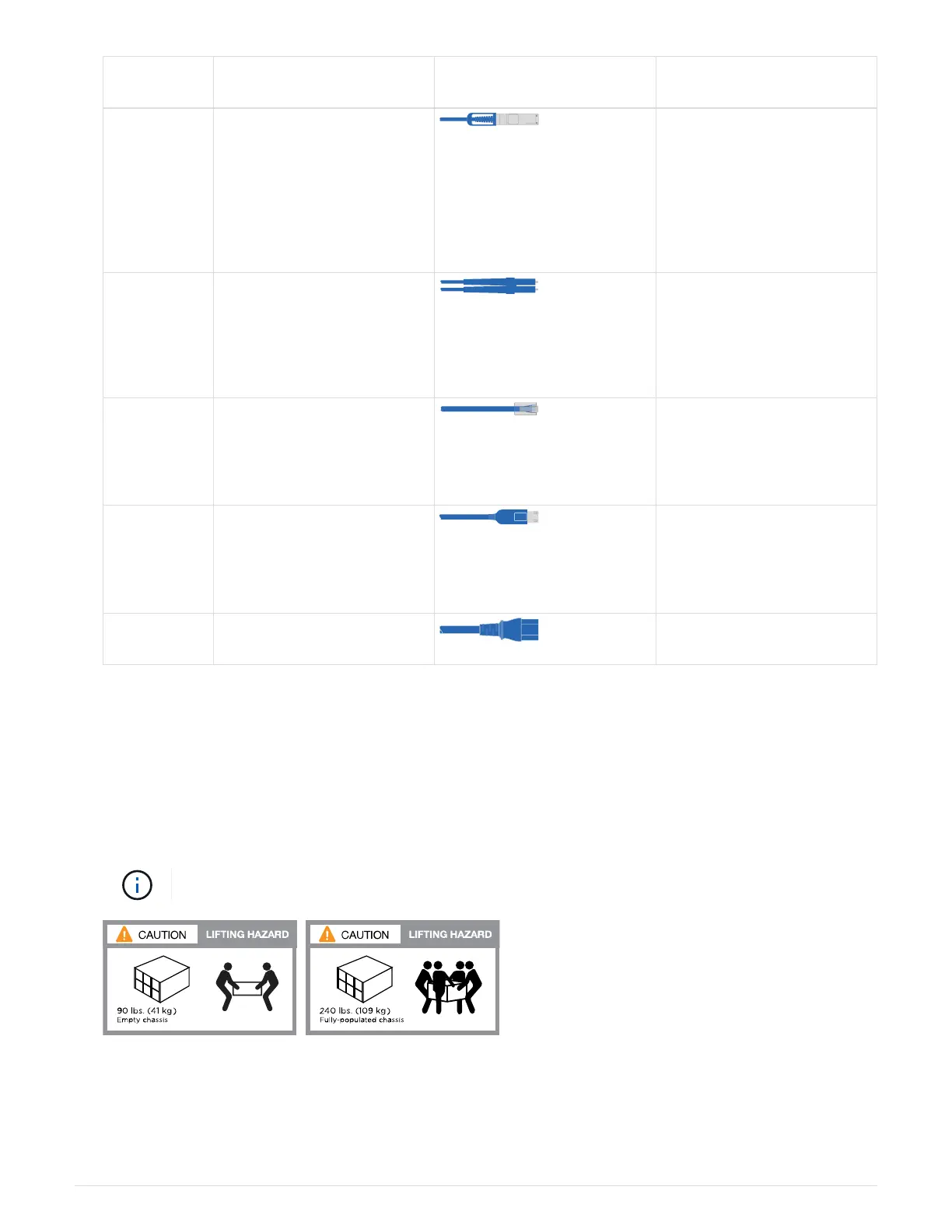

Type of
cable…
Part number and length Connector type For…
100 GbE
cable
X66211B-1 (112-00573), 1m
X66211B-2 (112-00574), 2m
X66211B-5 (112-00576), 5m
Network,
NVME storage,
Ethernet data,
cluster network
Optical
cables
X66031A (112-00436), 1m
X66032A (112-00437), 2m
X66033A (112-00438), 3m
FC optical network
Cat 6, RJ-45
(order
dependent)
Part numbers X6585-R6
(112-00291), 3m
X6562-R6 (112-00196), 5m
Management network and
Ethernet data
Micro-USB
console cable
Not applicable Console connection during
software setup on non-
Windows or Mac
laptop/console
Power cables Not applicable Powering up the system
4. Review the
ONTAP Configuration Guide and collect the required information listed in that guide.
Step 2: Install the hardware
You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.
1. Install the rail kits, as needed.
2. Install and secure your system using the instructions included with the rail kit.
You need to be aware of the safety concerns associated with the weight of the system.
3. Attach cable management devices (as shown).
