Animation - Cable the controllers to one NS224 drive shelf
2. Go to Step 5: Complete system setup and configuration to complete system setup and configuration.
Option 3: Cable the controllers to SAS drive shelves

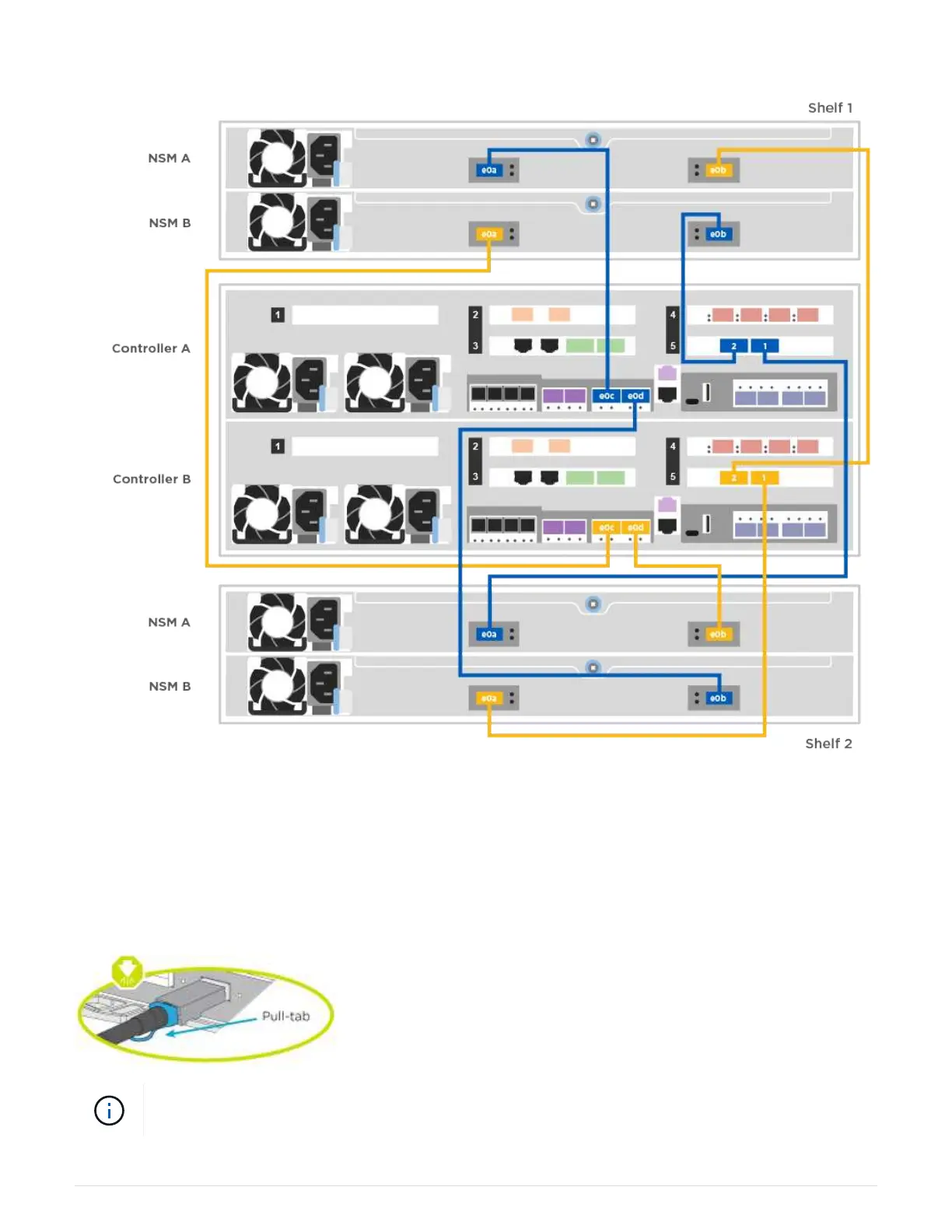

You must cable each controller to the IOM modules on both SAS drive shelves.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab for
the DS224-C are down.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
