the socket.
d. Tighten the thumbscrews on the mezzanine card.
3. Reinstall the riser:
a. Align the riser with the pins to the side of the riser socket, lower the riser down on the pins.
b. Push the riser squarely into the socket on the motherboard.
c. Rotate the latch down flush with the sheet metal on the riser.
Step 5: Install the controller module
After you have replaced the component in the controller module, you must reinstall the controller module into
the chassis, and then boot it to Maintenance mode.

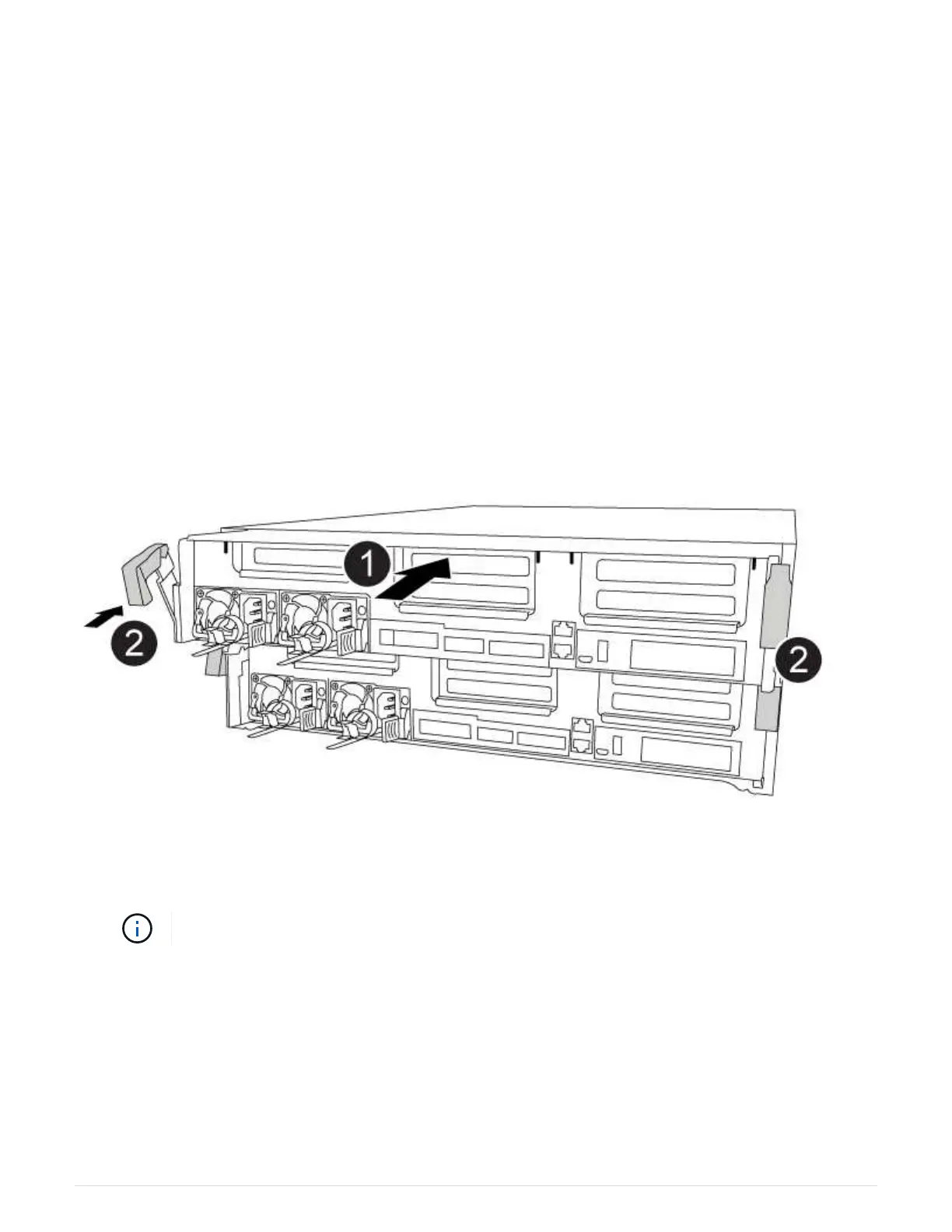

You can use the following animation, illustration, or the written steps to install the controller module in the
chassis.
Animation - Install the controller module
1. If you have not already done so, close the air duct.
2. Align the end of the controller module with the opening in the chassis, and then gently push the controller
module halfway into the system.
Do not completely insert the controller module in the chassis until instructed to do so.
3. Recable the system, as needed.
If you removed the media converters (QSFPs or SFPs), remember to reinstall them if you are using fiber
optic cables.
4. Complete the installation of the controller module:
a. Plug the power cord into the power supply, reinstall the power cable locking collar, and then connect
the power supply to the power source.
