1. Go to Step 4: Cable controllers to drive shelves for drive shelf cabling instructions.
Step 4: Cable controllers to drive shelves
You can cable your new system to DS212C, DS224C, or NS224 shelves, depending on if it is an AFF or FAS
system.
Option 1: Cable the controllers to DS212C or DS224C drive shelves
You must cable the shelf-to-shelf connections, and then cable both controllers to the DS212C or DS224C drive
shelves.
The cables are inserted into the drive shelf with the pull-tabs facing down, while the other end of the cable is
inserted into the controller storage modules with the pull-tabs up.
Steps

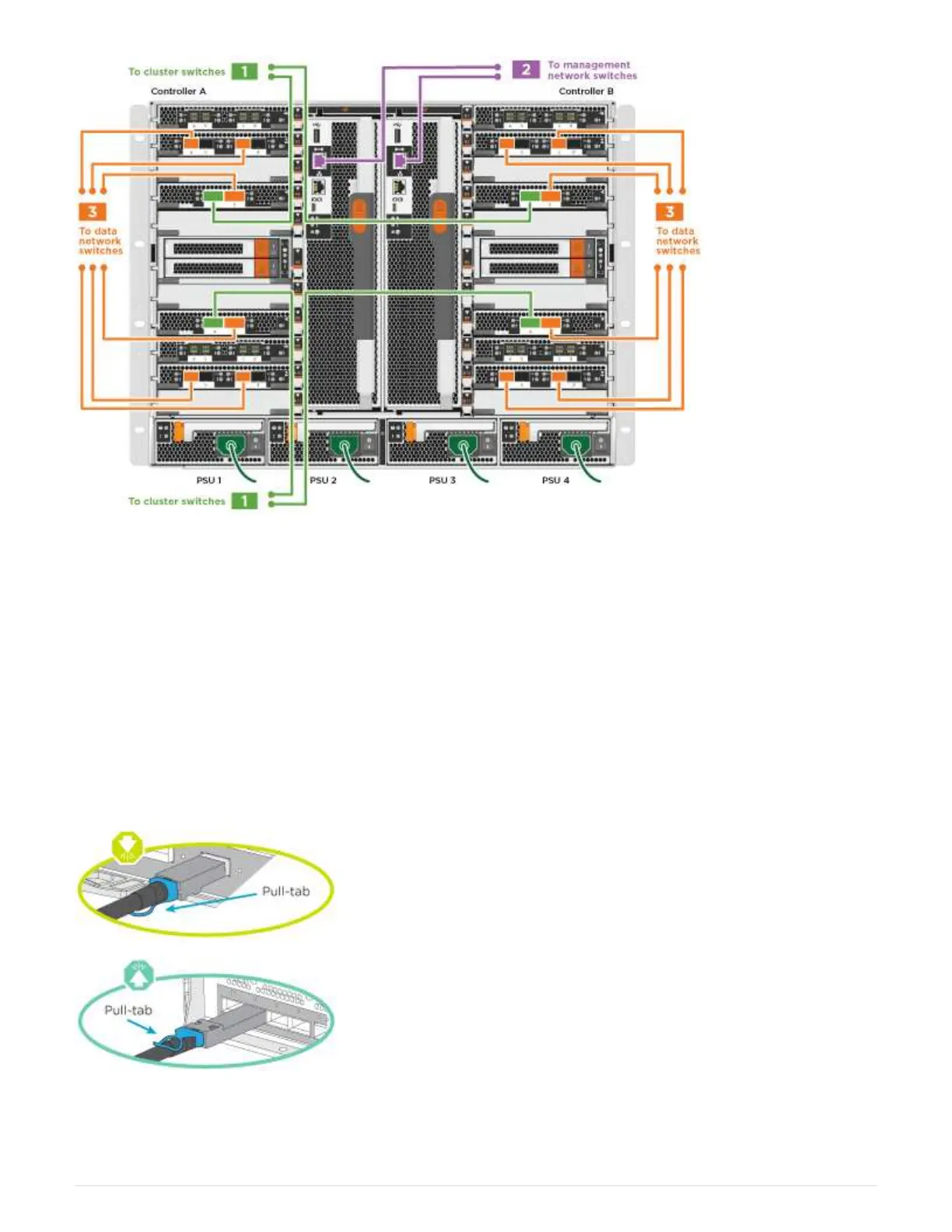

1. Use the following animations or illustrations to cable your drive shelves to your controllers.
