Replace the controller module hardware - AFF A700 and FAS9000
To replace the controller module hardware, you must remove the impaired node, move
FRU components to the replacement controller module, install the replacement controller
module in the chassis, and then boot the system to Maintenance mode.
Step 1: Remove the controller module
To access components inside the controller, you must first remove the controller module from the system and
then remove the cover on the controller module.
Steps
1. If you are not already grounded, properly ground yourself.
2. Unplug the cables from the impaired controller module, and keep track of where the cables were
connected.

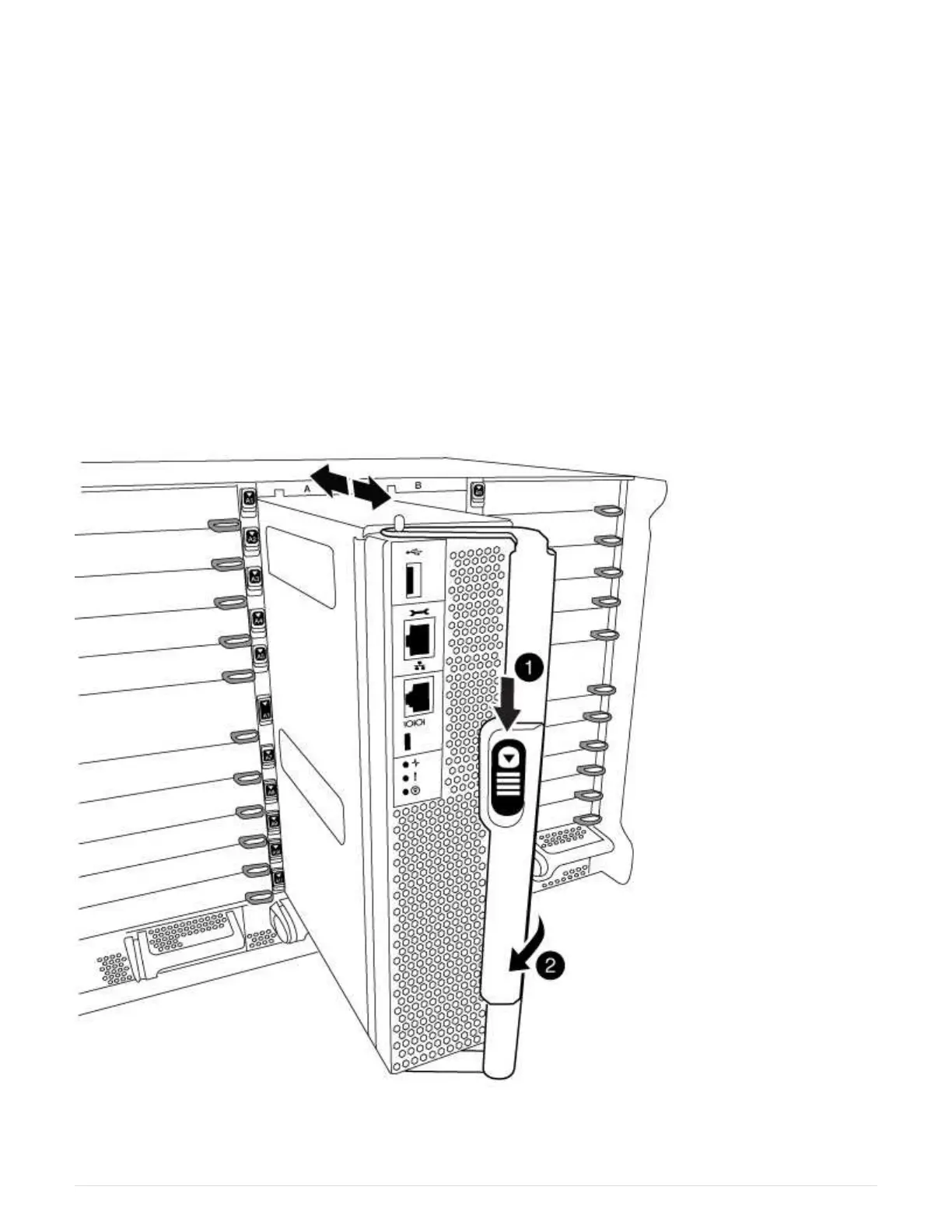

3. Slide the orange button on the cam handle downward until it unlocks.
