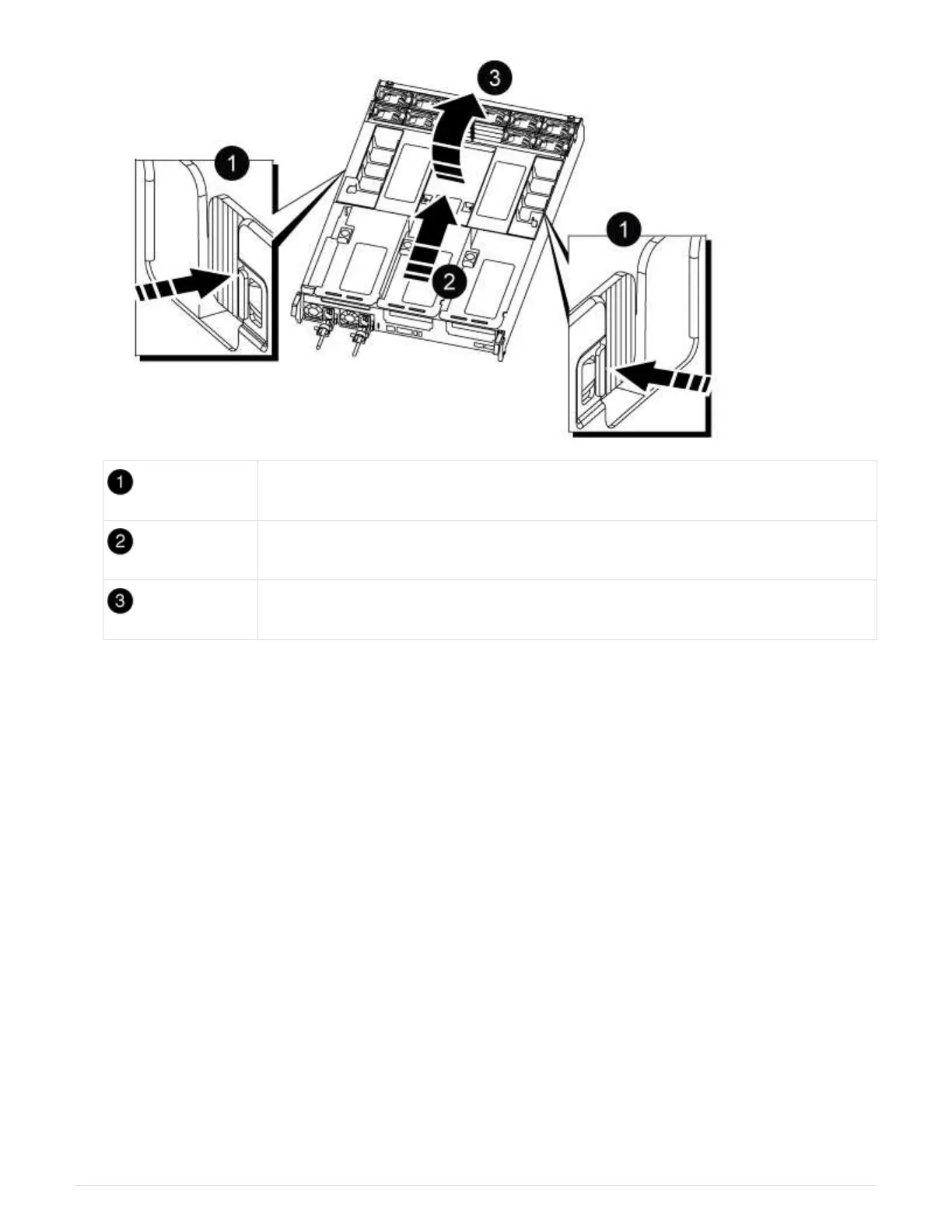

Air duct locking tabs
Slide air duct towards fan modules
Rotate air duct towards fan modules
Step 3: Replace the NVDIMM
To replace the NVDIMM, you must locate it in the controller module using the NVDIMM map label on top of the
air duct, and then replace it following the specific sequence of steps.
1. If you are removing or moving an NVDIMM, unlock the locking latch on the riser, and then remove the
applicable riser.
