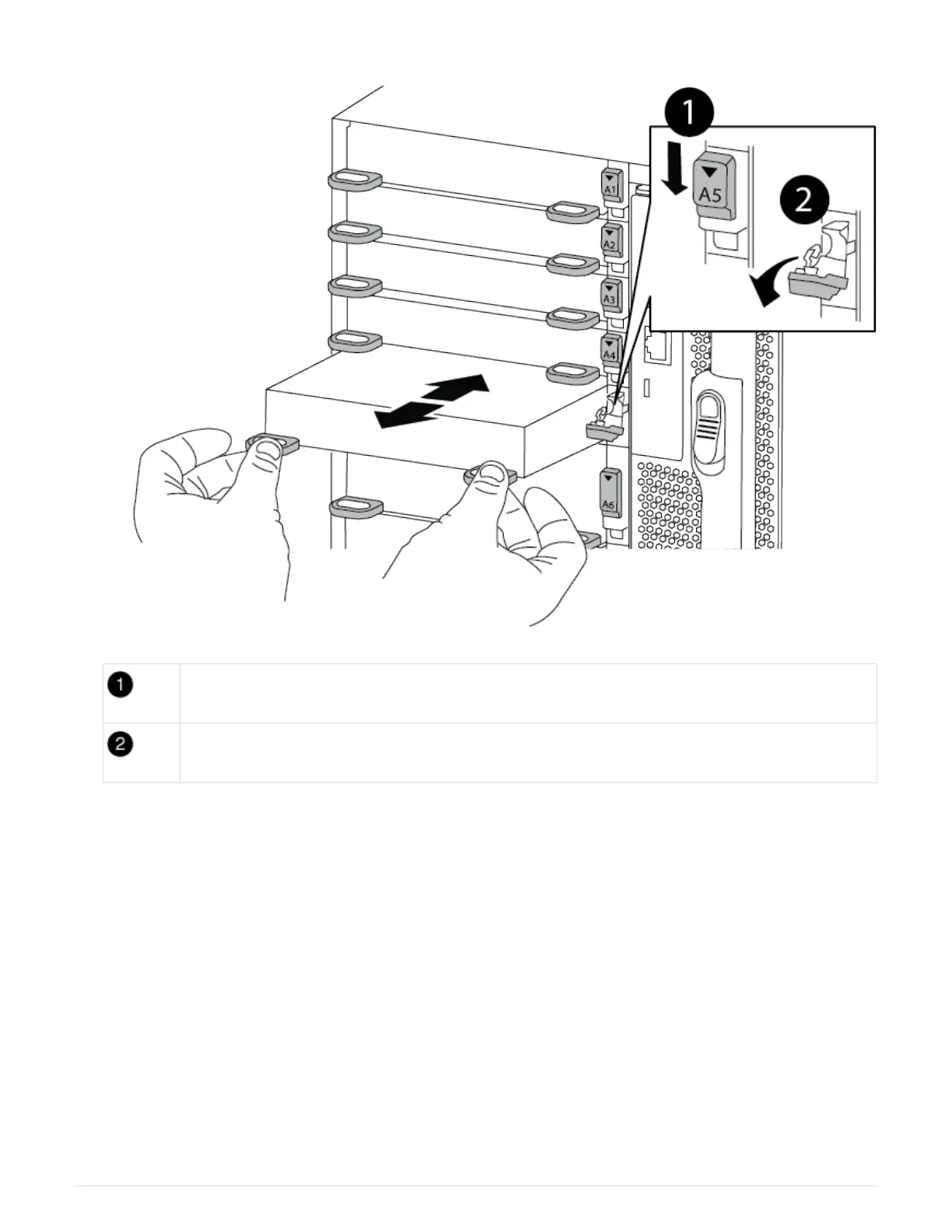

Lettered and numbered I/O cam latch
I/O cam latch completely unlocked
4. Set the I/O module aside.
5. Repeat the preceding step for the remaining I/O modules in the impaired chassis.
Step 5: Remove the De-stage Controller Power Module
Remove the two de-stage controller power modules from the front of the impaired chassis.
1. If you are not already grounded, properly ground yourself.
2. Press the terra cotta locking button on the module handle, and then slide the DCPM out of the chassis.
Animation - Remove/install DCPM
