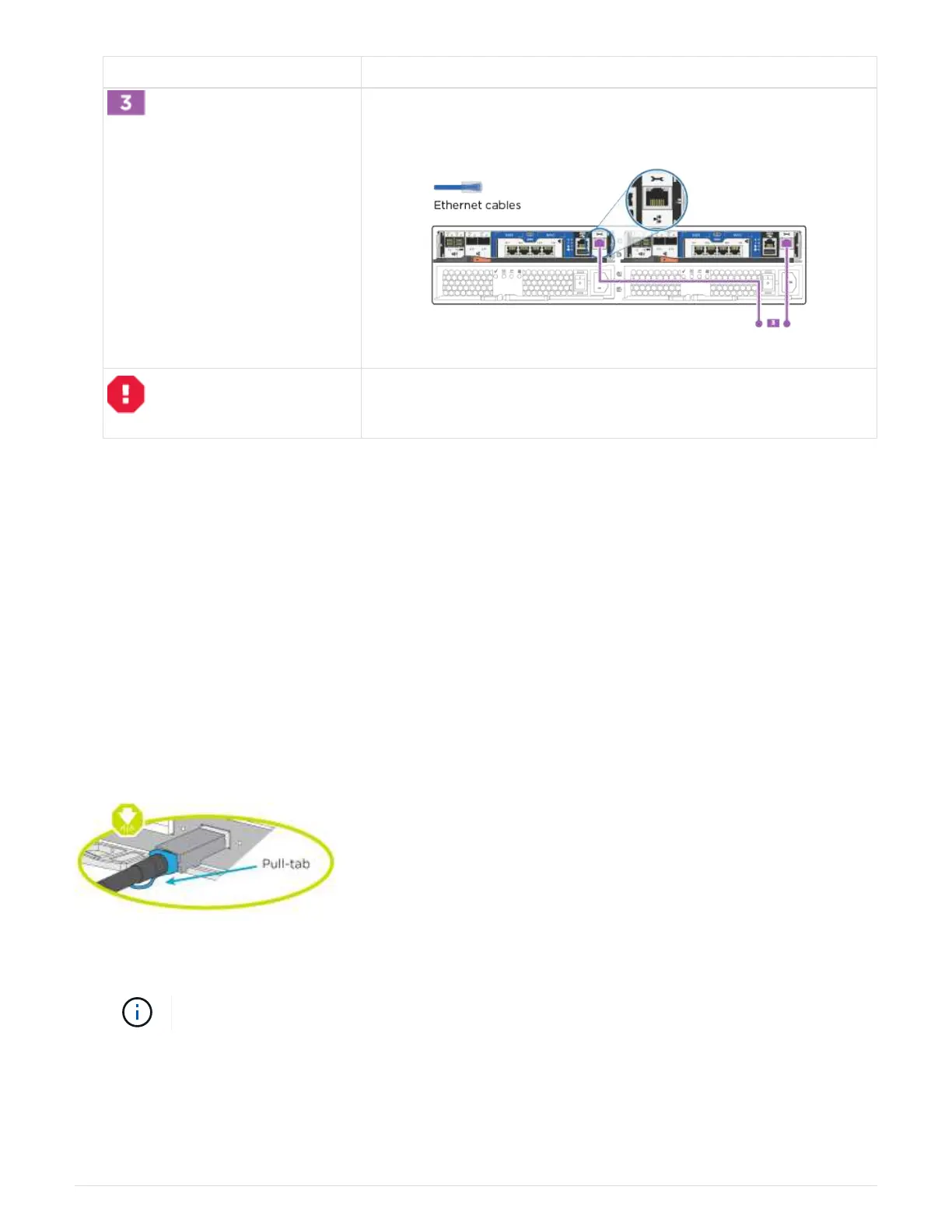

Step Perform on each controller module

Cable the e0M ports to the management network switches with the

RJ45 cables:

DO NOT plug in the power cords at this point.

2. To cable your storage, see

Cabling controllers to drive shelves

Step 4: Cable controllers to drive shelves

You must cable the controllers to your shelves using the onboard storage ports. NetApp

recommends MP-HA cabling for systems with external storage. If you have a SAS tape

drive, you can use single-path cabling. If you have no external shelves, MP-HA cabling to

internal drives is optional (not shown) if the SAS cables are ordered with the system.

Option 1: Cable storage on an HA pair with external drive shelves

You must cable the shelf-to-shelf connections, and then cable both controllers to the drive

shelves.

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.

Steps

1. Cable the HA pair with external drive shelves:

The example uses DS224C. Cabling is similar with other supported drive shelves.
