Step Perform on each controller

Cable the shelf-to-shelf ports.

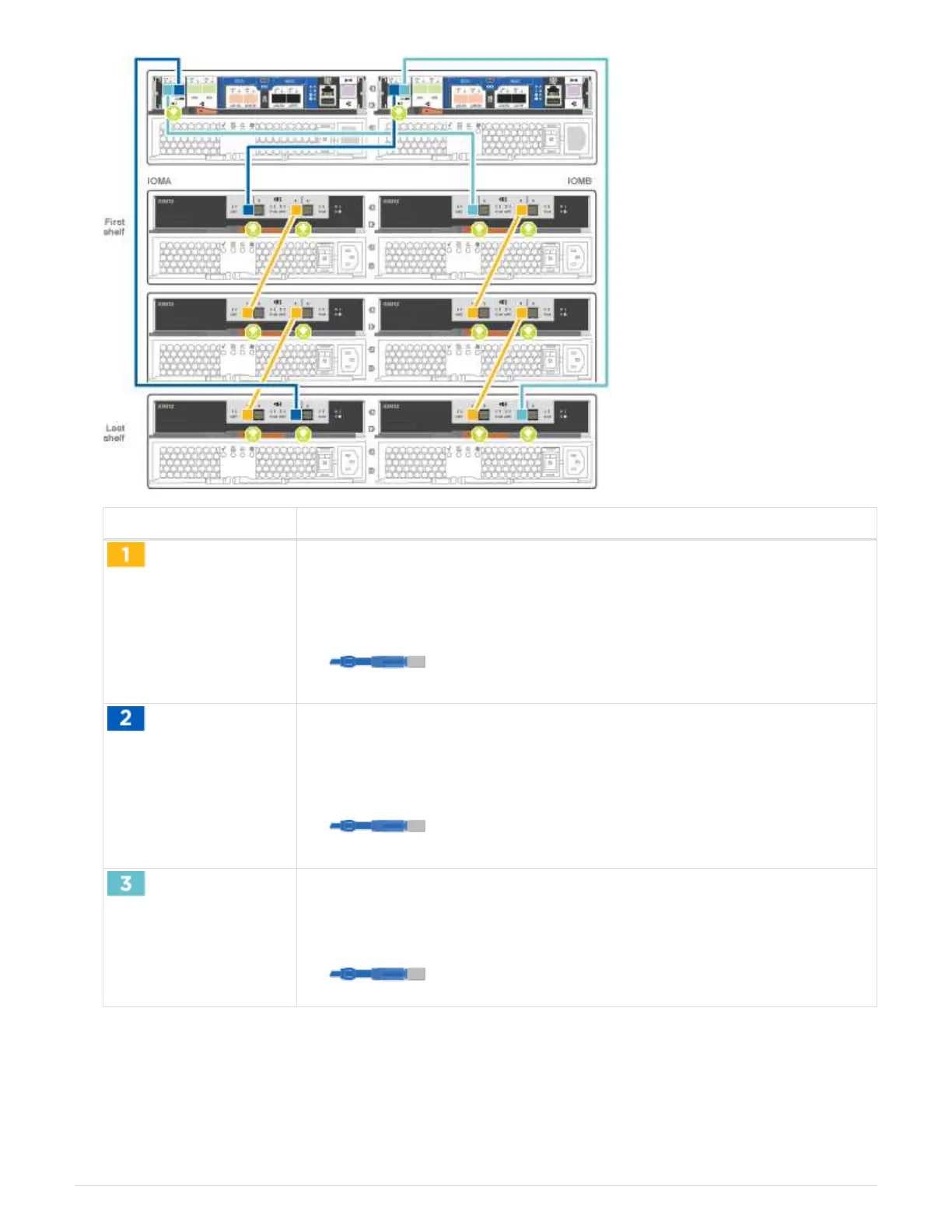

• Port 3 on IOM A to port 1 on the IOM A on the shelf directly below.

• Port 3 on IOM B to port 1 on the IOM B on the shelf directly below.

mini-SAS HD to mini-SAS HD cables

Connect each node to IOM A in the stack.

• Controller 1 port 0b to IOM A port 3 on last drive shelf in the stack.

• Controller 2 port 0a to IOM A port 1 on the first drive shelf in the stack.

mini-SAS HD to mini-SAS HD cables

Connect each node to IOM B in the stack

• Controller 1 port 0a to IOM B port 1 on first drive shelf in the stack.

•

Controller 2 port 0b to IOM B port 3 on the last drive shelf in the stack.

mini-SAS HD to mini-SAS HD cables

If you have more than one drive shelf stack, see the Installation and Cabling Guide for your drive shelf

type.

Installing and cabling

2. To complete setting up your system, see Completing system setup and configuration
