As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.

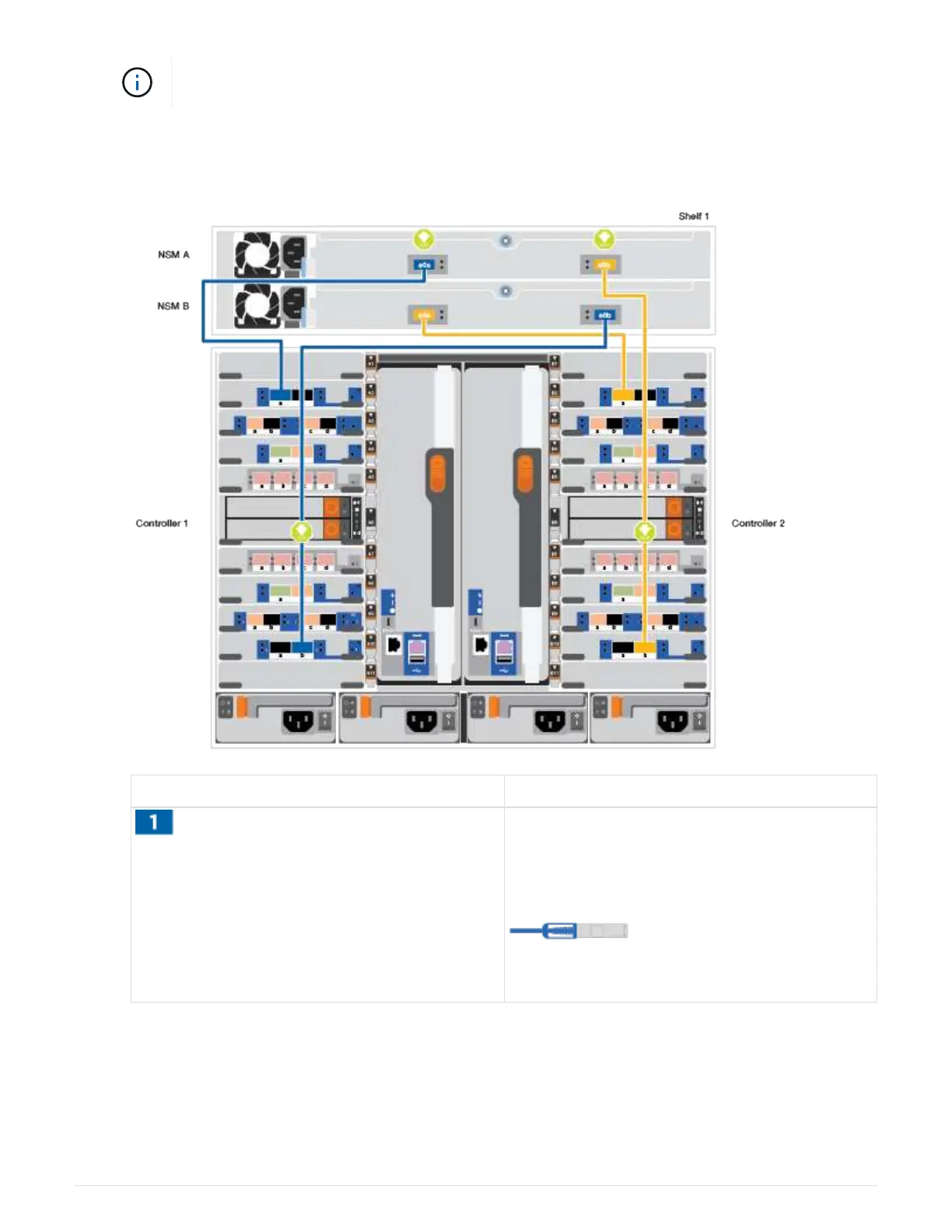

1. Use the following animation or drawings to cable your controllers to a single NS224 drive shelf.
Animation—Cabling a single NS224 shelf
Step Perform on each controller
• Connect controller A port e2a to port e0a on
NSM A on the shelf.
• Connect controller A port e10b to port e0b on
NSM B on the shelf.
100 GbE cable
9
