Step 2: Remove the controller module
To access components inside the controller module, you must remove the controller module from the chassis.
You can use the following animations, illustration, or the written steps to remove the controller module from the
chassis.
Animation - Remove the controller module

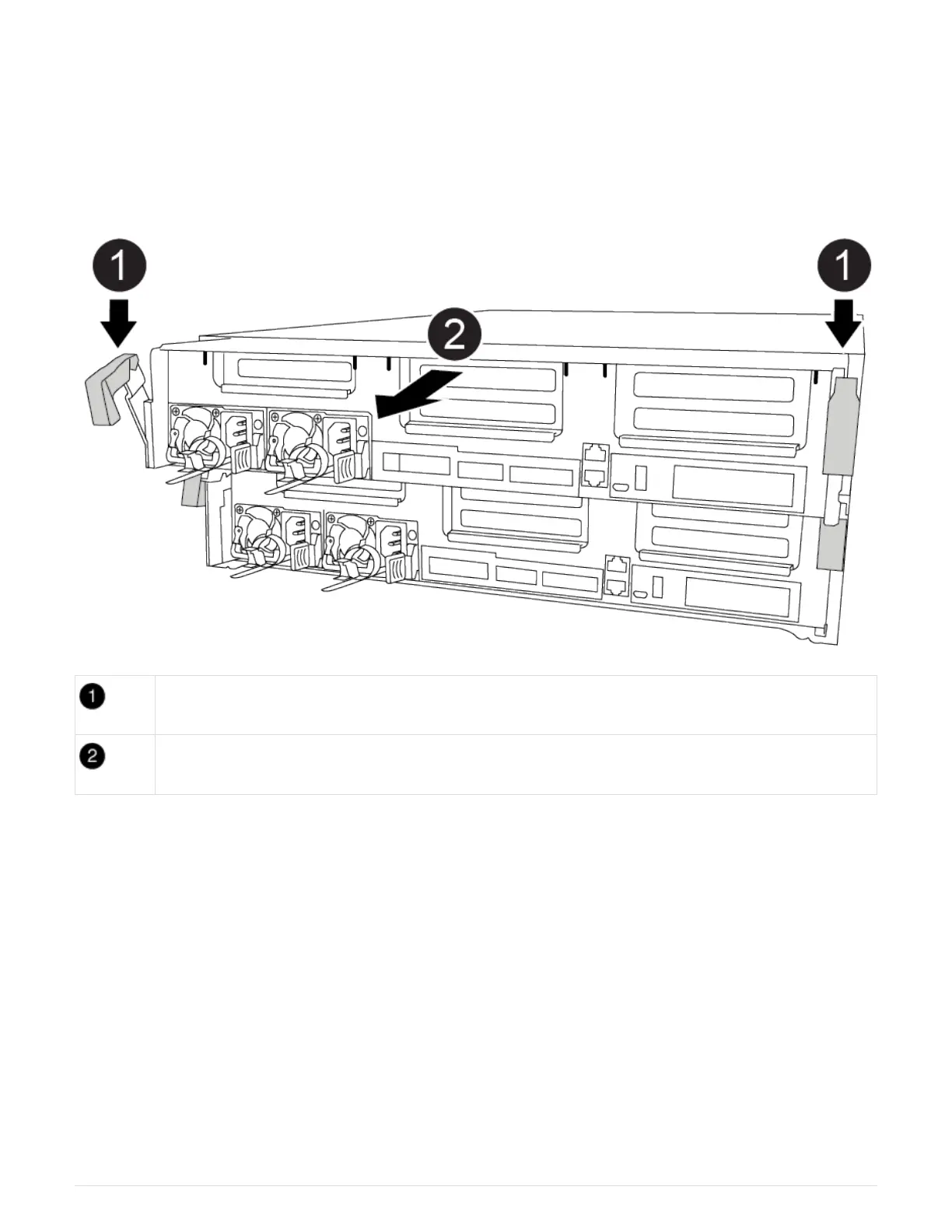

Locking latches
Controller moves slightly out of chassis
1. If you are not already grounded, properly ground yourself.
2. Release the power cable retainers, and then unplug the cables from the power supplies.
3. Loosen the hook and loop strap binding the cables to the cable management device, and then unplug the
system cables and SFPs (if needed) from the controller module, keeping track of where the cables were
connected.
Leave the cables in the cable management device so that when you reinstall the cable management
device, the cables are organized.
4. Remove the cable management device from the controller module and set it aside.
5. Press down on both of the locking latches, and then rotate both latches downward at the same time.
The controller module moves slightly out of the chassis.
6. Slide the controller module out of the chassis.
75
