Option 1: Two-node switchless cluster
The management, Fibre Channel, and data or host network ports on the controller modules are
connected to switches. The cluster interconnect ports are cabled on both controller modules.
Before you begin
• Contact your network administrator for information about connecting the system to the switches.

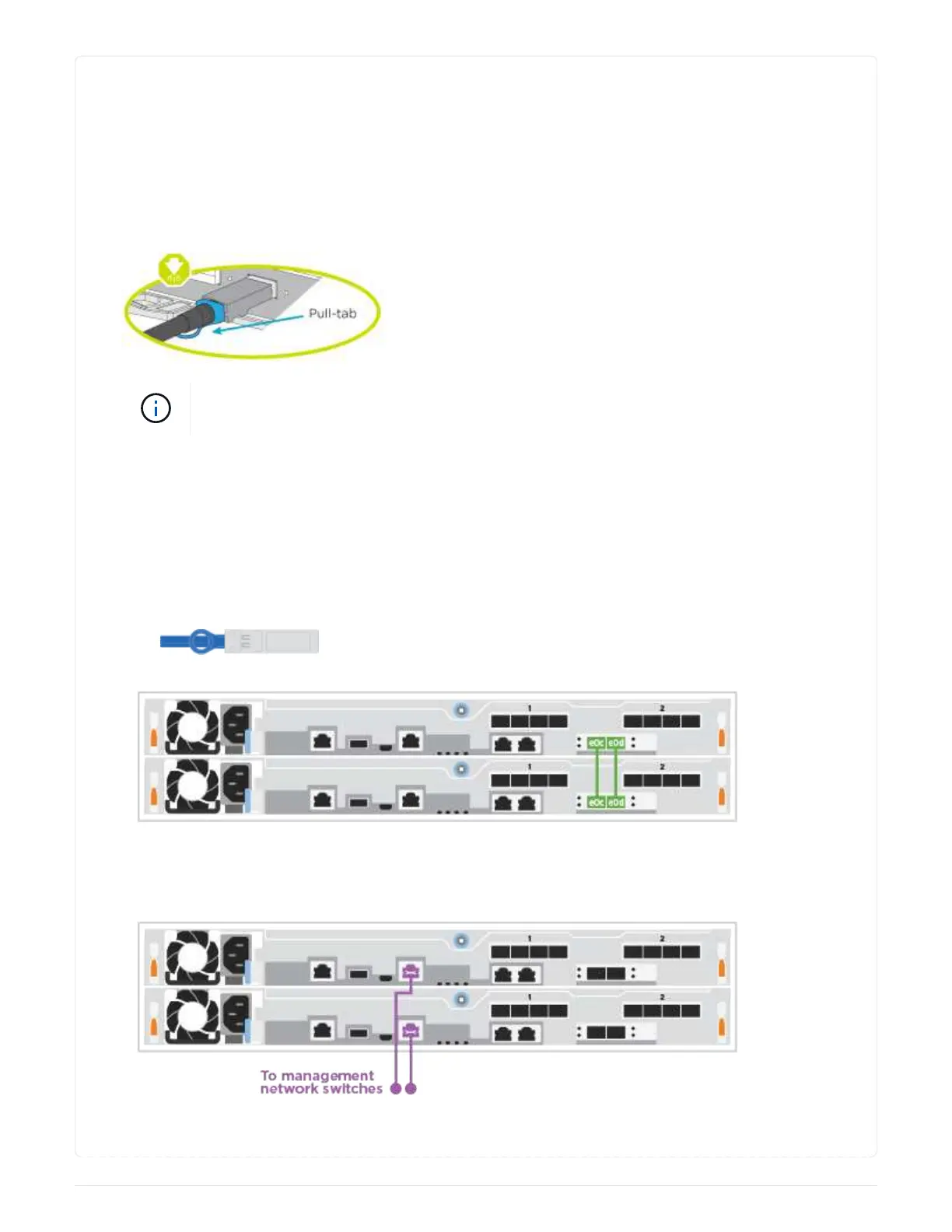

• Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
About this task
Use the animation or the tabulated steps to complete the cabling between the controllers and the
switches. Perform the steps on each controller.
Animation - Cable a two-node switchless cluster
Steps
1. Cable the cluster interconnect ports e0c to e0c and e0d to e0 with the 25GbE cluster interconnect
cable
:
2. Cable the wrench ports to the management network switches with the RJ45 cables.
5
