DO NOT plug in the power cords at this point.
Option 2: Switched cluster
All ports on the controllers are connected to switches; cluster interconnect, management, Fibre Channel,
and data or host network switches.
Before you begin
• Contact your network administrator for information about connecting the system to the switches.

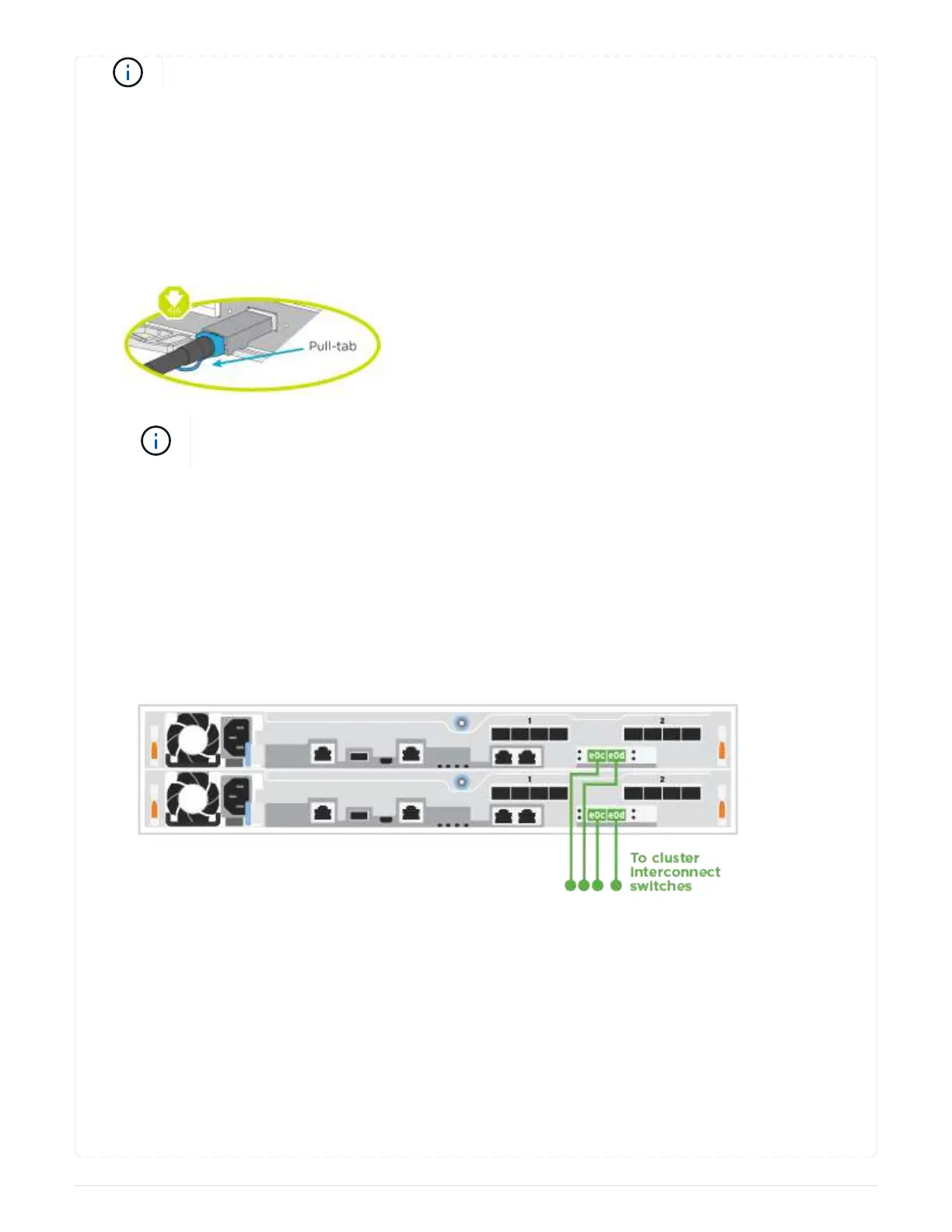

• Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
About this task
Use the animation or the tabulated steps to complete the cabling between the controllers and the
switches. Perform the steps on each controller.
Animation - Cable a switched cluster
Steps
1. Cable the cluster interconnect ports e0c and e0d to the 25 GbE cluster interconnect switches.
2. Cable the wrench ports to the management network switches with the RJ45 cables.
6
