As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps

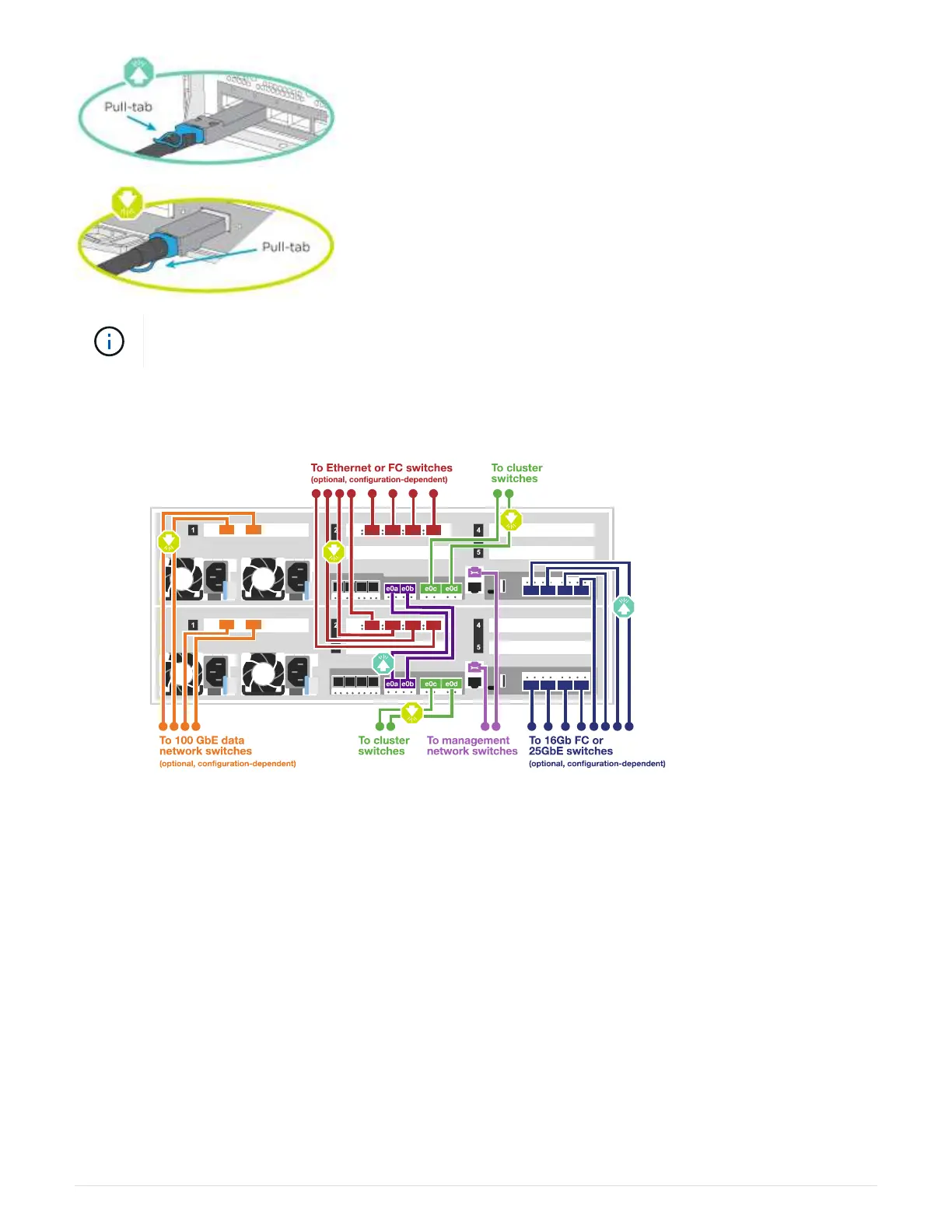

1. Use the illustration to complete the cabling between the controllers and the switches:
2. Go to Step 4: Cable controllers to drive shelves for drive shelf cabling instructions.
Step 4: Cable controllers to drive shelves
The following options show you how to cable one or two NS224 drive shelves to your
system.
Option 1: Cable the controllers to a single drive shelf
You must cable each controller to the NSM modules on the NS224 drive shelf.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab for
the NS224 are up.
6
