Product ManualXG-7100
Also create any necessary firewall rules under Firewall -> Rules.

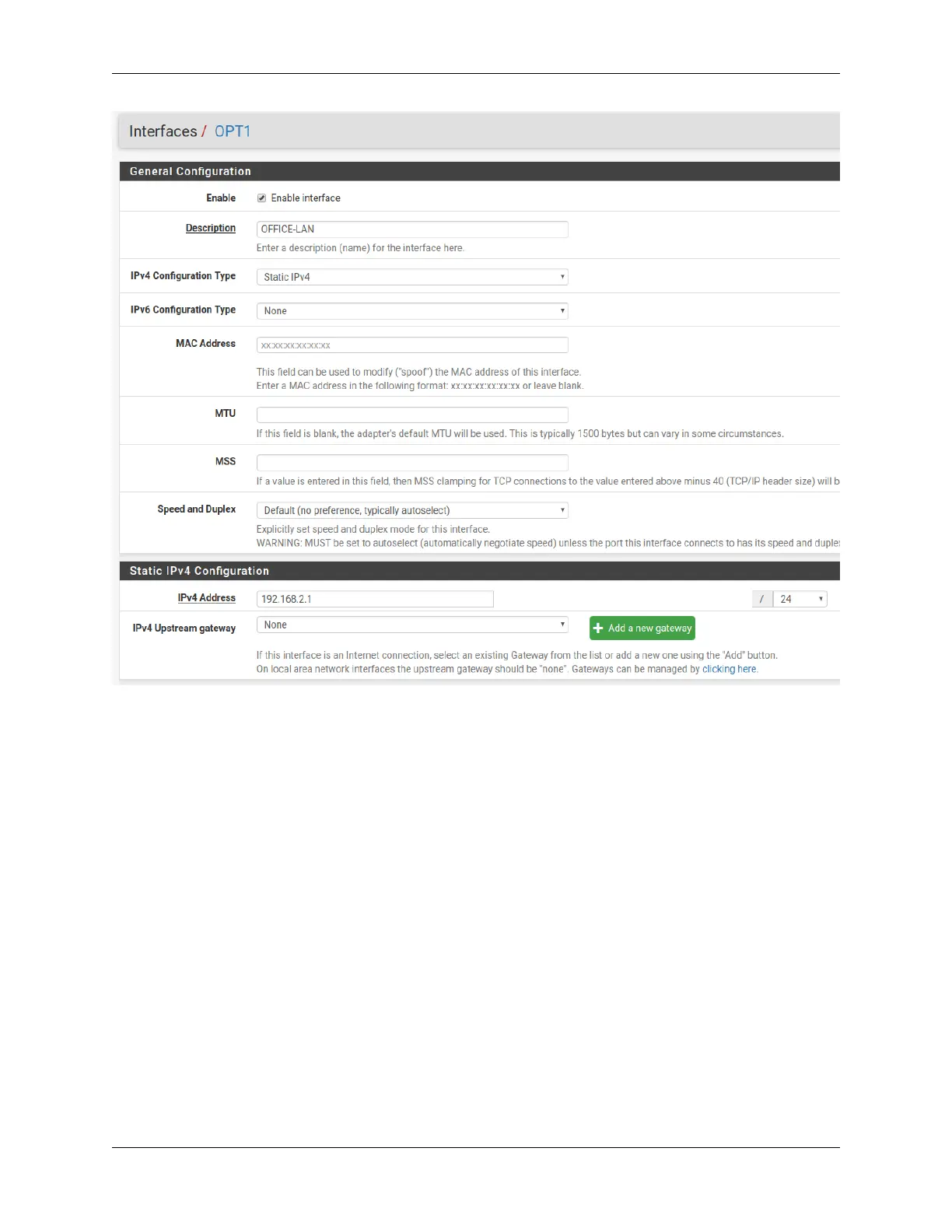

Now that pfSense knows of this new VLAN network, configure the switch so that ETH1-4 use the new network. To do
this, go to Interfaces -> Switches -> VLANs and click the Add Tag button. Input the VLAN tag for the new network
(same as the VLAN ID configured in the previous steps) and add ETH1-4 and PORT9-10 (uplinks) as members. Be
sure 9 and 10 are marked as tagged:
2.5. Switch Configuration Examples 20
