Product ManualXG-7100
From the operating systems perspective, there are four physical interfaces present:
ix0 - 10Gbps SFP+
ix1 - 10Gbps SFP+
ix2 - 2.5 Gbps (2500-Base-KX, switch link to SoC/CPU)
ix3 - 2.5 Gbps (2500-Base-KX, switch link to SoC/CPU)
2.2 Switch LAGG
ix2 and ix3 (switch uplink ports 9 and 10), are configured as a load-balanced LAGG. This provides an aggregate uplink

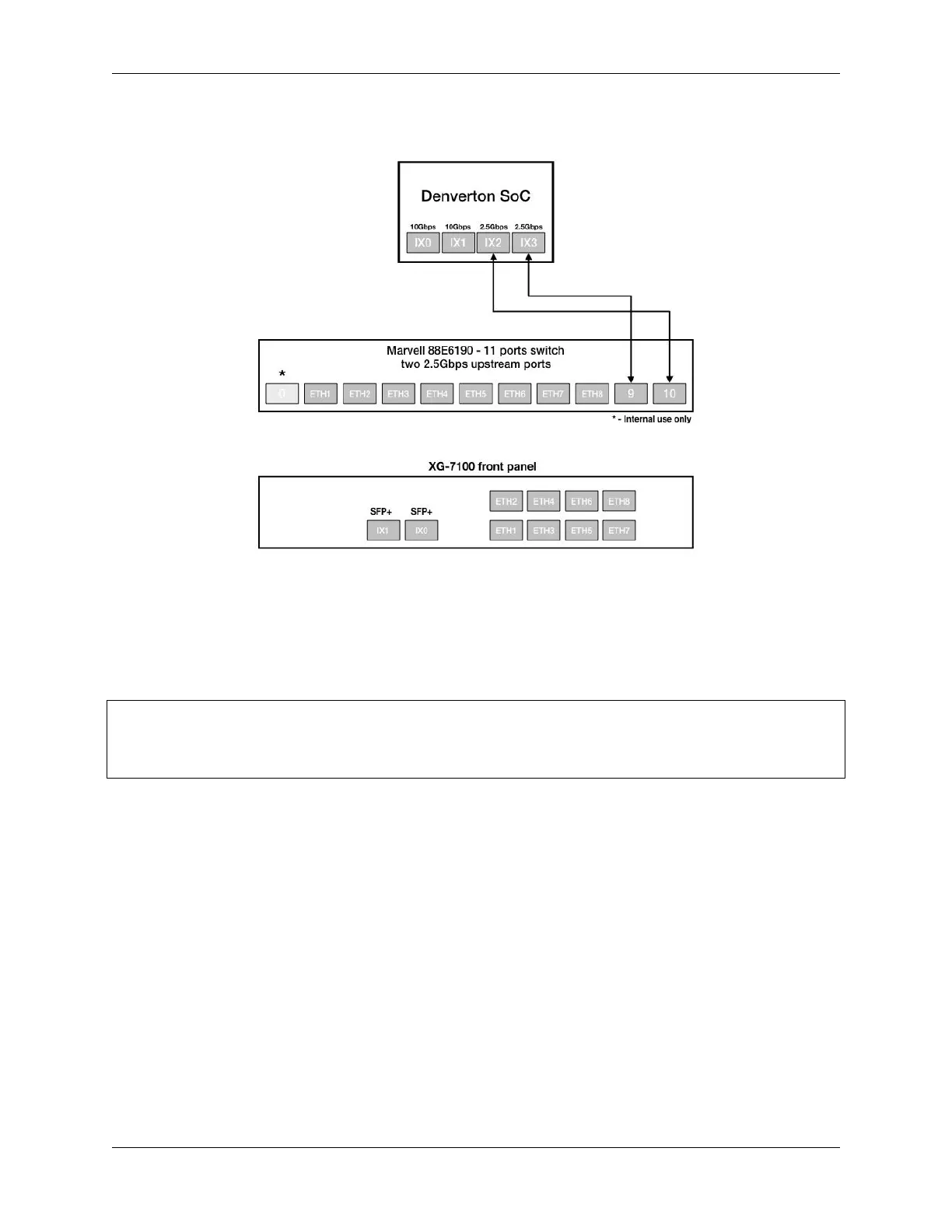

capable of 5Gbps for ethernet switchports ETH1-8. This is further demonstrated in the diagram below:
2.2. Switch LAGG 5
