User manual
Check hydraulic oil level

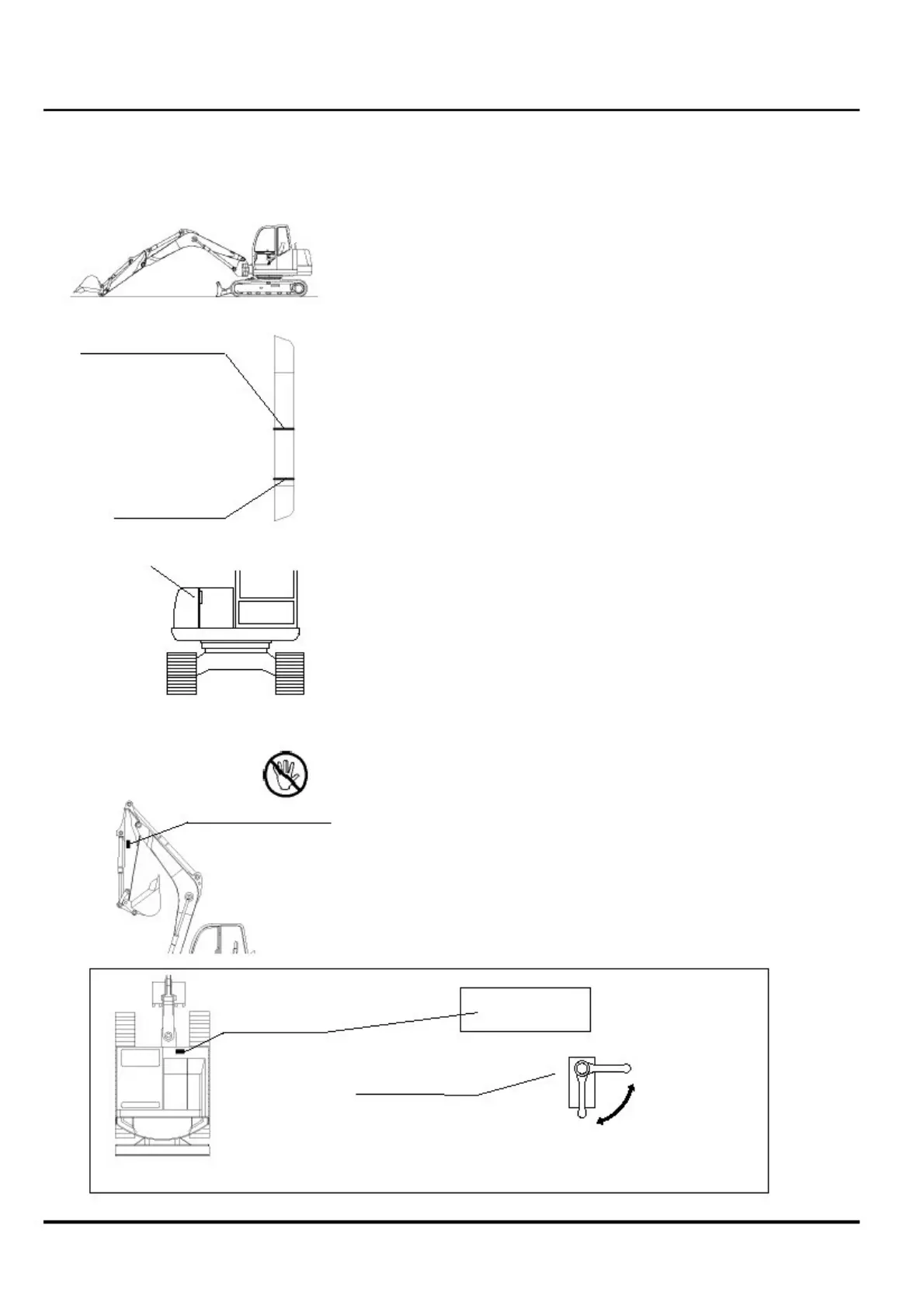

Position of arm while checking hydraulic oil
level:
- Excavator should be on level ground
- Extend arm
- Extend bucket (bucket cylinder fully
retracted)
- Completely retract bucket stick cylinder
- Lower dozer blade
- Turn off engine
Check the hydraulic-oil level in the indicator (visible by opening
the valve
cover)
The oil level should be between the black and
red marks.
Refill hydraulic oil as necessary
Indicator
Black mark
Red mark
Hydraulic connections for additional attachments
CAUTION: See also Exclusion of warranty (1.2.3). Changes of
hydraulic settings must be approved by NEUSON and must
done by a specialist.
Hydraulic connections for supplying additional attachments are
located
on the left and right side of the bucket sticket.
The hydraulics supply for additional attachments can be
activated by
turning the lever on distributor block.
Hydraulic connections
Distributer block
CLOSED
lever
OPEN
Hammer
operation
9707672_user manual_en
- 32 -
