10 Excavating options
10.1 Digging
Optimal stability while excavating
Place the dozer blade against the ground for additional
stability.
The dozer blade can be lowered using the dozer blade lever
located on the right side of the driver's seat.

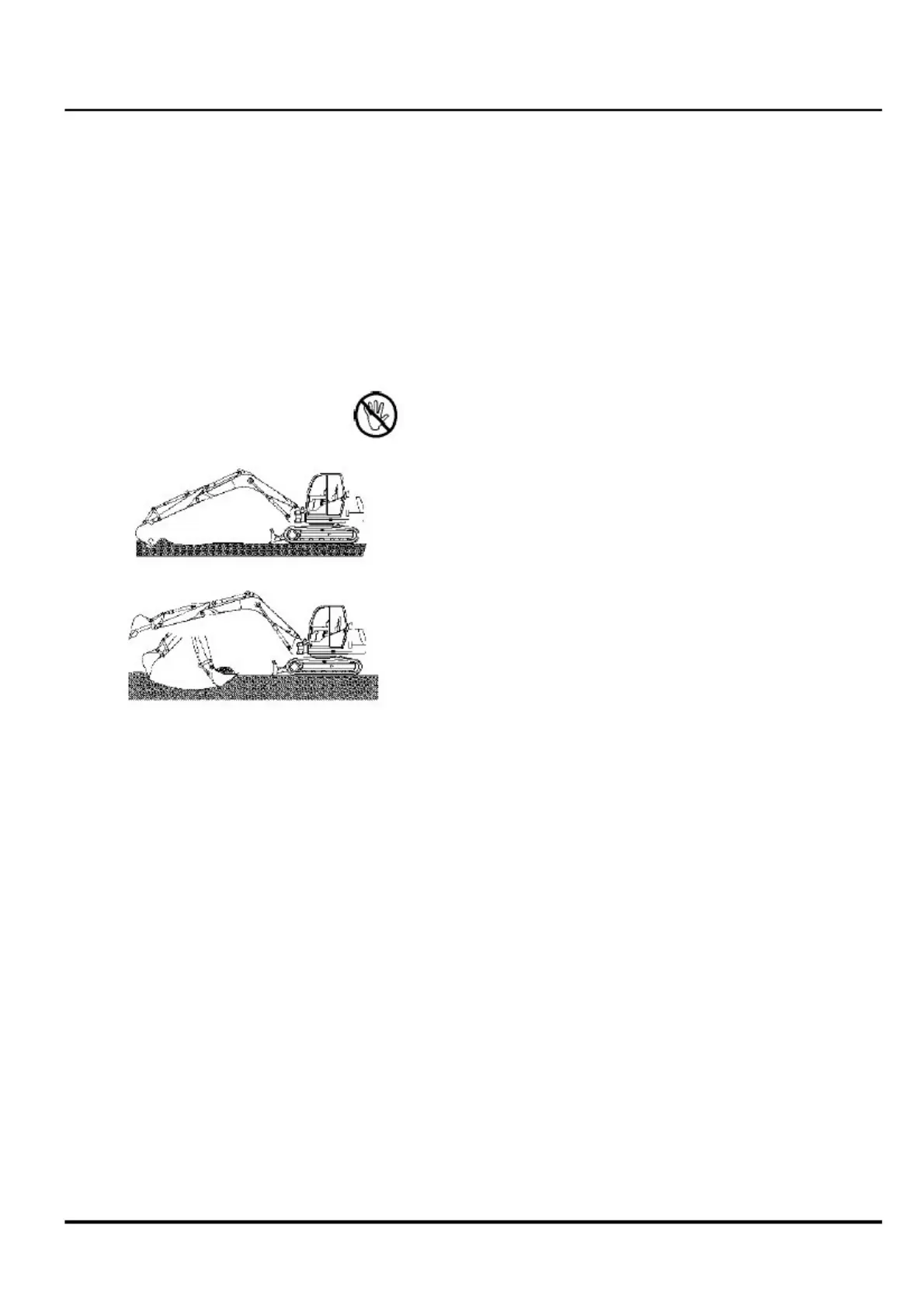

Never dig under the vehicle. When excavating in or
near
excavated areas, ensure that the walls are well
supported!
CAUTION: Risk of Collapse
In order to obtain maximum performance, the excavator
arm
should not be fully extended.
Remove the excavated material with long, flat movements
of the
excavator arm.
10.2 Excavator arm swing angle
The excavator arm can be swung 50° to the right and 80° to
the left
from its basic position. This makes excavation of trenches
along
walls, fences, etc. possible. It is under certain circumstances
possible that the offset cylinder stops while moving the
function
offsetting. This can occur if both the dipper stick and the
bucket are
fully activated. The function offsetting is mostly used in
confined
areas instead of cab rotation. Since in confined areas the
function
of the arm system is hardly ever fully activated, if so only in
extraordinary circumstances which do not distract the
complete
function of the machine.
