Supplementary Sheet
For Neuson Compact Excavators
0.1
Working at ditches
Warning!
When working at ditches, slopes, etc., the piston rod A at the boom
cylinder
may get damaged because of inexpert handling of the dozer blade
and the
boom.
B

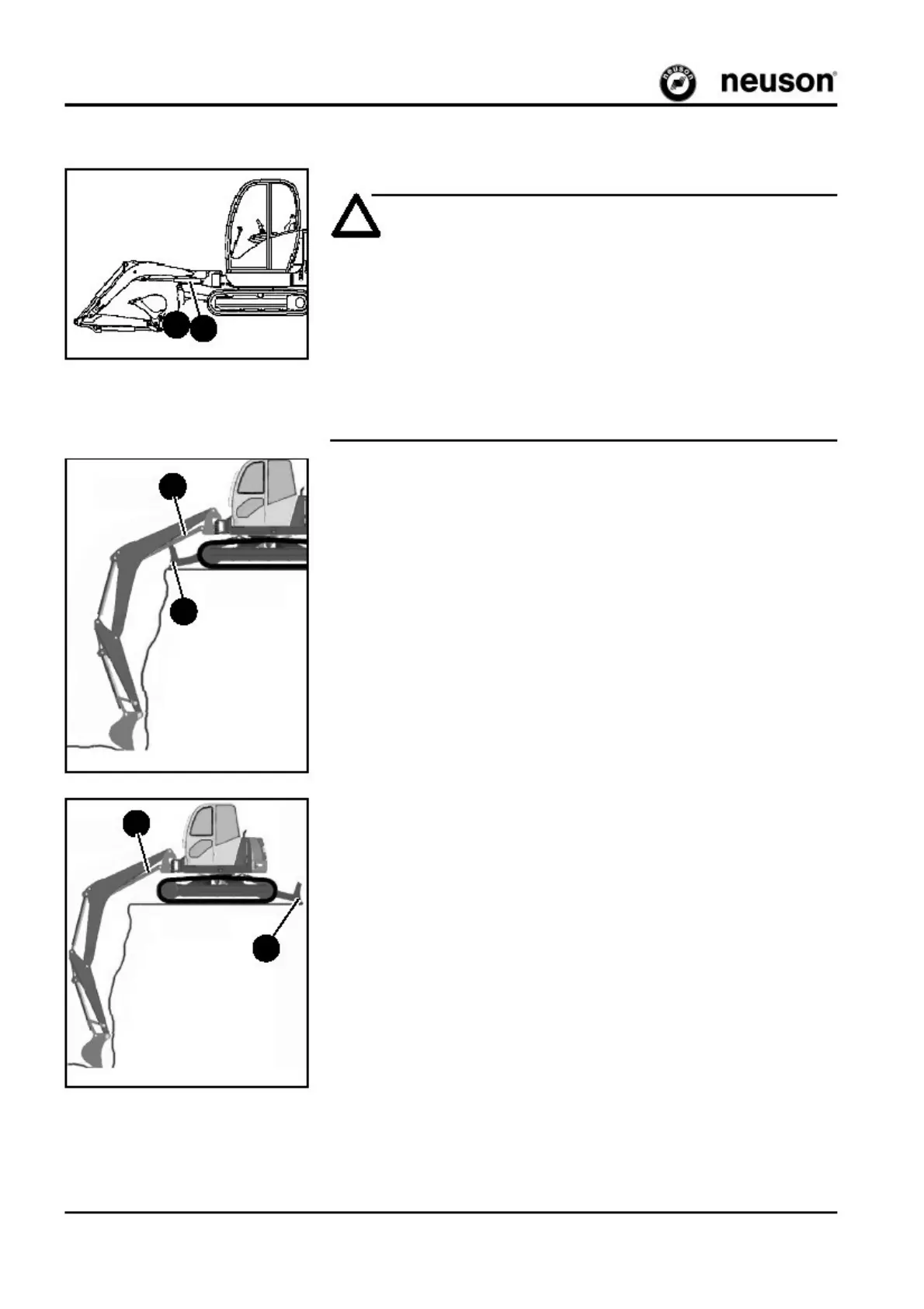

Fig. 66: Working at ditches
A
☞Always support the excavator on the dozer blade B during digging
☞Make sure that the dozer blade B never touches the piston rod A
Fig. 66
☞In case of deep excavation with the dozer blade B in front make
sure that
the piston rod A never weights down on the dozer blade B
Fig. 67
the rear Fig. 68
☞In case of deep excavation always work with the dozer blade B
pointing to
☞In case of deep excavation don’t work with the dozer blade B pointing to the
front avoid
A
that the piston rod A weights down on the dozer
blade B.
B
wrong
Fig. 67: Deep excavation
A
☞In case of deep excavation work with the dozer blade B pointing to
the rear.
➥ Thus the piston rod A cannot weigh down on the dozer blade B.
B
correct
Fig. 68: Dozer blade pointing to the rear
