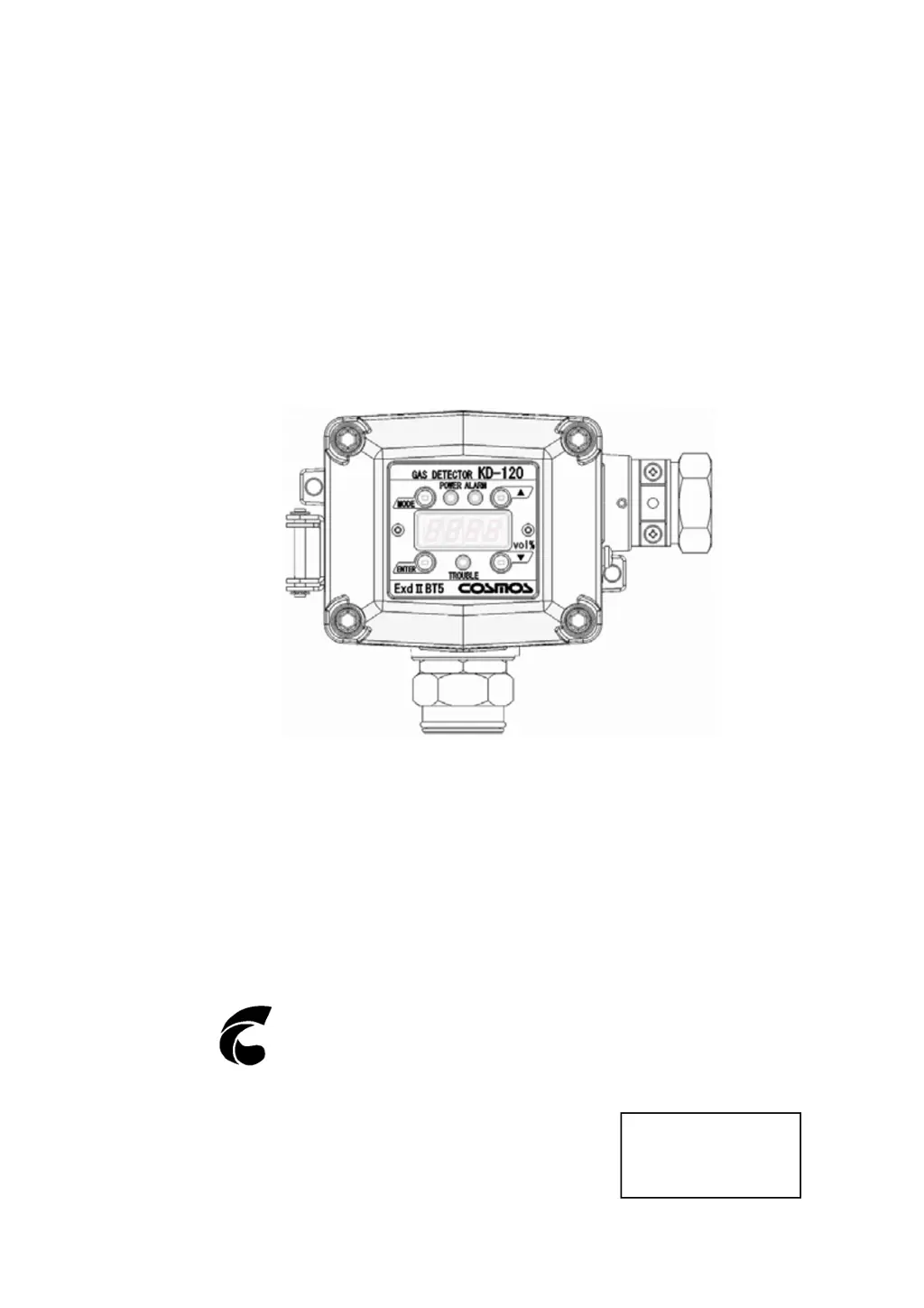

Diffusion Oxygen Detector

Model KD-12O

Instruction Manual

z Keep this instruction manual where it is readily accessible.

z Thoroughly read this instruction manual before using the equipment so it can be used

safely and correctly.

z This manual provides information concerning standard specifications. If the specifications

of your model are nonstandard, refer to the delivery specifications.

Instruction Manual No.

GAE-036-00

May 2010

New Cosmos Electric Co., Ltd.

Questions and Answers:

A
amygarciaAug 3, 2025
What to do if New Cosmos Electric KD-12O Security Sensors value and are flashing alternately?
- C
  Christopher HuntAug 3, 2025
  If a value and are flashing alternately, it could be due to two reasons: * The sensor output is high, meaning the gas concentration exceeds the full scale. In this case, check the ambient environment. * The sensor and sensor connector are not inserted properly, or the sensor is connected backward. Ensure the sensor and connector are correctly inserted.
J
Jeffery WrightAug 7, 2025
Why is there no alarm contact output from my New Cosmos Electric KD-12O Security Sensors?
- J
  Julie SchultzAug 8, 2025
  The absence of an alarm contact output could be due to several reasons: * The product might be in maintenance mode. If so, return the product to gas monitor mode. * There could be an incorrect wiring connection. Check and reconnect the wiring. * The alarm point setting might be wrong. Verify and correct the alarm setting.
M
melissawilsonAug 12, 2025
What to do if the yellow error lamp is flashing on New Cosmos Electric KD-12O?
- Q
  qwoodsAug 12, 2025
  If the yellow error lamp is flashing, it indicates a low-voltage state. Check the power supply voltage to resolve this issue.
E
Eric Hanson MDAug 17, 2025
Why doesn't the analog signal change on my New Cosmos Electric KD-12O Security Sensors?
- G
  ghendersonAug 17, 2025
  If the analog signal does not change, the product may be in test mode. Return the product to gas monitor mode.
