E135SR(
LC)
E135SR
L

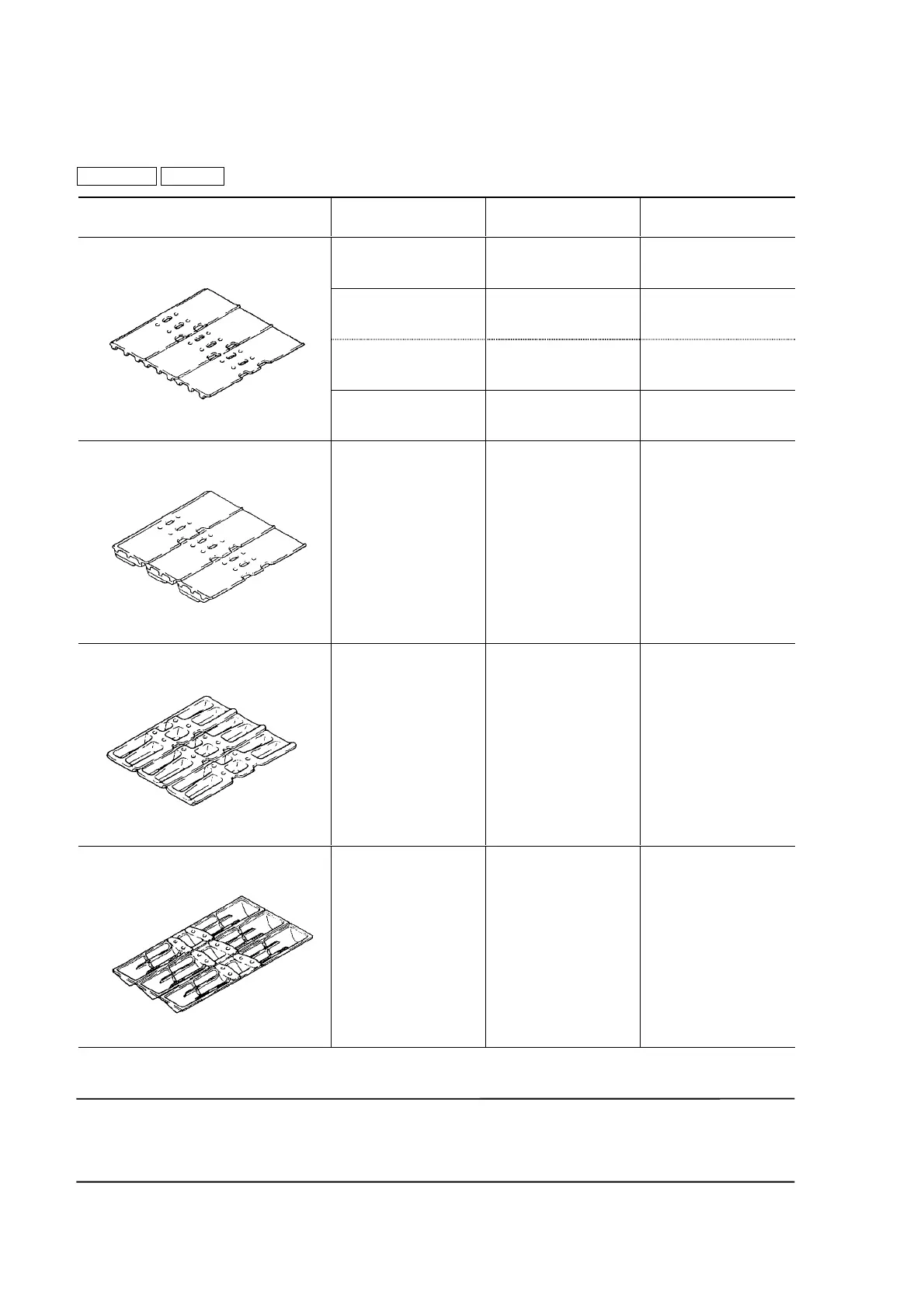

Shape Shoe width mm (in)
Overall width of
crawler mm (ft-in)
Ground pressure
kgf /cm
2
(psi)
500 (20) 2,490 (8′2″) 0.43 (6.12)
600 (24) 2,590 (8′6″) 0.36 (5.1)
700 (28) 2,690 (9′0″) 0.32 (4.49)
Grouser shoe
44 links
800 (32) 2,790 (9′2″) 0.30 (4.3)
Rubber pad shoe
44 links
500 (20) 2,490 (8′2″) 0.44 (6.26)
Flat shoe
44 links
500 (20) 2,490 (8′2″) 0.43 (6.12)
Triangle shoe
44 links
800 (32) 2,790 (9′2″) 0.28 (3.98)
2-14
6. TYPE OF CRAWLER
NOTE :
Use grouser shoes 500mm (20in) or 600mm (24in) on rough ground (areas covered with rocks and gravel). I
you drive or excavate with other shoes, this may cause shoe bending, shoe bolt looseness, and track
assembly (link, roller, etc.) damage.
