Rotate the middle upright tube up 90
degrees. Use Multi wrench (106) to lock
into position above the main frame using
M8 bolt (44), flat washer (66) and M8
nut (62) to secure through the side hole
using the Allen Key #5. Following this,
use M8 bolt (50), and flat washer (66) to
secure through the front hole using the
Allen Key #5.

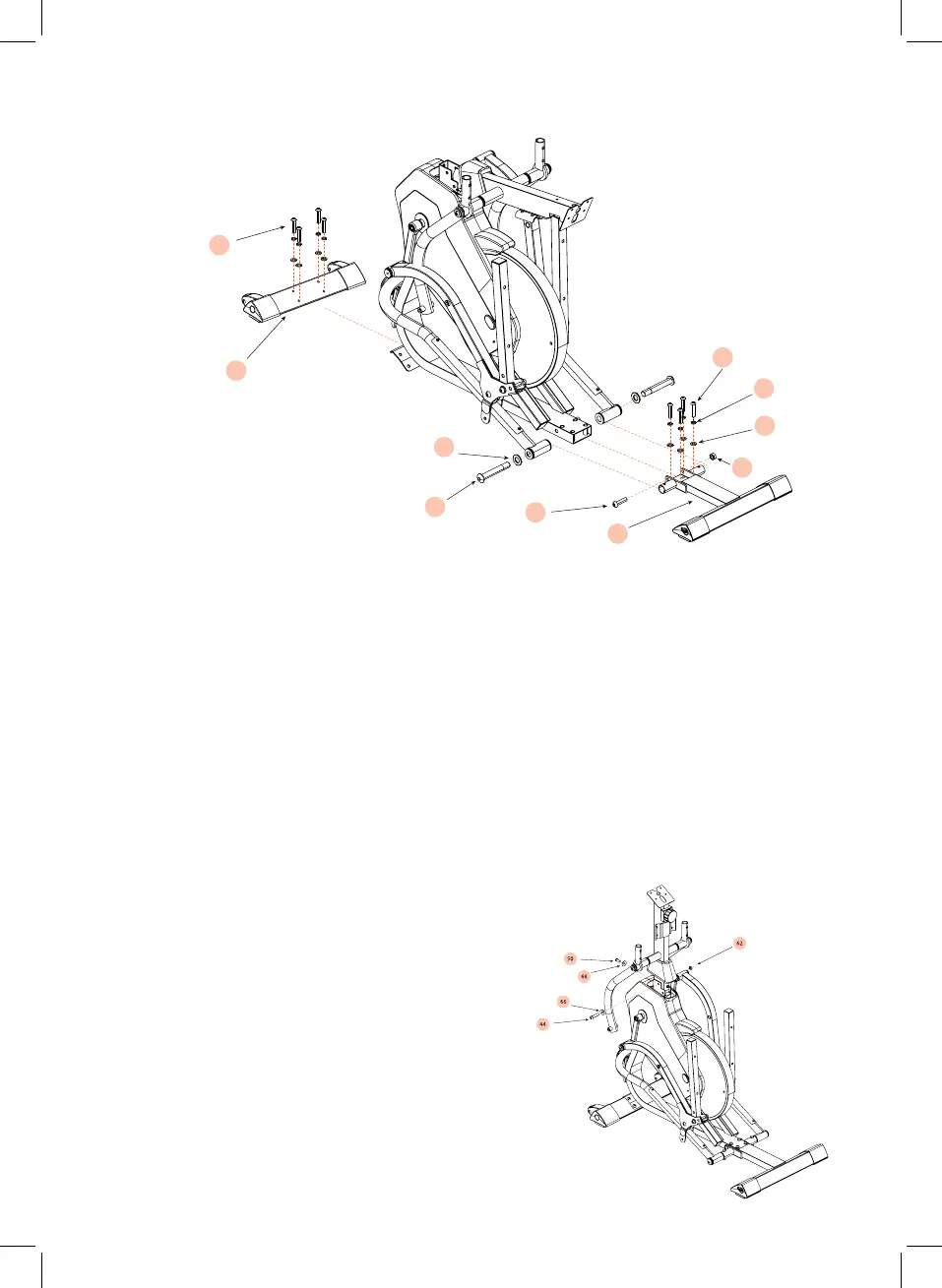

Step 3
Using the supplied
Allen Key #5 (105), lock the front
stabiliser leg on to the main frame by inserting
the 4 Spring washers (73), Flat washers (66) & M8 Bolts (50)
Using the Allen Key #5 again, lock on the rear stabiliser leg by inserting
4 spring washers (73), Flat Washers (66) and M8 Bolts (51)
Next, lock the side of the rear stabiliser leg using Allen Key #6 (104) to
tighten M10 Bolt (46) & Nut (63) through the respective hole. Ensure these are
tightly fastened.
Finally, Take the 2 M16 bolts (59) & M16 Washers (96) and insert through
the tubular part of main frame (A) and the corresponding tube of the rear
stabiliser leg (B).
Using Allen Key #8 (114), Tighten each of the bolts securely.
Step 2
B
66
73
51
51
C
46
63
59
96
