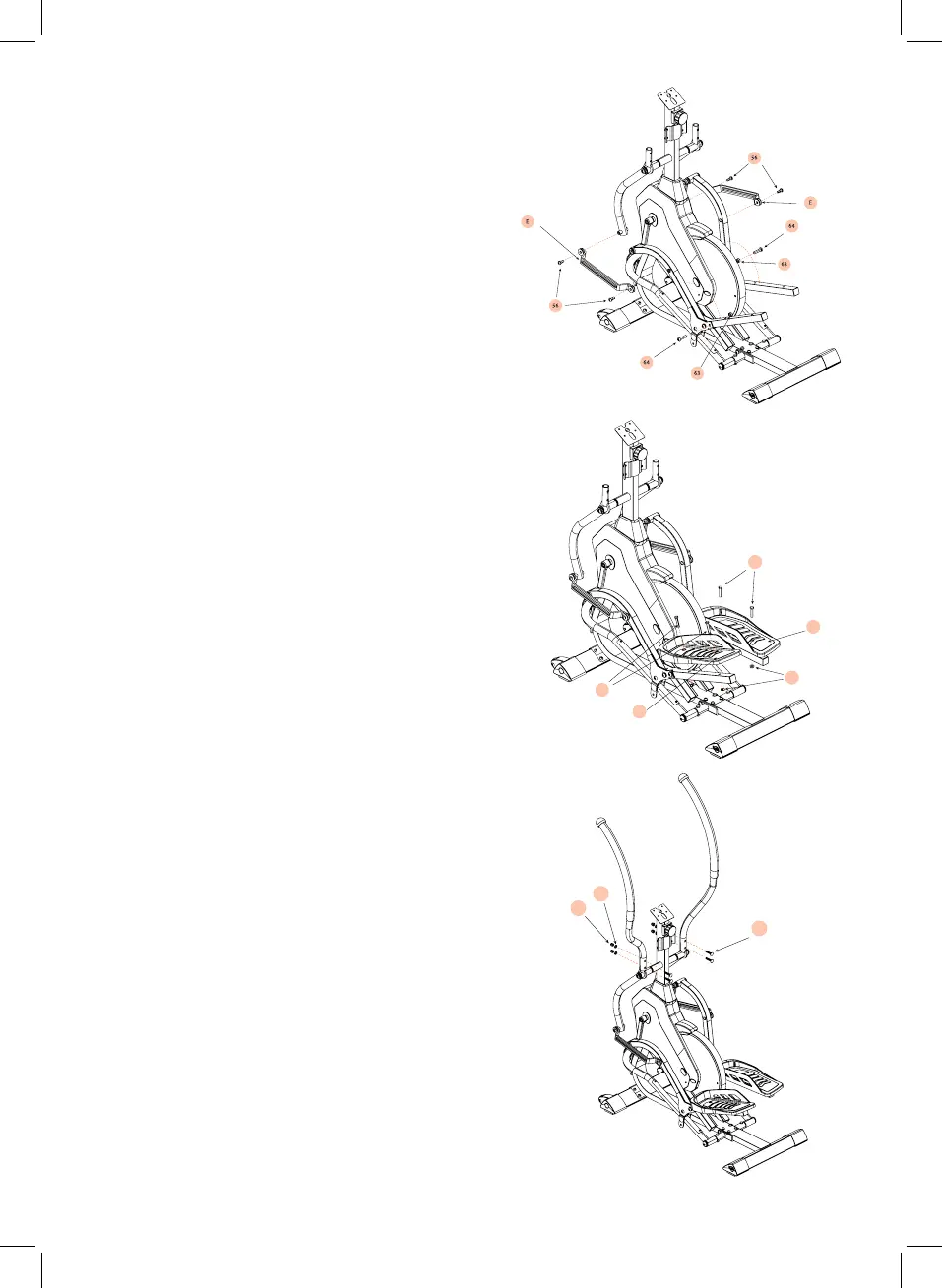

Using Allen Key #6, lock the connector bars
(E) to the corresponding moving handle bar
and pedal frame with the 4 M8 bolts (56)
Unfold the pedal bars until they are at a
90 degree angle. Using Allen Key #6 (104)
and Multi Wrench (106) lock the pedals into
place using M10 Bolt (64) and M10 nut (63).
Put the left pedal (16) on top of the pedal
tube and align holes. Use M8 Bolts (49)
to insert through holes and secure with M8
Nuts (62).
Repeat the same process using the right
pedal (17) and 2 M8 bolts (49) and nuts (62)
on the opposite side.
Use Multi Wrench (106) to tightly secure
the nuts.
Insert the Left (F) & Right (G) handle bars
onto the swinging handle bars. Using the
supplied multi wrench, lock the 4 M8 Bolts
(82), Curved Washers (83) and M8 nuts (80)
and tightly secure.
Step 4
Step 5
Step 6
49
17
62
49
16
82
80
83
To Next Page
