5

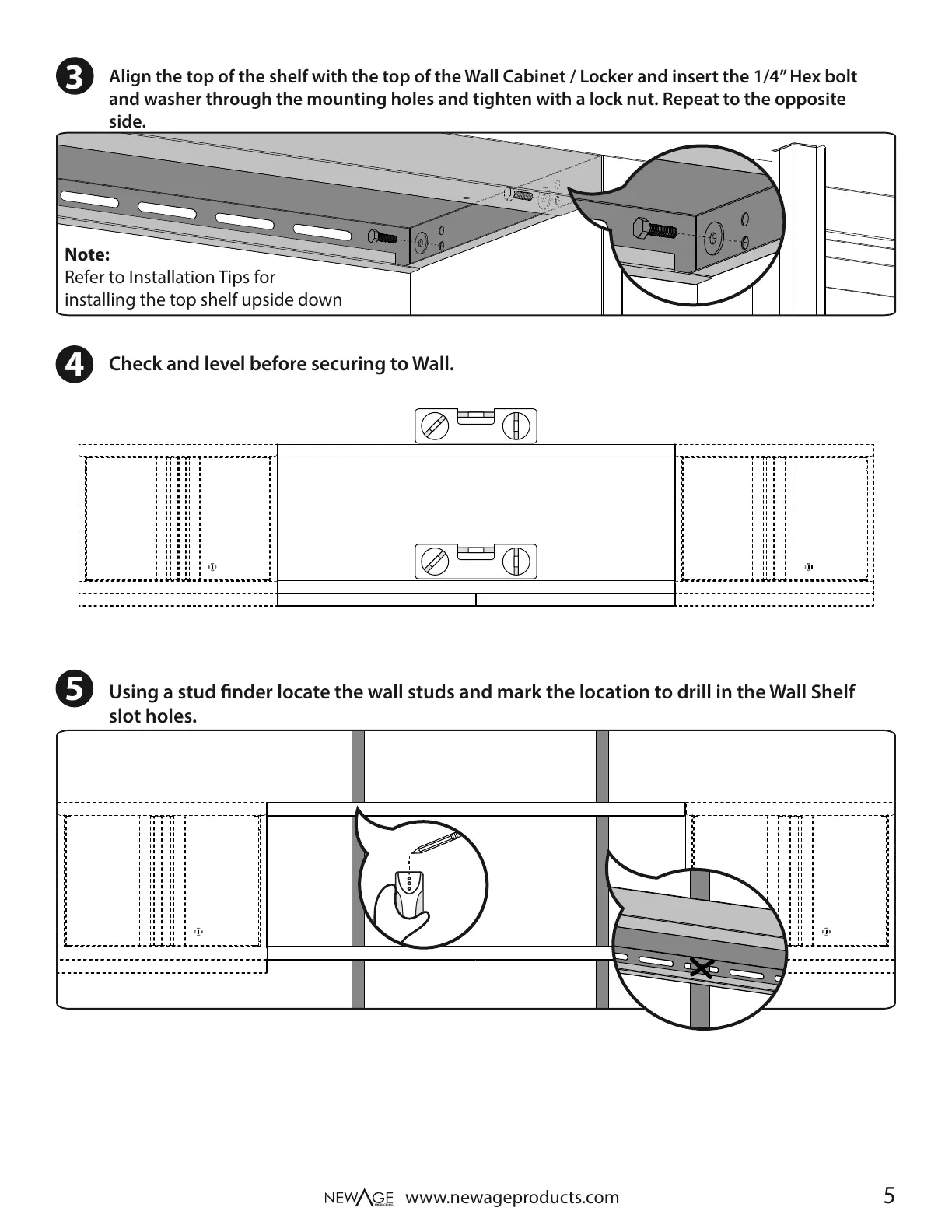

Align the top of the shelf with the top of the Wall Cabinet / Locker and insert the 1/4” Hex bolt
and washer through the mounting holes and tighten with a lock nut. Repeat to the opposite
side.
Using a stud finder locate the wall studs and mark the location to drill in the Wall Shelf
slot holes.
Check and level before securing to Wall.
www.newageproducts.com
5
4
3
Note:
Refer to Installation Tips for
installing the top shelf upside down
To Next Page
