6.2 Position of the lower mounting of the cylinder or adjustment bar of the backrest
The attached position of the cylinder or the manual adjusting bar of the backrest must be
adjusted depending on the depth of the seat. For this you need to ensure that the number of
free hole behind the base of the cylinder or the manual aadjusting bar backrest coincides with
the number of free hole on the base plate to the rear of the armrest support.

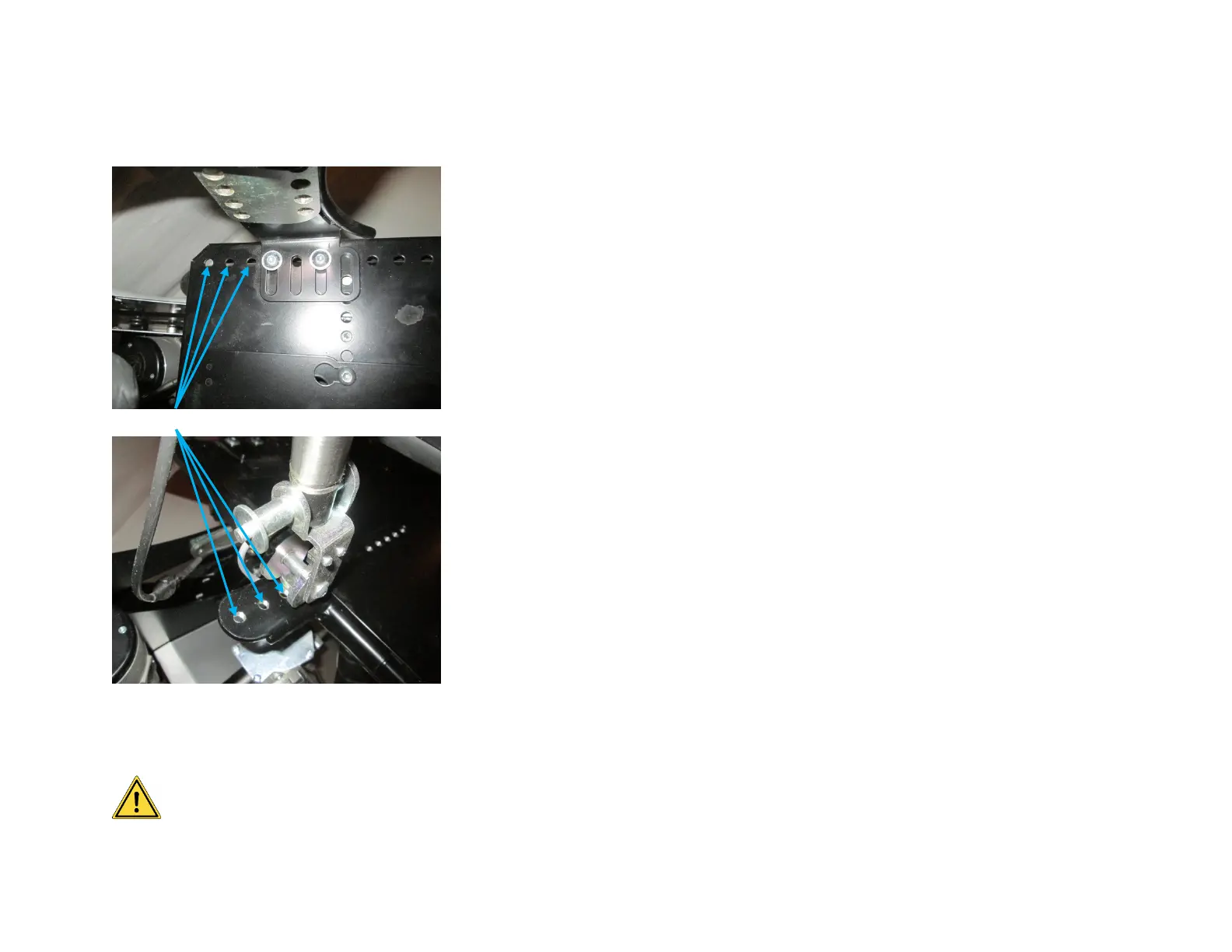

Example of a correct adjustment 3 and 3 free holes behind the support of the armrest and
behind the base of the cylinder.
Caution:
Improper positioning of the cylinder changes the security settings. Danger of injury and tipping!
